Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2440 SL005CABLE 5CON 24AWG SLATE SHLD 100' |
4,705 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 5 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.209" (5.31mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
M13582 SL005CABLE 2COND 14AWG SLATE 100' |
4,581 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 14 AWG | 19/0.0147" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.346" (8.79mm) | - | 100.0' (30.5m) | Slate | UL Style 2463 | - | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|

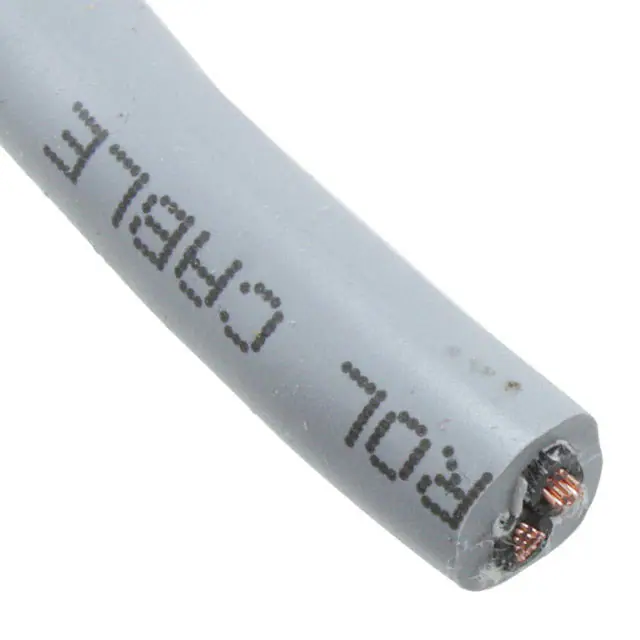

65802 SL005CABLE 2COND 18AWG SLATE 100' |
2,254 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.258" (6.55mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
M13312 SL005CABLE 12COND 22AWG SLATE 100' |
2,397 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 12 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.272" (6.91mm) | - | 100.0' (30.5m) | Slate | UL Style 2576 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
.JPG)
|
1177L SL005CABLE 7COND 22AWG SLATE 100' |
2,154 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 7 | 22 AWG | 7/30 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.209" (5.31mm) | - | 100.0' (30.5m) | Slate | - | - | 300 V | -20°C ~ 75°C | Communication, Control | 0.0250" (0.635mm) | Low Smoke Zero Halogen (LSZH) | - |
|
M33506 SL005CABLE 6COND 18AWG SLATE 100' |
1,951 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.288" (7.32mm) | - | 100.0' (30.5m) | Slate | UL Style 2509 | - | 300 V | -20°C ~ 80°C | - | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
E1003S.41.10CABLE 3COND 22AWG GRAY |
2,576 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Riser | 0.141" (3.58mm) | - | 1000.0' (304.8m) | Gray | ASTM B-3 | Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
M1604 SL005CABLE 4CON 28AWG SLATE SHLD 100' |
1,333 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.132" (3.35mm) | Braid | 100.0' (30.5m) | Slate | - | - | 600 V | -55°C ~ 105°C | - | 0.0130" (0.330mm) | Poly-Vinyl Chloride (PVC) | - |
|

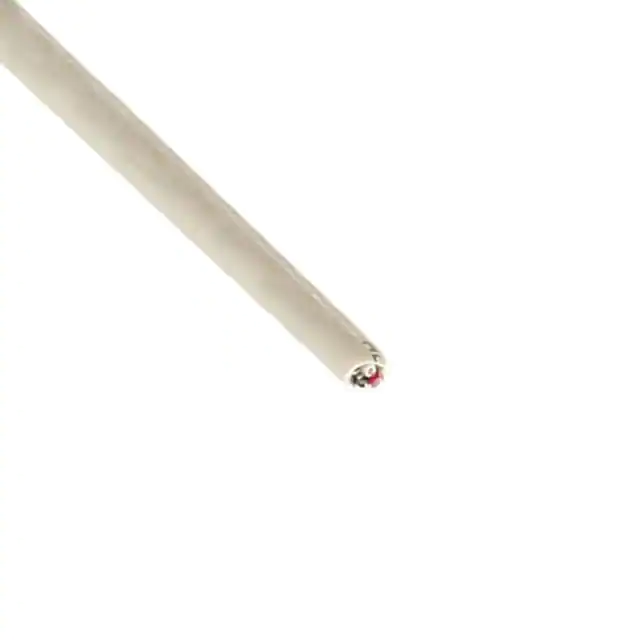

M1423 WH005CABLE 3CON 26AWG WHT SHLD 100' |
4,027 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.147" (3.73mm) | Braid | 100.0' (30.5m) | White | - | - | 600 V | -55°C ~ 105°C | - | 0.0142" (0.360mm) | Poly-Vinyl Chloride (PVC) | - |
|
IO-E4261S-5ECMR-1000BCABLE CAT5E 8CON 26AWG GRY 1000' |
1,728 |
|
Datasheet |
- | Bulk | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 26 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.307" (7.80mm) | Foil | 1000.0' (304.8m) | Gray | UL Style CMR | Drain Wire | - | -20°C ~ 75°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
1896/5C SL005CABLE 5COND 20AWG SLATE 100' |
3,078 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 5 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.230" (5.84mm) | - | 100.0' (30.5m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0200" (0.508mm) | Poly-Vinyl Chloride (PVC) | - |
|
M2403 SL005CABLE 3CON 28AWG SLATE SHLD 100' |
3,692 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.165" (4.19mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
E1022S.41.10CABLE 2COND 20AWG GRAY |
4,112 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 20 AWG | 7/28 | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC), Riser | 0.134" (3.40mm) | - | 1000.0' (304.8m) | Gray | ASTM B-3 | Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0080" (0.203mm) | Poly-Vinyl Chloride (PVC) | - |
|
6453 BK005CABLE 2COND 22AWG BLK SHLD 100' |
3,476 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.284" (7.21mm) | Foil, Braid | 100.0' (30.5m) | Black | - | Drain Wire | 300 V | -20°C ~ 60°C | - | 0.0420" (1.067mm) | High Density Polyethylene (HDPE) | - |
|
M13195 SL005MULTI-PAIR 12COND 24AWG 100' |
4,761 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.289" (7.34mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

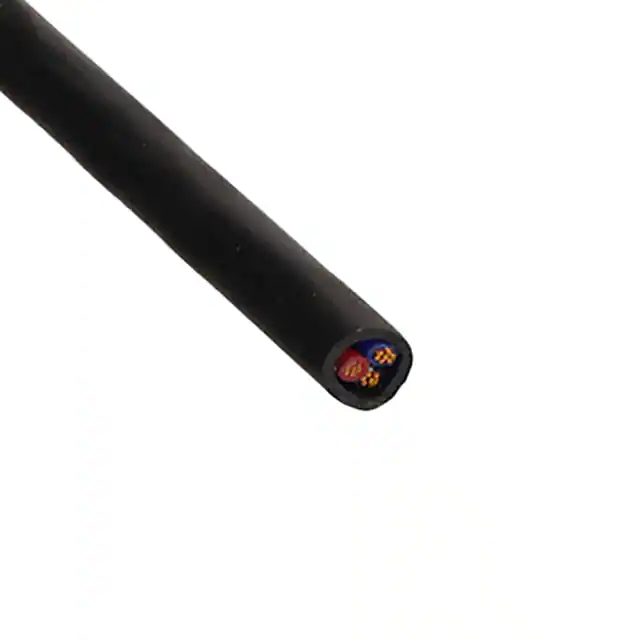

M3847 BK005CABLE 3COND 14AWG BLACK 100' |
1,190 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 14 AWG | 7/0.0242" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.345" (8.76mm) | - | 100.0' (30.5m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
M33828 BK005CABLE 3COND 16AWG BLK SHLD 100' |
1,941 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 16 AWG | 7/0.0192" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.317" (8.05mm) | Foil | 100.0' (30.5m) | Black | - | Drain Wire | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
1179C SL005CABLE 9COND 22AWG SLATE 100' |
3,658 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.246" (6.25mm) | - | 100.0' (30.5m) | Slate | - | - | 150 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
C2526A.18.10CABLE 3COND 22AWG GRAY SHLD |
2,526 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.196" (4.98mm) | Foil | 500.0' (152.4m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0300" (0.762mm) | Polyethylene (PE) | - |
|
882003 SL005CABLE 3COND 20AWG SLATE 100' |
2,187 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 20 AWG | 10/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.213" (5.41mm) | - | 100.0' (30.5m) | Slate | UL Style 2464 | - | 300 V | -20°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
