Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

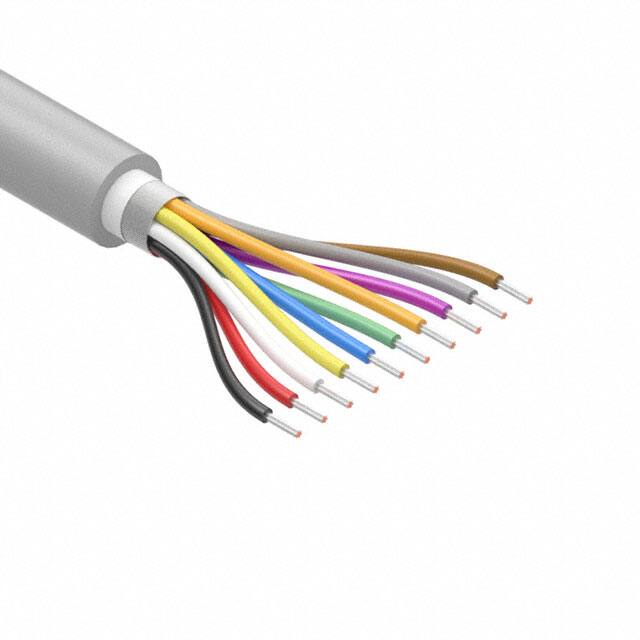

30-01203CABLE 10COND 28AWG GRAY SHLD |
1,773 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 10 | 28 AWG | 40/0.002" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.181" (4.60mm) | Spiral | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
30-02665CBL 6CON 24AWG BLK BIO |
4,780 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.177" (4.50mm) | - | 502.0' (153.0m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02737CBL 6CON 24AWG GRY BIO |
1,585 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.177" (4.50mm) | - | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02809CBL 6CON 24AWG WHT BIO |
4,583 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 6 | 24 AWG | 41/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.177" (4.50mm) | - | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
|
M1705 SL002CABLE 5COND 18AWG SLATE SHLD |
1,159 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 5 | 18 AWG | 19/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.297" (7.54mm) | Braid | 500.0' (152.4m) | Slate | - | - | 1 kV | -55°C ~ 105°C | - | 0.0250" (0.635mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
16063.38.01CABLE 3COND 8AWG BLACK 500' |
3,049 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 8 AWG | 133/29 | Copper, Bare | Carolprene | 0.845" (21.46mm) | - | 500.0' (152.4m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0600" (1.524mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
55A4831-18-MST3-9CS2275CABLE 3COND 18AWG WHITE |
2,767 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 18 AWG | 19/30 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.167" (4.24mm) | - | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55PC2141-22-CML4-9CS2970CABLE 4COND 22AWG WHITE SHLD |
3,689 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 4 | 22 AWG | 19/34 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.131" (3.33mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0090" (0.229mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|

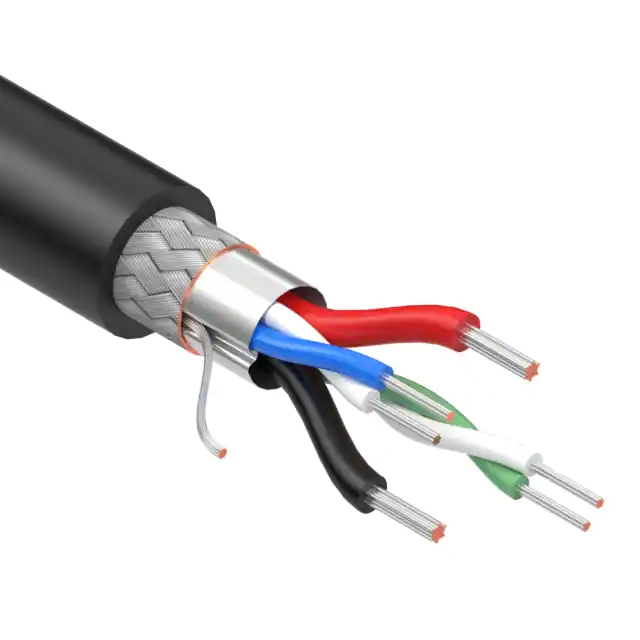

30-02484CABLE 6COND 22AWG/28AWG METER |
1,144 |
|
- |
- | Spool | Active | Multi-Conductor | 6 (2 Twisted Pairs + 2) | 22 AWG, 28 AWG | 7/0.0050", 26/0.0050" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.217" (5.51mm) | Foil, Braid | - | Black | - | - | 30 V | -25°C ~ 80°C | - | 0.0354" (0.900mm) | Poly-Vinyl Chloride (PVC), Polyethylene (PE), Semi-Rigid | - |
|
|
M9708120 BK001MULTI-PAIR 24COND 18AWG |
1,656 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 24 (12 Pair Twisted) | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.690" (17.53mm) | Foil | 1000.0' (304.8m) | Black | - | - | 300 V | -20°C ~ 105°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
M2447 SL001CABLE 15COND 24AWG SHLD |
3,846 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 15 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.292" (7.42mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
3600G/36 300MULTI-PAIR 36CON 28AWG GRAY |
1,262 |
|
Datasheet |
3600X | Spool | Active | Multi-Pair | 36 (18 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.290" (7.37mm) | Foil, Braid | 300.0' (91.4m) | Gray | - | - | 30 V | - | Communication, Computer, Control | 0.0260" (0.660mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC0231-12-2/4/6-F940CABLE 3COND 12AWG |
1,772 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 (1 Triad Twisted) | 12 AWG | 37/28 | Copper, Tinned | - | 0.226" (5.74mm) | - | - | - | - | - | 600 V | 150°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
99M1121-22-2/6-0CABLE 2COND 22AWG BLACK SHLD |
4,077 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | - | Copper, Tinned | Zerohal™ | 0.130" (3.30mm) | Braid | - | Black | - | - | 600 V | -55°C ~ 150°C | - | 0.0120" (0.305mm) | Polyester | - |
|
470045YY GE432CABLE 4COND 21AWG GRAY 1M |
4,542 |
|
Datasheet |
Pro-Met® | Bulk | Active | Multi-Conductor | 4 | 21 AWG | 20/0.0070" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.220" (5.59mm) | - | 3.28' (1.00m) | Gray | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0276" (0.700mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC0232-22-9/93/96CS2573CABLE 3COND 22AWG |
2,068 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 (1 Triad Twisted) | 22 AWG | 19/34 | Copper, Silver Coated | - | 0.098" (2.48mm) | - | - | - | - | - | 600 V | 200°C | - | - | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
01812.35.01CABLE 3COND 8AWG BLACK |
1,108 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 8 AWG | 65/26 | Copper, Bare | Carolprene | 0.695" (17.65mm) | - | 250.0' (76.2m) | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0500" (1.270mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
M18112KW SL199CABLE 12COND 18AWG SLATE 1000' |
2,338 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 12 | 18 AWG | 19/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.515" (13.08mm) | - | 1000.0' (304.8m) | Slate | - | - | 600 V | -25°C ~ 90°C | - | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M18112LW SL199CABLE 12COND 18AWG SLATE 1000' |
3,365 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 12 | 18 AWG | 19/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.515" (13.08mm) | - | 1000.0' (304.8m) | Slate | - | - | 600 V | -25°C ~ 90°C | - | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M5348 SL001CABLE 30COND 22AWG SHLD |
4,813 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 30 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.414" (10.52mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
