Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
75002 BK001CABLE CAT5E 4COND 24AWG |
2,349 |
|
Datasheet |
Xtra-Guard® Cat5e Industrial Ethernet | Spool | Active | Multi-Pair, Cat5e | 4 (2 Pair Twisted) | 24 AWG | Solid | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.325" (8.26mm) | Foil, Braid | 1000.0' (304.8m) | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 105°C | Communication | 0.0350" (0.889mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
55A1824-24-6/9-6CABLE 2COND 24AWG BLUE SHLD |
1,954 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 24 AWG | 19/36 | Copper Alloy, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.123'' (3.12mm) | Braid | - | Blue | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
6394 SL001MULTI-PAIR 14COND 28AWG |
1,722 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 14 (7 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.269" (6.83mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2960 | Drain Wire | 300 V | -20°C ~ 75°C | - | 0.0350" (0.889mm) | Polyethylene (PE) | - |
|
|
9873MN 0081000MULTI-PAIR 6CON 20AWG GRAY |
1,748 |
|
Datasheet |
SpaceMaker™ | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.271" (6.88mm) | Foil | 1000.0' (304.8m) | Gray | UL Style 2937 | Drain Wire | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - |
|
|
M13325 SL002CABLE 25COND 22AWG SLATE |
2,577 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 25 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.380" (9.65mm) | - | 500.0' (152.4m) | Slate | UL Style 2576 | - | 300 V | -20°C ~ 80°C | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M5660 SL001MULTI-PAIR 10COND 22AWG |
2,641 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.377" (9.58mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2343 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
78162 SL199MULTI-PAIR 4COND 26AWG SLATE 1' |
4,474 |
|
Datasheet |
EcoCable® Mini | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 26 AWG | 19/38 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.150" (3.81mm) | Foil | 1.00' (0.30m) | Slate | UL Style 21460 | Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
80103 SL199CABLE 2COND 26AWG SLATE SHLD |
1,448 |
|
Datasheet |
EcoFlex® PUR | Bulk | Active | Multi-Conductor | 2 | 26 AWG | 19/38 | Copper, Tinned | Polyurethane (PU) | 0.178" (4.52mm) | Braid | - | Slate | - | - | 600 V | -50°C ~ 90°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
M9700120 BK005MULTI-PAIR 24COND 20AWG BLACK |
4,817 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 24 (12 Pair Twisted) | 20 AWG | 7/0.0121" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.606" (15.39mm) | Foil | 100.0' (30.5m) | Black | - | - | 300 V | -20°C ~ 105°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
275002202 NA199CABLE 2COND 22AWG NATURAL 3000' |
2,741 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.146" (3.71mm) | Braid | 3000' (914.4m) | Natural | - | - | 600 V | -55°C ~ 150°C | - | 0.0098" (0.250mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
IEA001 0101000INDUSTRIAL ETHERNET CAT6A UTP |
2,255 |
|
- |
- | Bulk | Active | Multi-Pair | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.305" (7.75mm) | - | 1.00' (0.30m) | Black | - | - | 300 V | -40°C ~ 75°C | - | - | Polyolefin (PO) | - |
|
|
44A1121-26-2/9-9CABLE 2COND 26AWG WHITE SHLD |
2,053 |
|
Datasheet |
- | Bag | Active | Multi-Conductor | 2 | 26 AWG | 19/38 | Copper, Tinned | Polyvinylidene Fluoride (PVDF) | 0.102" (2.59mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Polyvinylidene Fluoride (PVDF) | - |
|
|
30-02472CABLE 9COND 30AWG BLACK SHLD |
2,502 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 30 AWG | 7/38 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.150" (3.81mm) | Spiral | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|

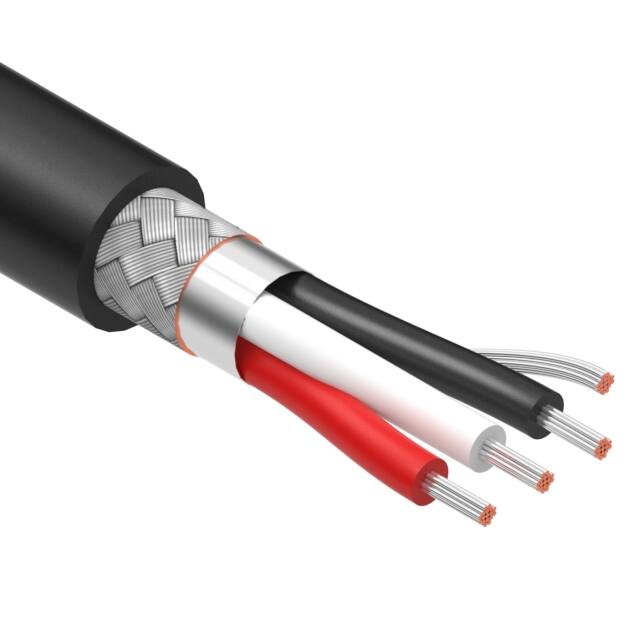

30-01569CABLE 3COND 20AWG BLACK SHLD |
1,348 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 20 AWG | 26/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.236" (5.99mm) | Foil, Braid | 502.0' (153.0m) | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-02045CABLE 10COND 32AWG BLACK |
2,238 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 10 | 32 AWG | 7/0.0031" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.177" (4.50mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0094" (0.240mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
30-02703CBL 2CON 20AWG GRY BIO |
2,144 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 20 AWG | 65/0.0039" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.165" (4.19mm) | - | 502.0' (153.0m) | Gray | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02775CBL 2CON 20AWG WHT BIO |
3,007 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 20 AWG | 65/0.0039" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.165" (4.19mm) | - | 502.0' (153.0m) | White | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - |
|
|
30-02361CBL 5CON 22AWG BLK TPU |
3,603 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 5 | 22 AWG | 26/0.005" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.205" (5.21mm) | - | 502.0' (153.0m) | Black | UL Style 20280 | - | 300 V | -40°C ~ 80°C | - | 0.0299" (0.759mm) | Thermoplastic Elastomer (TPE) | - |
|
|
86104CY SL199CABLE 4COND 26AWG SHLD 1000' |
3,995 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 4 | 26 AWG | 7/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.199" (5.06mm) | Foil, Braid | - | Slate | ISO 10993, UL Style 2661 | Biological Compatibility | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
76406TS 0081000MULTI-PAIR 12CON 28AWG GRY |
4,165 |
|
- |
MachFlex™ | Spool | Active | Multi-Pair | 12 (6 Pair) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.293" (7.44mm) | Foil, Braid | 1000.0' (304.8m) | Gray | UL Style 20006 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
