Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
01384.35T.01CABLE 4COND 10AWG BLACK |
1,507 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 10 AWG | 104/30 | Copper, Bare | Carolprene | 0.655" (16.64mm) | - | 250.0' (76.2m) | Black | - | - | 300 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
01384.85.01CABLE 4COND 10AWG BLACK |
4,995 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 10 AWG | 104/30 | Copper, Bare | Carolprene | 0.655" (16.64mm) | - | 250.0' (76.2m) | Black | - | - | 300 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
55A4821-16-9/96-9CS2275CABLE 2COND 16AWG WHITE |
3,452 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 16 AWG | 19/29 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.170" (4.32mm) | - | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
M2492 SL199MULTI-PAIR 14COND 28AWG 3000' |
1,277 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 14 (7 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.314" (7.98mm) | Foil, Braid | 3000' (914.4m) | Slate | UL Style 2919 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Foam Polypropylene (FPP) | - |
|
|
55PC1122-20-6/9-94CABLE 2COND 20AWG WH/YL SHLD |
3,027 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.130" (3.30mm) | Braid | - | White, Yellow | - | - | 600 V | 200°C | - | 0.0070" (0.178mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55PC1122-20-9/96-9CABLE 2COND 20AWG WHITE SHLD |
2,307 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Silver Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.130" (3.30mm) | Braid | - | White | - | - | 600 V | 200°C | - | 0.0070" (0.178mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55A6215-20-MST3-9CS2275CABLE 3COND 20AWG WHITE SHLD |
1,455 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 20 AWG | 19/32 | Copper, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.159" (4.04mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0100" (0.254mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
M3852 BK002CABLE 8COND 14AWG BLACK |
3,355 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 | 14 AWG | 7/0.0242" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.479" (12.17mm) | - | 500.0' (152.4m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
03710.38.10CABLE 3COND 10AWG GRAY |
3,410 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 10 AWG | - | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.485" (12.32mm) | - | 500.0' (152.4m) | Gray | - | - | 600 V | -20°C ~ 60°C | - | 0.0300" (0.762mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC4833-22-3/6/9-9CS2926CABLE 3COND 22AWG WHITE |
1,983 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 22 AWG | 19/34 | Copper, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.125" (3.18mm) | - | - | White | - | - | 600 V | 200°C | - | 0.0085" (0.216mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
55PC6233-24-3/6/9-9-2LCABLE 3COND 24AWG RED SHLD |
2,687 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 24 AWG | 19/36 | Copper Alloy, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.141" (3.58mm) | Double Braid | - | Red | - | - | 600 V | 200°C | - | 0.0100" (0.254mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
9746 060500MULTI-PAIR 8CON 22AWG CHROM |
2,489 |
|
Datasheet |
Classics | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.281" (7.14mm) | - | 500.0' (152.4m) | Chrome | UL Style 2576 | - | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
78344 SL001CABLE 4COND 20AWG SHLD |
3,381 |
|
Datasheet |
EcoCable® Mini | Spool | Active | Multi-Conductor | 4 | 20 AWG | 19/32 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.196" (4.98mm) | Foil, Braid | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
M39033 SL199CABLE 20COND 24AWG SHLD 3000' |
4,441 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 20 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.301" (7.65mm) | Foil | 3000' (914.4m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M39111 BK199CABLE 2COND 14AWG BLK SHLD 3000' |
3,061 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 14 AWG | 41/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.359" (9.12mm) | Foil | 3000' (914.4m) | Black | - | Drain Wire | 600 V | -25°C ~ 90°C | - | 0.0480" (1.219mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M64842 SL005CABLE 7COND 24AWG SLATE SHLD |
4,984 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 7 | 24 AWG | 7/32 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP) | 0.133" (3.38mm) | Foil | 100.0' (30.5m) | Slate | - | Drain Wire | 300 V | -20°C ~ 150°C | - | 0.0098" (0.250mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
55PC1233-24-2/4/6-9CABLE 3COND 24AWG WHITE SHLD |
2,737 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 24 AWG | 19/36 | Copper, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.118" (3.00mm) | Braid | - | White | - | - | 600 V | 200°C | - | 0.0075" (0.191mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
3644A/16MULTI-PAIR 16COND 28AWG BLK |
1,732 |
|
- |
3644X | Spool | Active | Multi-Pair | 16 (8 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.230" (5.84mm) | Foil, Braid | - | Black | - | - | 150 V | - | Communication, Computer, Control | 0.0260" (0.660mm) | Polyolefin (PO) | - |
|

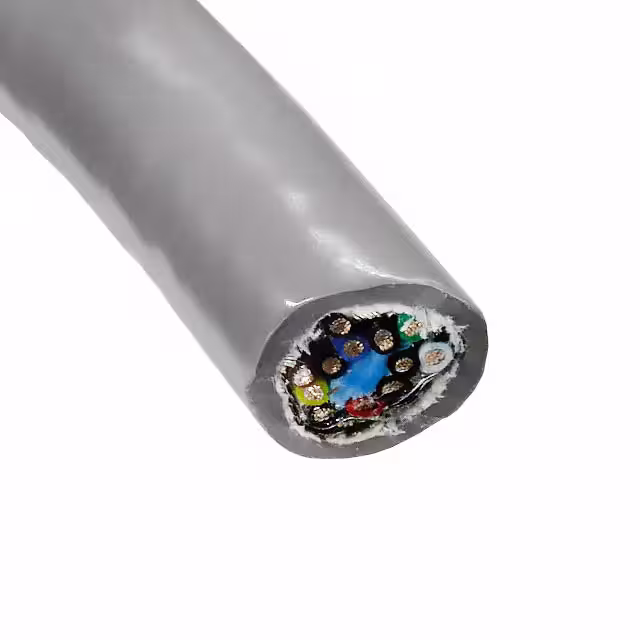

5906C SL005MULTI-PAIR 12COND 22AWG |
3,452 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 12 (6 Pair Twisted) | 22 AWG | Solid | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.329" (8.36mm) | Foil | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
1552210014CABLE 4COND 22AWG BLK SHLD 500M |
3,062 |
|
Datasheet |
Flamar 155221 | Bulk | Active | Multi-Conductor | 4 | 22 AWG | 42/0.0039" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.224" (5.69mm) | Braid | 1640.4' (500.0m) | Black | - | - | 600 V | -25°C ~ 80°C | - | 0.0098" (0.250mm) | Thermoplastic Elastomer (TPE) | - |
