Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

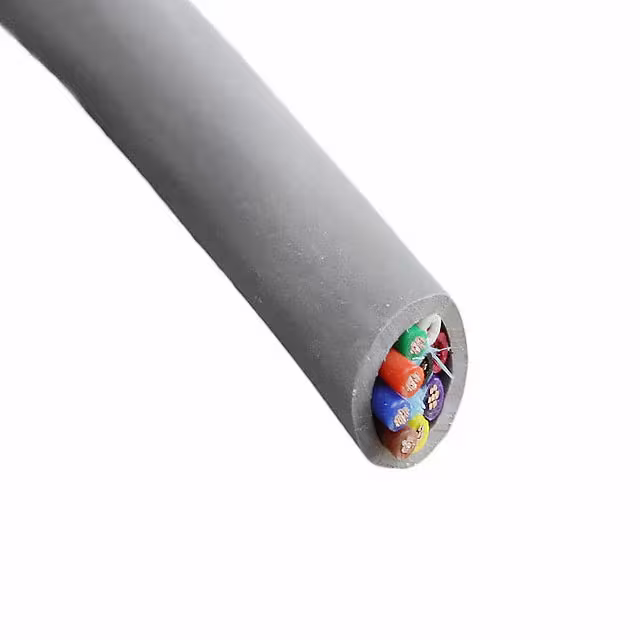

6357 SL002CABLE 9COND 24AWG SLATE SHLD |
4,006 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 9 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.300" (7.62mm) | Foil, Braid | 500.0' (152.4m) | Slate | UL Style 2919 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0350" (0.889mm) | Foam Polyethylene (FPE) | - |
|
M39123 SL199CABLE 2COND 12AWG SHLD 3000' |
2,636 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 12 AWG | 65/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.427" (10.85mm) | Foil | 3000' (914.4m) | Slate | - | Drain Wire | 300 V | -20°C ~ 105°C | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M39251 SL199MULTI-PAIR 8COND 24AWG 3000' |
4,161 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.369" (9.37mm) | Foil | 3000' (914.4m) | Slate | UL Style 2493 | - | 300 V | -20°C ~ 75°C | - | 0.0480" (1.219mm) | Foam Polypropylene (FPP) | - |
|
|
M4640 SL199CABLE 10COND 22AWG SHLD 3000' |
3,897 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 10 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.271" (6.88mm) | Foil | 3000' (914.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M5362 SL199CABLE 4COND 20AWG SHLD 1000' |
2,001 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.262" (6.65mm) | Foil, Braid | 1000.0' (304.8m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
86984.XX.05CABLE 4COND 12AWG YELLOW |
1,318 |
|
- |
- | Spool | Active | Multi-Conductor | 4 | 12 AWG | 65/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.665" (16.89mm) | - | - | Yellow | - | - | 600 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
86984.XX.10CABLE 4COND 12AWG GRAY |
3,585 |
|
- |
- | Spool | Active | Multi-Conductor | 4 | 12 AWG | 65/30 | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC) | 0.665" (16.89mm) | - | - | Gray | - | - | 600 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Poly-Vinyl Chloride (PVC) | - |
|

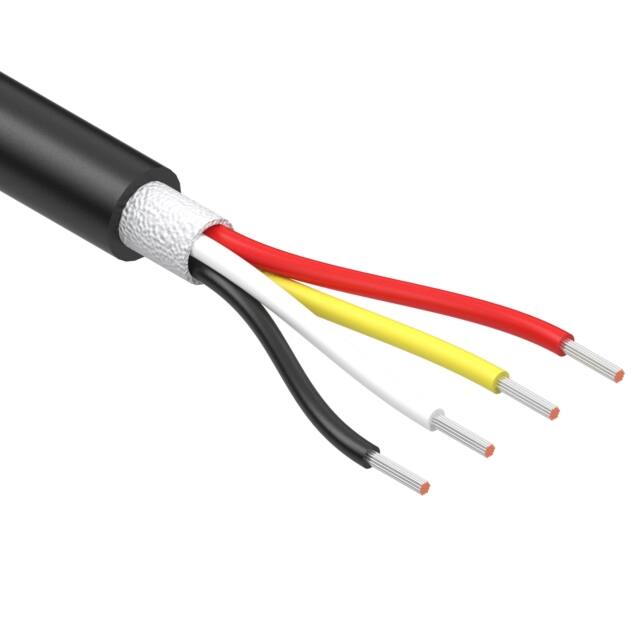

30-01920CABLE 4COND 26AWG BLACK |
4,973 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 4 | 26 AWG | 19/38 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.134" (3.40mm) | - | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
86302 SL005CABLE 2COND 22AWG SLATE |
1,110 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.188" (4.78mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 2661 | Biological Compatibility | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
65245CY SL002CABLE 5CON 24AWG SLATE SHLD |
1,630 |
|
Datasheet |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 5 | 24 AWG | 7/32 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.349" (8.86mm) | Braid | 500.0' (152.4m) | Slate | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
9156 0605000MULTI-PAIR 4CON 18AWG CHRM |
3,820 |
|
Datasheet |
Classics | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.333" (8.46mm) | - | 5000' (1524.0m) | Chrome | UL Style 2464 | - | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
7412W 060250CABLE 5COND 18AWG CHROME |
1,213 |
|
Datasheet |
MachFlex™ | Spool | Active | Multi-Conductor | 5 | 18 AWG | 16/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.339" (8.61mm) | - | 250.0' (76.2m) | Chrome | UL Style 20328 | Oil Resistant, UV Resistant | - | - | Industrial, Signal, Control | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
|
7412W 0605000CABLE 5COND 18AWG CHROME |
1,604 |
|
Datasheet |
MachFlex™ | Spool | Active | Multi-Conductor | 5 | 18 AWG | 16/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.339" (8.61mm) | - | 5000' (1524.0m) | Chrome | UL Style 20328 | Oil Resistant, UV Resistant | - | - | Industrial, Signal, Control | 0.0470" (1.194mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
|
8882MN 0041000CABLE 5COND 22AWG YLW SHLD |
3,384 |
|
Datasheet |
SpaceMaker™ | Spool | Active | Multi-Conductor | 5 | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.171" (4.34mm) | Foil | 1000.0' (304.8m) | Yellow | UL Style 2937 | Drain Wire | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - |
|
|
8882MN 0061000CABLE 5CON 22AWG BLUE SHLD |
3,105 |
|
Datasheet |
SpaceMaker™ | Spool | Active | Multi-Conductor | 5 | 22 AWG | 19/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.171" (4.34mm) | Foil | 1000.0' (304.8m) | Blue | UL Style 2937 | Drain Wire | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0160" (0.406mm) | Polypropylene (PP) | - |
|
|
55A1131-22-3/6/9-9CS1939CABLE 3COND 22AWG WHITE SHLD |
4,375 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 22 AWG | 19/34 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.126" (3.20mm) | Braid | - | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
7404W 0605000CABLE 7COND 20AWG CHROME |
3,560 |
|
Datasheet |
MachFlex™ | Spool | Active | Multi-Conductor | 7 | 20 AWG | 19/32 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.309" (7.85mm) | - | 5000' (1524.0m) | Chrome | UL Style 20327 | Oil Resistant, UV Resistant | 300 V | - | Industrial, Signal, Control | 0.0420" (1.067mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - |
|
|
F16003KW BK199CABLE 3COND 16AWG BLACK 1000' |
3,676 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 16 AWG | 65/34 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.334" (8.48mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
F16003LW BK199CABLE 3COND 16AWG BLACK 1000' |
2,700 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 16 AWG | 65/34 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.334" (8.48mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
F16003RW BK199CABLE 3COND 16AWG BLACK 1000' |
1,473 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 3 | 16 AWG | 65/34 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.334" (8.48mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC) | - |
