Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55A4121-22-9/96-9CS2275CABLE 2COND 22AWG WHITE |
4,678 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 | 22 AWG | 19/34 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.102" (2.59mm) | - | 2000.0' (609.6m) | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
89082.XX.01CABLE 2COND 12AWG BLACK |
2,328 |
|
- |
Ultra Flex® | Spool | Active | Multi-Conductor | 2 | 12 AWG | 65/30 | Copper, Annealed Bare | Thermoplastic Elastomer (TPE) | 0.585" (14.86mm) | - | - | Black | - | Oil Resistant | 600 V | -50°C ~ 105°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
|
|
8422 0605002 #22 PE CBRD BRD PVC |
4,605 |
|
Datasheet |
- | Spool | Active | Microphone | 2 | 22 AWG | 16/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.231" (5.87mm) | Double Braid | 500.0' (152.4m) | Chrome | - | - | 1000 V | -40°C ~ 80°C | Audio | 0.0290" (0.737mm) | Polyethylene (PE) | - |
|
|
1192A B5910004 #24 PE SH PVC BLK MTT |
3,042 |
|
Datasheet |
- | Spool | Active | Microphone | 4 | 24 AWG | 42/40 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.245" (6.22mm) | Braid | 1000.0' (304.8m) | Black | - | - | 100 V | -30°C ~ 75°C | Audio | 0.0440" (1.118mm) | Polyethylene (PE) | - |
|
|
M3815 BK001CABLE 15COND 18AWG BLACK |
4,397 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 15 | 18 AWG | 7/0.0152" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.533" (13.54mm) | - | 1000.0' (304.8m) | Black | - | - | 600 V | -25°C ~ 90°C | - | 0.0630" (1.600mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
02762.99.01CABLE 3COND 14AWG BLACK 1=1FT |
3,860 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 14 AWG | 41/30 | Copper, Bare | Carolprene | 0.535" (13.59mm) | - | - | Black | - | - | 600 V | -40°C ~ 90°C | - | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
8780 06050001 PR #16 PVC SHLD PVC |
1,108 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 16 AWG | 19/29 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.280" (7.11mm) | Spiral | 5000' (1524.0m) | Chrome | UL Style CMG | - | 300 V | -20°C ~ 60°C | Audio, Instrumentation | 0.0300" (0.762mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
1814WB 01010002 FS PR #22 PVC FS PO |
4,961 |
|
Datasheet |
- | Spool | Active | Multi-Pair | 4 (2 Pair) | 22 AWG | 7/30 | Copper, Tinned | High Density Polyethylene (HDPE) | 0.362" (9.20mm) | Foil | 1000.0' (304.8m) | Black | - | Drain Wire, UV Resistant, Water-Blocked | 300 V | -20°C ~ 60°C | Audio | 0.0300" (0.762mm) | Polypropylene (PP) | - |
|
|
1814WB 01020002 FS PR #22 PVC FS PO |
4,482 |
|
Datasheet |
- | Bulk | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Polyethylene (PE) | 0.362" (9.20mm) | Foil | 2000.0' (609.6m) | Black | - | - | 300 V | -20°C ~ 60°C | - | 0.0300" (0.762mm) | Polypropylene (PP) | - |
|
|
1696A B592502 #22 FHDPE SHLD PVC |
2,525 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 2 (1 Pair) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.235" (5.97mm) | Foil, Braid | 250.0' (76.2m) | Black | - | Drain Wire | 300 V | -30°C ~ 60°C | Audio | 0.0250" (0.635mm) | Foam Polyethylene (FPE) | - |
|
|
CP0336-000CABLE 3COND 22AWG WHITE SHLD |
2,181 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 22 AWG | 19/34 | Copper, Nickel Coated | Ethylene Tetrafluoroethylene (ETFE) | 0.131" (3.33mm) | Braid | - | White | - | - | 600 V | 200°C | - | 0.0075" (0.191mm) | Ethylene Tetrafluoroethylene (ETFE) | - |
|
|
02608.35.05CABLE 3COND 14AWG YELLOW 250' |
2,329 |
|
- |
- | Spool | Active | Multi-Conductor | 3 | 14 AWG | 105/34 | Copper, Annealed Tinned | Super Vu-Tron® Supreme | 0.375" (9.53mm) | - | 250.0' (76.2m) | Yellow | - | - | 300 V | -50°C ~ 105°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
|
9572 002U500CABLE 2COND 16AWG RED |
4,103 |
|
Datasheet |
Classics | Spool | Active | Multi-Conductor | 2 | 16 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.238" (6.05mm) | - | 500.0' (152.4m) | Red | UL Style 2464 | - | 300 V | -40°C ~ 105°C | Alarm, Safety | 0.0360" (0.914mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55A1131-24-0/2/9-9CABLE 3COND 24AWG WHITE SHLD |
4,531 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 24 AWG | - | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.113" (2.87mm) | Braid | - | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | - | - |
|
|
55A1131-24-2/6/9-9CABLE 3COND 24AWG WHITE SHLD |
1,345 |
|
Datasheet |
- | Bulk | Active | Multi-Conductor | 3 | 24 AWG | - | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.113" (2.87mm) | Braid | - | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | - | - |
|
|
58117 SL001CABLE 7COND 22AWG SHLD |
4,131 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 7 | 22 AWG | 7/28 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.172" (4.37mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -5°C ~ 75°C | - | 0.0154" (0.390mm) | Poly-Vinyl Chloride (PVC) | - |
|

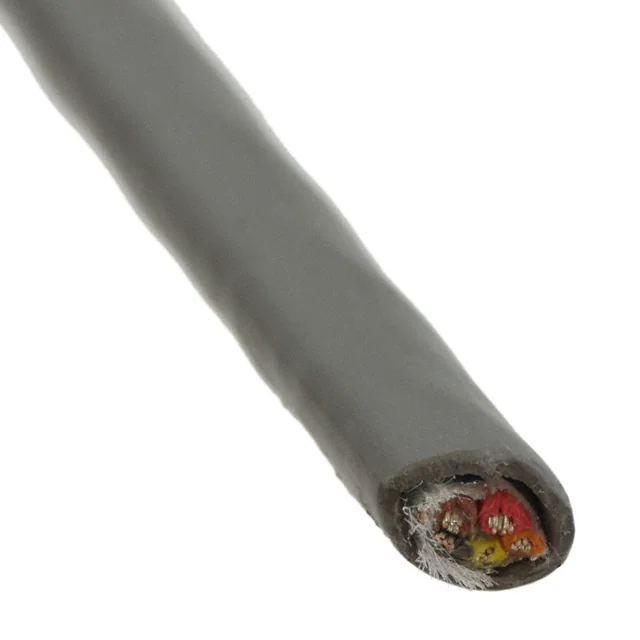

77105 SL001CABLE 5COND 24AWG SHLD |
3,622 |
|
Datasheet |
EcoCable® | Spool | Active | Multi-Conductor | 5 | 24 AWG | 7/32 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.192" (4.88mm) | Foil | 1000.0' (304.8m) | Slate | ISO 10993 | Biological Compatibility | 600 V | -50°C ~ 105°C | - | 0.0320" (0.813mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
|
M13315 SL199CABLE 15COND 22AWG SLATE 3000' |
4,717 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 15 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.310" (7.87mm) | - | 3000' (914.4m) | Slate | UL Style 2576 | - | 300 V | -20°C ~ 80°C | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
M5338 SL199CABLE 8COND 22AWG SHLD 3000' |
3,720 |
|
Datasheet |
- | Spool | Active | Multi-Conductor | 8 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.259" (6.58mm) | Foil, Braid | 3000' (914.4m) | Slate | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
3600G/20 300MULTI-PAIR 20CON 28AWG GRAY |
3,449 |
|
Datasheet |
3600X | Spool | Active | Multi-Pair | 20 (10 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.240" (6.10mm) | Foil, Braid | 300.0' (91.4m) | Gray | - | - | 30 V | - | Communication, Computer, Control | 0.0260" (0.660mm) | Poly-Vinyl Chloride (PVC) | - |
