LED Indication - Discrete
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Configuration | Lens Color | Lens Transparency | Millicandela Rating | Lens Style | Lens Size | Voltage - Forward (Vf) (Typ) | Current - Test | Viewing Angle | Mounting Type | Wavelength - Dominant | Wavelength - Peak | Features | Grade | Qualification | Supplier Device Package | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BT-0603L-Orange-E3ChipLED 0603 Top view with dome |
75,000 |
|
- |
CHIPLED 0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Orange | Standard | Colorless | Clear | 132mcd ~ 276mcd | Round with Domed Top | 1.20mm Dia | 1.8V ~ 2.2V | 5mA | 30° | Surface Mount | 601nm ~ 606nm | - | - | - | - | 0603 (1608 Metric) | 1.60mm L x 0.80mm W |
|
|
BT-0603L-Blue-E3ChipLED 0603 Top view with dome |
75,000 |
|
- |
CHIPLED 0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Blue | Standard | Colorless | Clear | 192mcd ~ 331mcd | Round with Domed Top | 1.20mm Dia | 2.6V ~ 3.2V | 5mA | 30° | Surface Mount | 460nm ~ 472nm | - | - | - | - | 0603 (1608 Metric) | 1.60mm L x 0.80mm W |
|
|
YY0805BL-NZ3S0-T3AR4LED BLUE CLEAR 0805 SMD |
75,000 |
|
Datasheet |
0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Blue | Standard | Colorless | Clear | 100mcd ~ 250mcd | Rectangle with Flat Top | 1.20mm x 1.25mm | 2.9V ~ 3.3V | 20mA | 140° | Surface Mount | 460nm ~ 475nm | - | - | - | - | 0805 | 2.00mm L x 1.25mm W |
|
|
YY0805GR-NZ1S0-T3AR4LED GREEN CLEAR 0805 SMD |
75,000 |
|
Datasheet |
0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Green | Standard | Colorless | Clear | 145mcd ~ 430mcd | Rectangle with Flat Top | 1.20mm x 1.25mm | 2.4V ~ 3.1V | 5mA | 140° | Surface Mount | 513nm ~ 531nm | - | - | - | - | 0805 | 2.00mm L x 1.25mm W |
|
|
YY0805BL-NZ1S0-T3AR4LED BLUE CLEAR 0805 SMD |
75,000 |
|
Datasheet |
0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Blue | Standard | Colorless | Clear | 34mcd ~ 100mcd | Rectangle with Flat Top | 1.20mm x 1.25mm | 2.6V ~ 3.1V | 5mA | 140° | Surface Mount | 460nm ~ 475nm | - | - | - | - | 0805 | 2.00mm L x 1.25mm W |
|
|
YY0805RE-NZ3S0-T3AR4LED RED CLEAR 0805 SMD |
75,000 |
|
Datasheet |
0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Red | Standard | Colorless | Clear | 120mcd ~ 250mcd | Rectangle with Flat Top | 1.20mm x 1.25mm | 1.8V ~ 2.4V | 20mA | 140° | Surface Mount | 615nm ~ 630nm | - | - | - | - | 0805 | 2.00mm L x 1.25mm W |
|
|
YY0805RE-NZ3S1-T3AR4LED RED CLEAR 0805 SMD |
75,000 |
|
Datasheet |
0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Red | Standard | Colorless | Clear | 58mcd ~ 145mcd | Rectangle with Flat Top | 1.20mm x 1.25mm | 1.8V ~ 2.4V | 20mA | 140° | Surface Mount | 627nm ~ 636nm | - | - | - | - | 0805 | 2.00mm L x 1.25mm W |
|
|
XL-504RGBC-KSDIP,D=5MM RGB LED |
6,000 |
|
Datasheet |
F5 | Radial | Bag | Active | Red, Green, Blue (RGB) | Common Cathode | Colorless | Clear | 180mcd Red, 350mcd Green, 225mcd Blue | Round with Domed Top | 5.00mm Dia | 2.1V Red, 3.2V Green, 3.2V Blue | 20mA Red, 20mA Green, 20mA Blue | 20° | Through Hole | 625nm Red, 525nm Green, 465nm Blue | - | Flashing | - | - | Radial | - |
|
|
XL-504RGBW-KSDIP,D=5MM RGB LED |
6,000 |
|
Datasheet |
F5 | Radial | Bag | Active | Red, Green, Blue (RGB) | Common Cathode | White | Diffused | 180mcd Red, 350mcd Green, 225mcd Blue | Round with Domed Top | 5.00mm Dia | 2.1V Red, 3.2V Green, 3.2V Blue | 20mA Red, 20mA Green, 20mA Blue | 20° | Through Hole | 625nm Red, 525nm Green, 465nm Blue | - | Flashing | - | - | Radial | - |
|
|
XL-504RGBC-MSDIP,D=5MM RGB LED |
6,000 |
|
Datasheet |
F5 | Radial | Bag | Active | Red, Green, Blue (RGB) | Common Cathode | Colorless | Clear | 160mcd Red, 300mcd Green, 200mcd Blue | Round with Domed Top | 5.00mm Dia | 2.1V Red, 3.2V Green, 3.2V Blue | 20mA Red, 20mA Green, 20mA Blue | 20° | Through Hole | 625nm Red, 525nm Green, 465nm Blue | - | Flashing | - | - | Radial | - |
|
|
XL-504RGBW-MSDIP,D=5MM RGB LED |
6,000 |
|
Datasheet |
F5 | Radial | Bag | Active | Red, Green, Blue (RGB) | Common Cathode | White | Diffused | 160mcd Red, 300mcd Green, 200mcd Blue | Round with Domed Top | 5.00mm Dia | 2.1V Red, 3.2V Green, 3.2V Blue | 20mA Red, 20mA Green, 20mA Blue | 20° | Through Hole | 625nm Red, 525nm Green, 465nm Blue | - | Flashing | - | - | Radial | - |
|
|
YY0805PU-NN1S0-T3AR4LED PURPLE CLEAR 0805 SMD |
75,000 |
|
Datasheet |
0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Purple | Standard | Colorless | Clear | 4mcd ~ 10mcd | Rectangle with Flat Top | 1.20mm x 1.25mm | 2.8V ~ 3.4V | 5mA | 140° | Surface Mount | 390nm ~ 410nm | - | - | - | - | 0805 | 2.00mm L x 1.25mm W |
|
|
YY0402PU-NN3S0-T1AR4LED PURPLE CLEAR 0402 SMD |
66,000 |
|
Datasheet |
0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Purple | Standard | Colorless | Clear | 12mcd ~ 28mcd | Rectangle with Flat Top | 0.70mm x 0.50mm | 2.8V ~ 3.6V | 20mA | 140° | Surface Mount | 390nm ~ 415nm | - | - | - | - | 0402 | 1.00mm L x 0.50mm W |
|
XZMDK54W-1-16KLED RED CLEAR 0805 SMD |
32,000 |
|
Datasheet |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Red | - | Colorless | Clear | 228mcd | Rectangle with Flat Top | 1.30mm x 1.25mm | 1.95V | 20mA | 140° | Surface Mount | 630nm | 645nm | - | - | - | 0805 | 2.00mm L x 1.25mm W |
|
L150B-QEC-TRLED RED CLEAR 1206 SMD |
3,000 |
|
Datasheet |
- | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Red | - | Colorless | Clear | 70mcd | Rectangle with Flat Top | 2.00mm x 1.60mm | 2V | 20mA | 140° | Surface Mount | 630nm | 640nm | - | - | - | 1206 | 3.20mm L x 1.60mm W |
|
|
L150B-SGC-TRLED YLW-GRN CLEAR 1206 SMD |
3,000 |
|
Datasheet |
- | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Yellow-Green | - | Colorless | Clear | 32mcd | Rectangle with Flat Top | 2.00mm x 1.60mm | 2V | 20mA | 140° | Surface Mount | 571nm | 572nm | - | - | - | 1206 | 3.20mm L x 1.60mm W |
|
|
L150B-RC-TRLED RED CLEAR 1206 SMD |
3,000 |
|
Datasheet |
- | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Red | - | Colorless | Clear | 13mcd | Rectangle with Flat Top | 2.00mm x 1.60mm | 2V | 20mA | 140° | Surface Mount | 640nm | 660nm | - | - | - | 1206 | 3.20mm L x 1.60mm W |
|
|
XL-0807RGB-MSCHIP LED 0807 RGB SMD |
10,000 |
|
Datasheet |
- | 2-SMD, No Lead | Tape & Reel (TR) | Active | Red, Green, Blue (RGB) | Independent | Colorless | Diffused | 130mcd Red, 750mcd Green, 200mcd Blue | Rectangle with Flat Top | 1.80mm x 1.34mm | 2.1V Red, 3V Green, 3V Blue | 20mA Red, 20mA Green, 20mA Blue | 120° | Surface Mount | 620nm Red, 515nm Green, 465nm Blue | 625nm Red, 532nm Green, 470nm Blue | - | - | - | - | 2.00mm L x 1.80mm W |
|
|
XL-2835SURC-05TOP LED 2835 RED SMD 0.5W |
6,000 |
|
Datasheet |
2835 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | Red | Independent | White | Diffused | 6350mcd | Oval with Flat Top | 2.74mm x 2.14mm | 2V | 150mA | - | Surface Mount | 625nm | - | - | - | - | - | 3.30mm L x 2.80mm W |
|

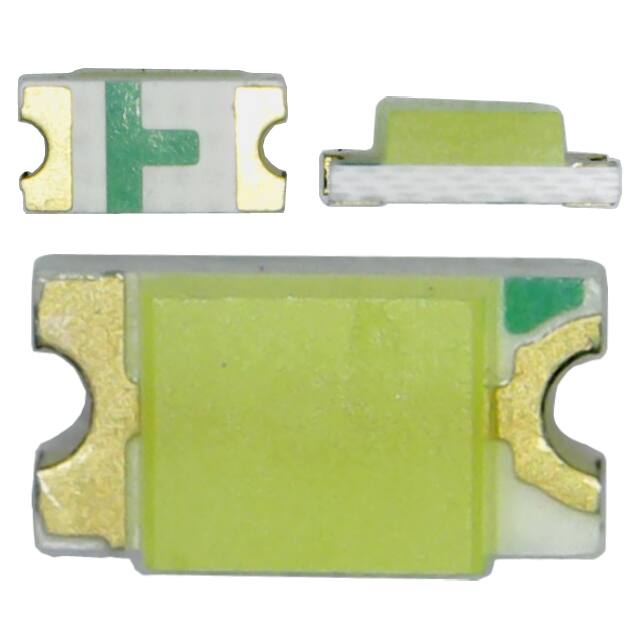

L150B-LWD7K-TRLED COOL WHITE 1206 SMD |
3,000 |
|
Datasheet |
- | 1206 (3216 Metric) | Tape & Reel (TR) | Active | White, Cool | - | Yellow | - | 450mcd | Rectangle with Flat Top | 2.00mm x 1.60mm | 3.1V | 20mA | 140° | Surface Mount | - | - | - | - | - | 1206 | 3.20mm L x 1.60mm W |
