LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LST1-01H01-IR05-01STARBOARD, 500, , , 12 |
2,076 |
|
Datasheet |
LUXEON IR | Tray | Active | LED Module | Infrared | - | 940nm | Starboard | 1450mW (Typ) | 1A | 25°C | 2.9V | - | 1A | - | 60° | - | 19.89mm Dia | 1.70mm | - | Domed |
|
|
LST1-01H03-IR07-01STARBOARD, 500, , , 12 |
1,186 |
|
Datasheet |
LUXEON IR | Tray | Active | LED Module | Infrared | - | 940nm | Starboard | 1450mW (Typ) | 1A | 25°C | 2.9V | - | 1A | - | 150° | - | 19.89mm Dia | 1.70mm | - | Domed |
|
|
LST1-01H03-IR03-01STARBOARD, 500, , , 12 |
2,702 |
|
Datasheet |
LUXEON IR | Tray | Active | LED Module | Infrared | - | 850nm | Starboard | 1350mW (Typ) | 1A | 25°C | 3.2V | - | 1A | - | 150° | - | 19.89mm Dia | 1.70mm | - | Domed |
|
|
LST1-01H02-IR02-01STARBOARD, 500, , , 12 |
4,952 |
|
Datasheet |
LUXEON IR | Tray | Active | LED Module | Infrared | - | 850nm | Starboard | 1350mW (Typ) | 1A | 25°C | 3.2V | - | 1A | - | 90° | - | 19.89mm Dia | 1.70mm | - | Domed |
|
|
BXRV-DR-1827H-1000-B-13-S2LED COB VESTA SE WM WH RND 1800K |
3,654 |
|
Datasheet |
Vesta™ SE | Tray | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 2700K 3-Step MacAdam Ellipse | - | Round | 1020lm (Typ) | 350mA | 25°C | 33.8V | 86 lm/W | 420mA | 95 | 110° | With Holder | 30.80mm Dia | 3.80mm | 9.10mm Dia | Flat |
|
|
BXRV-DR-1830H-1000-B-13-S2LED COB VESTA SE WM WH RND 1800K |
2,416 |
|
Datasheet |
Vesta™ SE | Tray | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 3000K 3-Step MacAdam Ellipse | - | Round | 1072lm (Typ) | 350mA | 25°C | 33.8V | 91 lm/W | 420mA | 95 | 110° | With Holder | 30.80mm Dia | 3.80mm | 9.10mm Dia | Flat |
|
|
BXRV-DR-1827G-1000-B-13-S2LED COB VESTA SE WM WH RND 1800K |
4,119 |
|
Datasheet |
Vesta™ SE | Tray | Active | Chip On Board (COB) | White, Warm | 1800K 3-Step MacAdam Ellipse, 2700K 3-Step MacAdam Ellipse | - | Round | 1156lm (Typ) | 350mA | 25°C | 33.8V | 98 lm/W | 420mA | 90 | 110° | With Holder | 30.80mm Dia | 3.80mm | 9.10mm Dia | Flat |
|

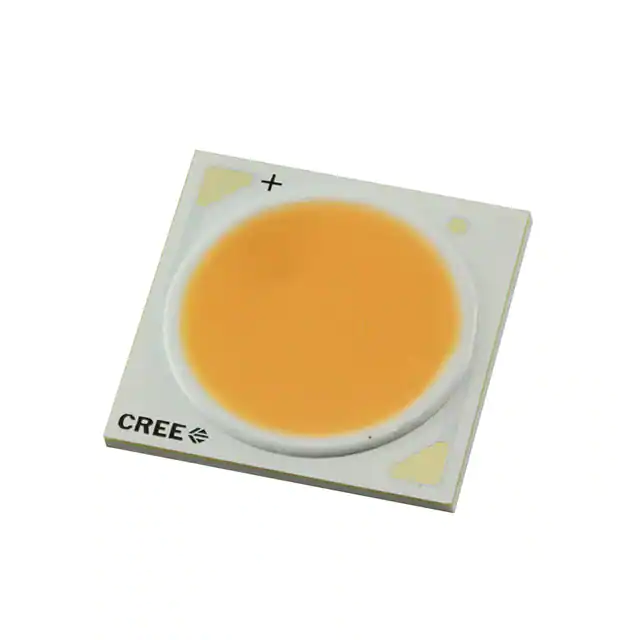

CXA1507-0000-000N0UE250FLED COB XLAMP COOL WHT SQU 5000K |
4,346 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 613lm (590lm ~ 635lm) | 200mA | 85°C | 37V | 83 lm/W | 375mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000F0UD440FLED COB XLAMP NEUT WHT SQU 4000K |
4,373 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 570lm (550lm ~ 590lm) | 400mA | 85°C | 18V | 79 lm/W | 750mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|
|
CXA1507-0000-000F0UE250FLED COB XLAMP COOL WHT SQU 5000K |
3,830 |
|
Datasheet |
XLamp® CXA1507 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 613lm (590lm ~ 635lm) | 400mA | 85°C | 18V | 85 lm/W | 750mA | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia | Flat |
|

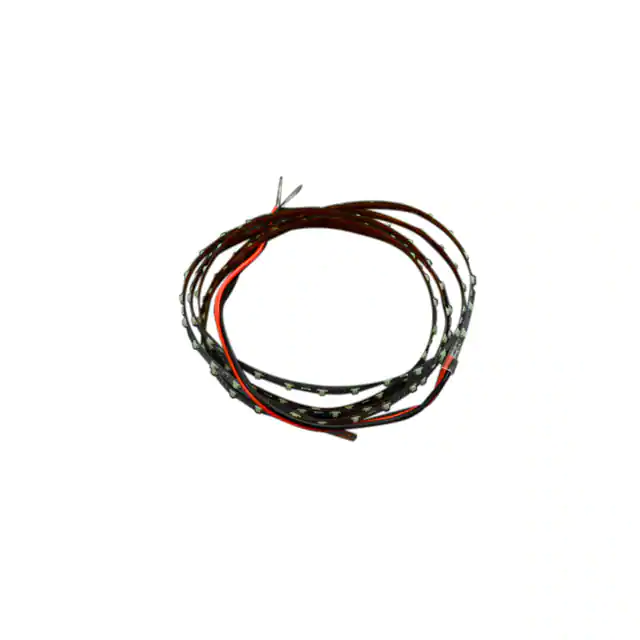

FIT0843LED MOD BLUE LINEAR STRIP 12V |
1,028 |
|
- |
- | Bulk | Active | LED Module | Blue | - | - | Linear Light Strip, Flexible | - | - | - | 12V | - | - | - | - | - | 1000.00mm L x 2.50mm W | 1.00mm | - | Flat |
|

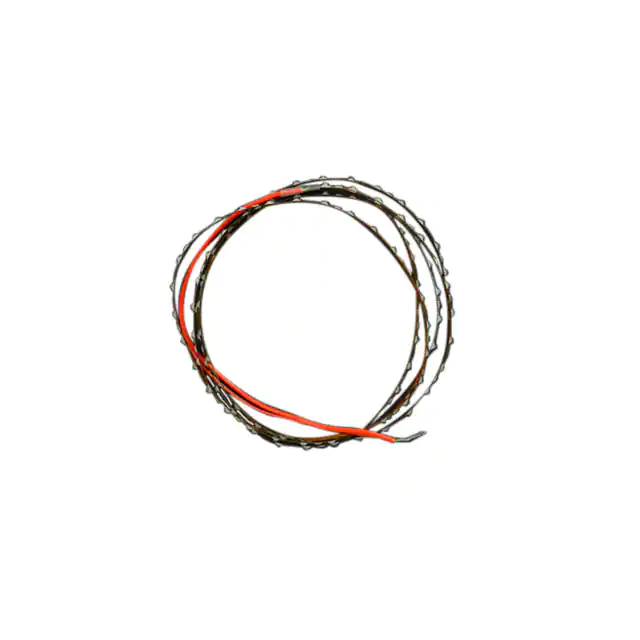

FIT0842LED MOD YELLOW LINEAR STRIP 12V |
4,653 |
|
- |
- | Bulk | Active | LED Module | Yellow | - | - | Linear Light Strip, Flexible | - | - | - | 12V | - | - | - | - | - | 1000.00mm L x 2.50mm W | 1.00mm | - | Flat |
|
CXA2520-0000-000N00Q427HLED COB XLAMP WARM WHT SQU 2700K |
3,182 |
|
Datasheet |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 2340lm (2260lm ~ 2420lm) | 550mA | 85°C | 36V | 118 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2520-0000-000N00R230HLED COB XLAMP WARM WHT SQU 3000K |
4,950 |
|
Datasheet |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2520-0000-000N00R235HLED COB XLAMP WARM WHT SQU 3500K |
2,206 |
|
Datasheet |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2520-0000-000N00R440HLED COB XLAMP NEUT WHT SQU 4000K |
3,180 |
|
Datasheet |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 36V | 136 lm/W | 1.25A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2520-0000-000N00S240FLED COB XLAMP NEUT WHT SQU 4000K |
4,283 |
|
Datasheet |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 2885lm (2780lm ~ 2990lm) | 550mA | 85°C | 36V | 146 lm/W | 1.25A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2520-0000-000N00S250HLED COB XLAMP COOL WHT SQU 5000K |
2,873 |
|
Datasheet |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 2885lm (2780lm ~ 2990lm) | 550mA | 85°C | 36V | 146 lm/W | 1.25A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2520-0000-000N0HR440HLED COB XLAMP NEUT WHT SQU 4000K |
4,518 |
|
Datasheet |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 36V | 136 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
|
CXA2520-0000-000N0HR450HLED COB XLAMP COOL WHT SQU 5000K |
4,972 |
|
Datasheet |
XLamp® CXA2520 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 36V | 136 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
