LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA1820-0000-000N0HR20E3LED COB XLAMP COOL WHT SQ 5000K |
4,877 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 37V | 123 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXA1820-0000-000N00R40E1LED COB XLAMP COOL WHT SQ 6500K |
1,242 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 37V | 132 lm/W | 1.05A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXA1820-0000-000N00R40E2LED COB XLAMP COOL WHT SQ 5700K |
2,579 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K | - | Square | 2690lm (2600lm ~ 2780lm) | 550mA | 85°C | 37V | 132 lm/W | 1.05A | 70 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXA1820-0000-000N0HR20E1LED COB XLAMP COOL WHT SQ 6500K |
4,173 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 37V | 123 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
|
CXA1820-0000-000N0HR20E2LED COB XLAMP COOL WHT SQ 5700K |
4,126 |
|
Datasheet |
XLamp® CXA1820 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 37V | 123 lm/W | 1.05A | 80 | 115° | - | 17.85mm L x 17.85mm W | 1.70mm | 12.00mm Dia | Flat |
|
SPHWHAHDNG23YZR3DCLinear IC's |
3,113 |
|
Datasheet |
LC026D | Tape & Reel (TR) | Last Time Buy | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | - | 720mA | 85°C | 34.6V | - | 1.84A | - | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNG25YZP3DCLinear IC's |
2,188 |
|
Datasheet |
LC026D | Tape & Reel (TR) | Last Time Buy | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | - | 720mA | 85°C | 34.6V | - | 1.84A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNG23YZT3DCLinear IC's |
4,599 |
|
Datasheet |
LC026D | Tape & Reel (TR) | Last Time Buy | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4347lm (Typ) | 720mA | 85°C | 33.7V | 179 lm/W | 1.44A | 70 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNG25YZQ3DCLinear IC's |
3,434 |
|
Datasheet |
LC026D | Tape & Reel (TR) | Last Time Buy | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | - | 720mA | 85°C | 34.6V | - | 1.84A | 80 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|
|
SPHWHAHDNG23YZV3DCLinear IC's |
2,374 |
|
Datasheet |
LC026D | Tape & Reel (TR) | Last Time Buy | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 4289lm (Typ) | 720mA | 85°C | 33.7V | 177 lm/W | 1.44A | 70 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia | Flat |
|

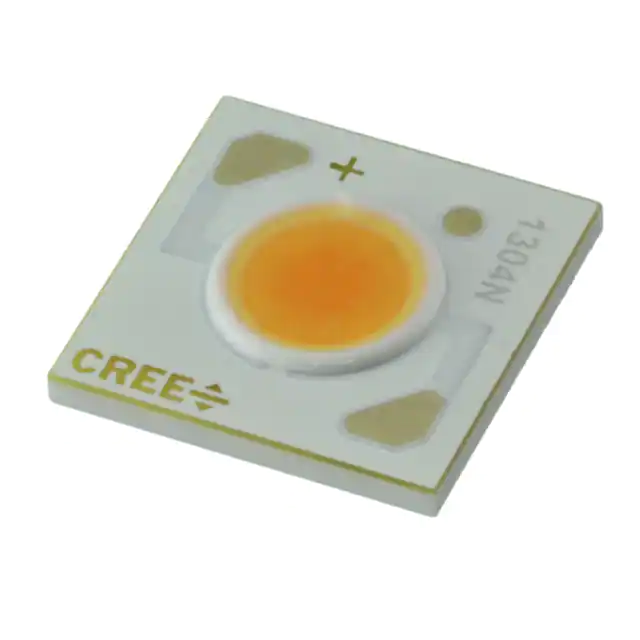

CXA1304-0000-000C0YA435HLED COB XLAMP WARM WHT SQU 3500K |
4,569 |
|
Datasheet |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 368lm (355lm ~ 380lm) | 400mA | 85°C | 9V | 102 lm/W | 1A | 93 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000F0YA435HLED COB XLAMP WARM WHT SQU 3500K |
2,721 |
|
Datasheet |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 368lm (355lm ~ 380lm) | 200mA | 85°C | 18V | 102 lm/W | 500mA | 93 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CXA1304-0000-000N0YA435HLED COB XLAMP WARM WHT SQU 3500K |
2,900 |
|
Datasheet |
XLamp® CXA1304 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 368lm (355lm ~ 380lm) | 100mA | 85°C | 37V | 99 lm/W | 250mA | 93 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia | Flat |
|
|
CHA0410-0000-000D0Z0AL7CLED COB XLAMP WARM WHT SQU 3000K |
1,337 |
|
Datasheet |
XLamp® CHA0410 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 571lm (Typ) | 525mA | 85°C | 12V | 91 lm/W | 900mA | 95 | 114° | - | 13.50mm L x 13.50mm W | 1.90mm | 4.20mm Dia | Flat |
|
|
CHA0410-0000-000N0Z0AL7CLED COB XLAMP WARM WHT SQU 3000K |
4,987 |
|
Datasheet |
XLamp® CHA0410 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 561lm (Typ) | 175mA | 85°C | 36V | 89 lm/W | 300mA | 95 | 114° | - | 13.50mm L x 13.50mm W | 1.90mm | 4.20mm Dia | Flat |
|
|
CMB1306-0000-00PN0U0A31QXLAMP CMB LED WHITE PRO9 |
3,923 |
|
Datasheet |
XLamp® CMB1306 | Tray | Active | Chip On Board (COB) | White, Warm | 3100K 3-Step MacAdam Ellipse | - | Square | 948lm (Typ) | 200mA | 85°C | 33.3V | 143 lm/W | 600mA | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
|
CMB1306-0000-00PN0U0A30QXLAMP CMB LED WHITE PRO9 |
3,656 |
|
Datasheet |
XLamp® CMB1306 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 973lm (Typ) | 200mA | 85°C | 33.3V | 147 lm/W | 600mA | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
|
CMB1306-0000-00PN0U0A30HXLAMP CMB LED WHITE PRO9 |
1,509 |
|
Datasheet |
XLamp® CMB1306 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1002lm (Typ) | 200mA | 85°C | 33.3V | 151 lm/W | 600mA | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
|
CMB1306-0000-00PN0U0A30UXLAMP CMB LED WHITE PRO9 |
3,581 |
|
Datasheet |
XLamp® CMB1306 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 933lm (Typ) | 200mA | 85°C | 33.3V | 141 lm/W | 600mA | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
|
|
CMB1306-0000-00PN0U0A27HXLAMP CMB LED WHITE PRO9 |
4,375 |
|
Datasheet |
XLamp® CMB1306 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 966lm (Typ) | 200mA | 85°C | 33.3V | 145 lm/W | 600mA | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.75mm | 6.00mm Dia | Flat |
