LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXRC-30G1000-D-72LED COB VERO WM WH STARBRD 3000K |
2,561 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Starboard | 1172lm (Typ) | 350mA | 25°C | 26V | 129 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
BXRC-30H1000-B-73LED COB GEN7 DECOR STARBD 3000K |
2,375 |
|
Datasheet |
Gen 7 Décor Series™ | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1133lm (Typ) | 270mA | 25°C | 35V | 120 lm/W | 540mA | 97 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-30H1000-D-73LED COB GEN7 DECOR STARBD 3000K |
3,191 |
|
Datasheet |
Gen 7 Décor Series™ | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1101lm (Typ) | 350mA | 25°C | 26V | 121 lm/W | 700mA | 97 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-35A1001-B-73LED COB DECOR WHT STARBRD 3500K |
3,833 |
|
Datasheet |
Décor Series™ Class A Vero® 10 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Starboard | 1053lm (Typ) | 270mA | 85°C | 34V | 115 lm/W | 540mA | 93 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-35E1000-B-72LED COB VERO WM WH STARBRD 3500K |
4,592 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Starboard | 1500lm (Typ) | 270mA | 25°C | 34.8V | 160 lm/W | 540mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-35E1000-D-72LED COB VERO WM WH STARBRD 3500K |
2,459 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Starboard | 1453lm (Typ) | 350mA | 25°C | 26V | 160 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-35G1000-B-72LED COB VERO WM WH STARBRD 3500K |
1,522 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Starboard | 1248lm (Typ) | 270mA | 25°C | 34.8V | 133 lm/W | 540mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-35G1000-D-72LED COB VERO WM WH STARBRD 3500K |
3,234 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Starboard | 1209lm (Typ) | 350mA | 25°C | 26V | 133 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-40A1001-B-73LED COB DECOR WH STARBOARD 4000K |
2,602 |
|
Datasheet |
Décor Series™ Class A Vero® 10 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1121lm (Typ) | 270mA | 85°C | 34V | 122 lm/W | 540mA | 93 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-40A1001-D-73LED COB DECOR WH STARBOARD 4000K |
2,311 |
|
Datasheet |
Décor Series™ Class A Vero® 10 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Starboard | 1089lm (Typ) | 350mA | 85°C | 25.3V | 123 lm/W | 700mA | 93 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-40E1000-B-72LED COB VERO WHT STARBOARD 4000K |
2,750 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Starboard | 1510lm (Typ) | 270mA | 25°C | 34.8V | 161 lm/W | 540mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-40E1000-D-72LED COB VERO WHT STARBOARD 4000K |
1,815 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Starboard | 1462lm (Typ) | 350mA | 25°C | 26V | 161 lm/W | 700mA | 80 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-40G1000-B-72LED COB VERO WHT STARBOARD 4000K |
3,826 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Starboard | 1297lm (Typ) | 270mA | 25°C | 34.8V | 138 lm/W | 540mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-40G1000-D-72LED COB VERO WHT STARBOARD 4000K |
4,684 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Starboard | 1256lm (Typ) | 350mA | 25°C | 26V | 138 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|

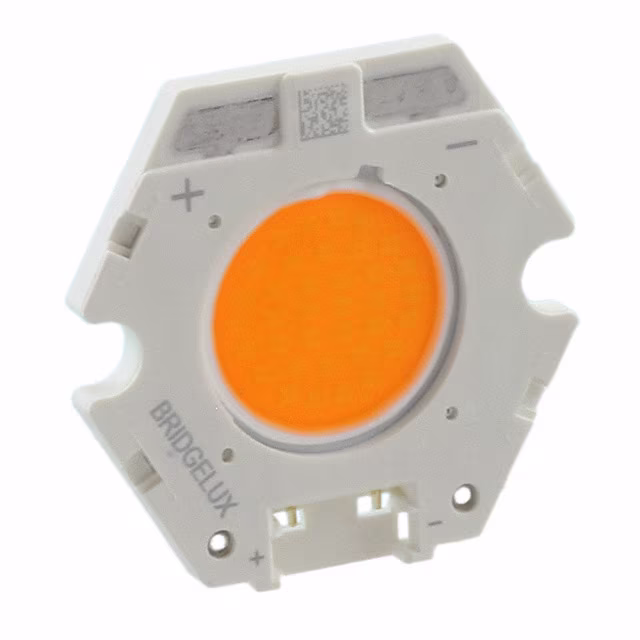

BXRC-20B1001-B-73LED COB VERO WM WH STARBRD 2000K |
2,944 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2000K 3-Step MacAdam Ellipse | - | Starboard | 1365lm (Typ) | 270mA | 25°C | 34.8V | 145 lm/W | 540mA | 65 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-20B1001-D-73LED COB VERO WM WH STARBRD 2000K |
3,670 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2000K 3-Step MacAdam Ellipse | - | Starboard | 1322lm (Typ) | 350mA | 25°C | 26V | 145 lm/W | 700mA | 65 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|

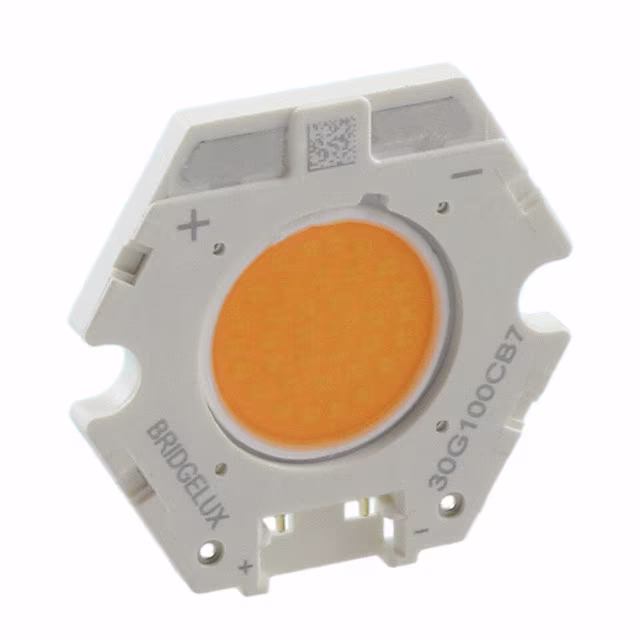

BXRC-30G100C-B-73LED COB VERO WHT STARBRD 3000K |
4,517 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1123lm (Typ) | 270mA | 25°C | 34.8V | 119 lm/W | 540mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-30G100C-D-73LED COB VERO WHT STARBRD 3000K |
2,575 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Starboard | 1087lm (Typ) | 350mA | 25°C | 26V | 119 lm/W | 700mA | 90 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
BXRC-50C1001-B-73LED COB VERO WHT STARBOARD 5000K |
2,326 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Starboard | 1655lm (Typ) | 270mA | 25°C | 34.8V | 176 lm/W | 540mA | 70 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
|
|
BXRC-50C1001-D-73LED COB VERO WHT STARBOARD 5000K |
2,904 |
|
Datasheet |
Gen 7 Vero® 10 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Starboard | 1603lm (Typ) | 350mA | 25°C | 26V | 176 lm/W | 700mA | 70 | 120° | With Connector | 20.00mm Dia | 1.90mm | 9.90mm Dia | Flat |
