LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-B8V52256CUSLED MOD V-SER GEN2 LNR 3000K |
4,971 |
|
Datasheet |
V-Series Gen2 | Bulk | Obsolete | LED Module | White, Cool | 3000K | - | Linear Light Strip | 8300lm (Typ) | 1.12A | 65°C | 46.5V | 159 lm/W | 1.35A | 80 | - | - | 560.00mm L x 39.80mm W | 5.50mm | - | Flat |
|

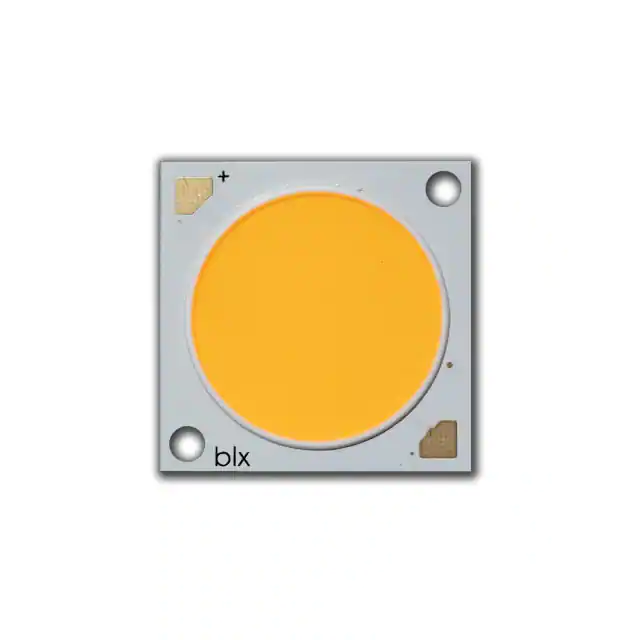

BXRE-27E6500-C-83LED COB V22 WARM WHT SQU 2700K |
3,328 |
|
Datasheet |
Gen 8 V22 Array | Tube | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 10424lm (Typ) | 1.2A | 25°C | 50.7V | 171 lm/W | 3.5A | 80 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia | Flat |
|
|
SI-B8U463B20WWLED MOD V SER GEN3 LNR 3500K |
4,796 |
|
Datasheet |
V Gen3 | Tray | Active | LED Module | White, Warm | 3500K | - | Linear Light Strip | 7680lm (7150lm ~ 8440lm) | 1.01A | 65°C | 45V | 169 lm/W | 2.02A | 80 | 118° | - | 1120.00mm L x 18.00mm W | 3.70mm | - | Flat |
|

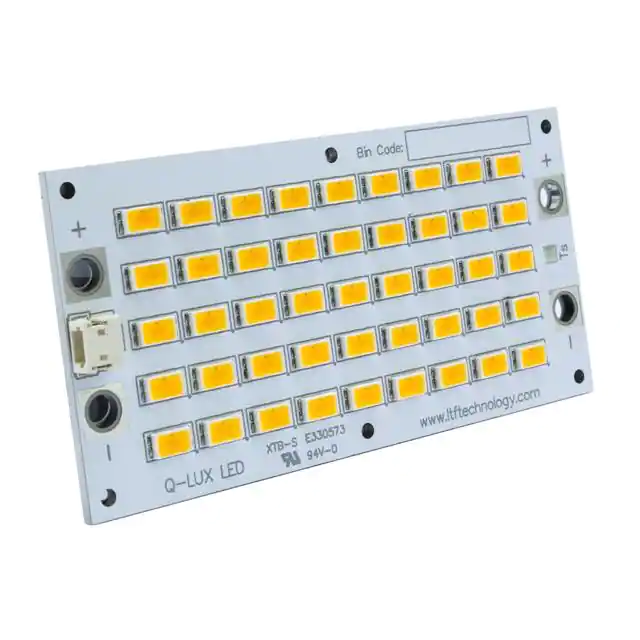

QLUX10W350C28V27K8CRLED ENG QLUX NEUT WHT RECT 2700K |
2,434 |
|
Datasheet |
QLUX | Bag | Active | LED Engine | White, Neutral | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 822lm | 350mA | 25°C | 28V | 83 lm/W | 350mA | 80 | 160° | With Connector | 83.90mm L x 41.95mm W | 3.50mm | - | Flat |
|
QLUX10W350C28V30K8CRLED ENG QLUX NEUT WH RECT 3000K |
2,966 |
|
Datasheet |
QLUX | Bag | Active | LED Engine | White, Neutral | 3000K 3-Step MacAdam Ellipse | - | Rectangle | 822lm | 350mA | 25°C | 28V | 83 lm/W | 350mA | 80 | 160° | With Connector | 83.90mm L x 41.95mm W | 3.50mm | - | Flat |
|

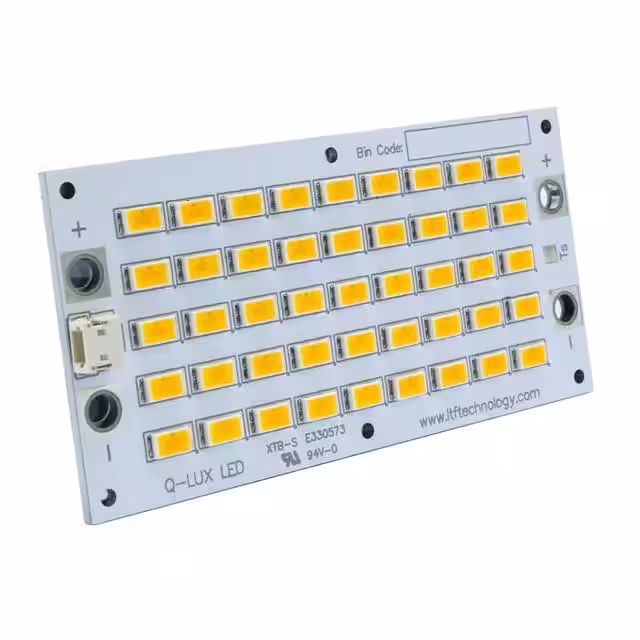

QLUX10W350C28V27K9CRLED ENG QLUX NEUT WHT RECT 2700K |
1,937 |
|
Datasheet |
QLUX | Bag | Active | LED Engine | White, Neutral | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 822lm | 350mA | 25°C | 28V | 83 lm/W | 350mA | 90 | 160° | With Connector | 83.90mm L x 41.95mm W | 3.50mm | - | Flat |
|
|
CMU2258-0000-000P0H0A30GLED COB XLAMP WARM WHT SQ 3000K |
2,117 |
|
Datasheet |
XLamp® CMU2258 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8651lm (Typ) | 1.08A | 85°C | 50.5V | 159 lm/W | 2.88A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
CXA2011-0000-000P00J050HLED COB XLAMP COOL WHT SQU 5000K |
4,989 |
|
- |
XLamp® CXA2011 | Tube | Obsolete | Chip On Board (COB) | White, Cool | 5000K 2-Step MacAdam Ellipse | - | Square | 1120lm (1040lm ~ 1200lm) | 270mA | 85°C | 40V | 104 lm/W | 1A | 70 | 120° | - | 22.00mm L x 22.00mm W | 2.28mm | - | Flat |
|
CXA1520-0000-000N0HN240GLED COB XLAMP NEUT WHT SQU 4000K |
3,350 |
|
Datasheet |
XLamp® CXA1520 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 1650lm (1590lm ~ 1710lm) | 500mA | 85°C | 36V | 92 lm/W | 900mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia | Flat |
|
|
CXA1520-0000-000N00P240FLED COB XLAMP NEUT WHT SQU 4000K |
3,247 |
|
Datasheet |
XLamp® CXA1520 | Tray | Obsolete | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 500mA | 85°C | 35V | 108 lm/W | 900mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 8.90mm Dia | Flat |
|
|
CLU04Q-1211E1-402H5X3LED COB CLU04Q NEUT WHT SQ 4000K |
4,766 |
|
Datasheet |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 5404lm (Typ) | 990mA | 85°C | 33.8V | 150 lm/W | 2.53A | 90 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU04Q-1211E1-303L7X4LED COB CLU04Q WM WHT SQ 3000K |
4,444 |
|
Datasheet |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6344lm (Typ) | 990mA | 85°C | 33.8V | 176 lm/W | 2.53A | 70 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU04Q-1211E1-403L7X4LED COB CLU04Q NEUT WHT SQ 4000K |
4,703 |
|
Datasheet |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6380lm (Typ) | 990mA | 85°C | 33.8V | 177 lm/W | 2.53A | 70 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|

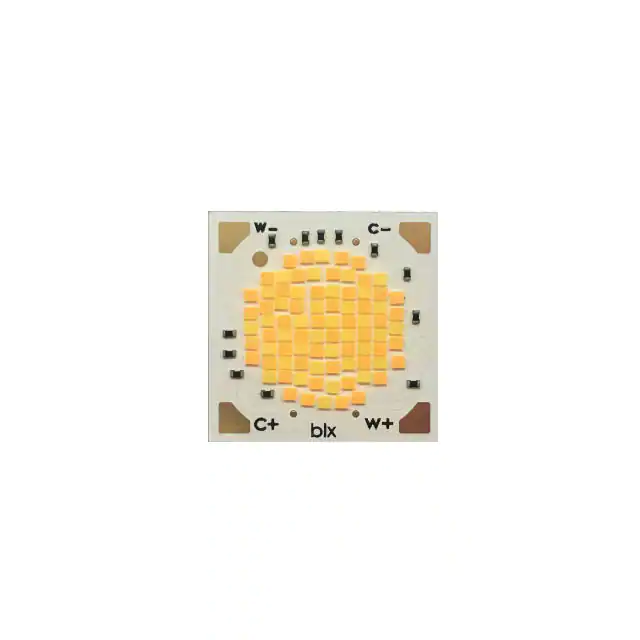

BXRV-TR-1840G-20A0-A-25-S2LED COB VESTA WHITE ROUND 1800K |
3,731 |
|
Datasheet |
Vesta™ SE Tunable White Gen 2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm / White, Neutral | 1800K 5-Step MacAdam Ellipse, 4000K 3-Step MacAdam Ellipse | - | Round | 1215lm Warm White, 1980lm Neutral White | 500mA | 25°C | 35.2V Warm White, 36.3V Neutral White | 77 lm/W Warm White, 121 lm/W Neutral White | 700mA | 90 | 130° | With Holder | 36.20mm Dia | 3.80mm | 14.30mm Dia | Flat |
|
|
CLU04Q-1211E1-352H5X3LED COB CLU04Q WARM WHT SQ 3500K |
4,423 |
|
Datasheet |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 5202lm (Typ) | 990mA | 85°C | 33.8V | 144 lm/W | 2.53A | 90 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU04Q-1211E1-503L7X4LED COB CLU04Q COOL WHT SQ 5000K |
3,237 |
|
Datasheet |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 6404lm (Typ) | 990mA | 85°C | 33.8V | 178 lm/W | 2.53A | 70 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU04Q-1211E1-352M2X2LED COB CLU04Q WARM WHT SQ 3500K |
1,918 |
|
Datasheet |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 2-Step MacAdam Ellipse | - | Square | 5948lm (Typ) | 990mA | 85°C | 33.8V | 165 lm/W | 2.53A | 80 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU04Q-1211E1-302H5X3LED COB CLU04Q WARM WHT SQ 3000K |
4,910 |
|
Datasheet |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 5116lm (Typ) | 990mA | 85°C | 33.8V | 142 lm/W | 2.53A | 90 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
CLU04Q-1211E1-302M2X2LED COB CLU04Q WARM WHT SQ 3000K |
2,459 |
|
Datasheet |
CLU04Q | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 5814lm (Typ) | 990mA | 85°C | 33.8V | 161 lm/W | 2.53A | 80 | - | With Connector | 28.00mm L x 28.00mm W | 1.40mm | 22.00mm Dia | Flat |
|
|
BXRV-TR-2765G-20A0-A-23-S2LED COB VESTA WHITE ROUND 6500K |
1,376 |
|
Datasheet |
Vesta™ SE Tunable White Gen 2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm / White, Cool | 2700K 3-Step MacAdam Ellipse, 6500K 3-Step MacAdam Ellipse | - | Round | 1527lm Warm White, 1762lm Cool White | 500mA | 25°C | 35.2V Warm White, 36.3V Cool White | 96 lm/W Warm White, 108 lm/W Cool White | 700mA | 90 | 130° | With Holder | 36.20mm Dia | 3.80mm | 14.30mm Dia | Flat |
