Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UCC21732QDWQ1DGTL ISO 5.7KV 1CH GT DVR 16SOIC |
808 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Last Time Buy | Capacitive Coupling | 1 | 5700Vrms | 150V/ns | 130ns, 130ns | 30ns | 28ns, 24ns (Max) | 10A, 10A | 10A | - | - | 13V ~ 33V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, TUV, UL, VDE |
|
PS9905-Y-V-AXOPTOISO 7.5KV 1CH GT DVR 8LSDIP |
1,271 |
|
- |
- | 8-SOIC (0.543", 13.80mm Width) | Strip | Not For New Designs | Optical Coupling | 1 | 7500Vrms | 25kV/µs | 150ns, 150ns | 75ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 8-LSDIP | CSA, SEMKO, UL, VDE |
|
|
ACPL-33JT-500EOPTOISO 5KV 1CH GATE DVR 16SOIC |
850 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 30kV/µs | 250ns, 300ns | 230ns | 76ns, 41ns | 2A, 2A | 2.5A | 1.55V | 20 mA | 4.5V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, IEC/EN/DIN, UR |
|
|
ACPL-34JT-500EOPTOISO 5KV 1CH GATE DVR 16SO |
850 |
|
Datasheet |
R²Coupler™ | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 30kV/µs | 250ns, 280ns | 100ns | 60ns, 50ns | 750mA, 1A | 2.5A | 1.55V | 20 mA | 15V ~ 25V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|

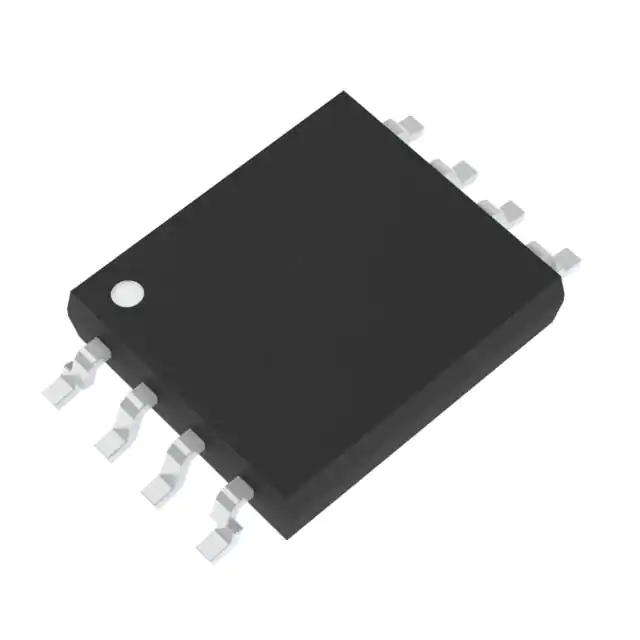

PS9332L2-AXOPTOISO 5KV 1CH GATE DVR 8SOIC |
360 |
|
Datasheet |
- | 8-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 200ns, 200ns | 75ns | 17ns, 17ns | 1.5A, 1.5A | 2A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UL, VDE |
|
|
UCC21736QDWQ1DGTL ISO 5.7KV 1CH GT DVR 16SOIC |
2,138 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | 1 | 5700Vrms | 150V/ns | 90ns, 90ns | 25ns | 28ns, 24ns (Max) | 10A, 10A | 10A | - | - | 13V ~ 33V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | UL, VDE |
|
|
PS9332L-V-AXOPTOISO 5KV 1CH GATE DVR 8SOIC |
340 |
|
Datasheet |
- | 8-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 200ns, 200ns | 75ns | 17ns, 17ns | 1.5A, 1.5A | 2A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CSA, UL, VDE |
|
SIC1182K-TLDGT ISO 5KV 1CH GT DVR ESOP-R16B |
547 |
|
Datasheet |
SCALE-iDriver™ | 16-PowerSOIC (0.350", 8.89mm Width), 15 Leads | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 5000Vrms | 500V/µs (Typ) | 305ns, 325ns | - | 475ns, 447ns | 7.8A, 7.3A | 8A | - | - | 18V ~ 28V | - | - | -40°C ~ 125°C | Surface Mount | eSOP-R16B | UL |
|
|
ISO5852SMDWREPDGTL ISO 5.7KV 1CH GT DVR 16SOIC |
346 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5700Vrms | 100kV/µs | 110ns, 110ns | - | 18ns, 20ns | 1.5A, 3.4A | 2.7A, 5.5A | - | - | 15V ~ 30V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, TUV, UL, VDE |
|
PS9402-AXOPTOISO 5KV 1CH GATE DVR 16SSOP |
4,463 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Bulk | Not For New Designs | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 200ns, 200ns | 100ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 16-SSOP | CSA, UL |
|
|
PS9402-V-AXOPTOISO 5KV 1CH GATE DVR 16SSOP |
1,501 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Strip | Not For New Designs | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 200ns, 200ns | 100ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 16-SSOP | CSA, UL, VDE |
|
FOD3182SOPTOISO 5KV 1CH GATE DVR 8SMD |
11,000 |
|
Datasheet |
- | 8-SMD, Gull Wing | Bulk | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.43V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | UL |
|
|
FOD3180SVOPTOISO 5KV 1CH GATE DVR 8SMD |
300 |
|
Datasheet |
- | 8-SMD, Gull Wing | Bulk | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 200ns, 200ns | 65ns | 75ns, 55ns | 2A, 2A | 2.5A | 1.43V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | cUL, UL, VDE |
|
|
FOD3184SVOPTOISO 5KV 1CH GATE DVR 8SMD |
695 |
|
Datasheet |
- | 8-SMD, Gull Wing | Bulk | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.43V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | IEC/EN/DIN, UL |
|
FOD3184VOPTOISO 5KV 1CH GATE DVR 8DIP |
250 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Bulk | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 210ns, 210ns | 65ns | 38ns, 24ns | 2.5A, 2.5A | 3A | 1.43V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | IEC/EN/DIN, UL |
|
|
HCPL-J312-3002.5A Gate Driver Optical Couplin |
550 |
|
- |
- | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PS9552L3-E3-AXOPTOISO 5KV 1CH GATE DVR 8SMD |
48,500 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
PS9552L2-E3-AXOPTOISO 5KV 1CH GATE DVR 8SMD |
13,000 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
PS9552-AXOPTOISO 5KV 1CH GATE DVR 8DIP |
5,288 |
|
Datasheet |
NEPOC | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
PS9552L3-V-E3-AXOPTOISO 5KV 1CH GATE DVR 8SMD |
4,000 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.65V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | BSI, CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
