Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMDLA1004S-330MTFIXED IND 33UH 4.4A 91 MOHM SMD |
1,087 |
|
Datasheet |
AMDLA1004S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 33 µH | ±20% | 4.4 A | 5.5A | Shielded | 91mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
HCMA0703-1R5-RFIXED IND 1.5UH 9A 15 MOHM SMD |
942 |
|
Datasheet |
HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 9 A | 18A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
DR1050-3R3-RFIXED IND 3.3UH 6.5A 10 MOHM SMD |
780 |
|
Datasheet |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 6.5 A | 8.2A | Shielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
AMPLA1004S-4R7MTFIXED IND 4.7UH 10A 15.5MOHM SMD |
500 |
|
Datasheet |
AMPLA1004S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 4.7 µH | ±20% | 10 A | 17A | Shielded | 15.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
74406043047FIXED IND 4.7UH 2.3A 51 MOHM SMD |
371 |
|
Datasheet |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.3 A | 1.62A | Shielded | 51mOhm Max | - | 81MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4828 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
AMPLA1004S-220MTFIXED IND 22UH 5A 74 MOHM SMD |
228 |
|
Datasheet |
AMPLA1004S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 22 µH | ±20% | 5 A | 7A | Shielded | 74mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
AMPLA1004S-100MTFIXED IND 10UH 7.5A 30 MOHM SMD |
208 |
|
Datasheet |
AMPLA1004S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 10 µH | ±20% | 7.5 A | 12A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
AMDLA1004S-101MTFIXED IND 100UH 2A 310 MOHM SMD |
185 |
|
Datasheet |
AMDLA1004S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 100 µH | ±20% | 2 A | 2.7A | Shielded | 310mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
AMDLA1004S-470MTFIXED IND 47UH 3.5A 143MOHM SMD |
167 |
|
Datasheet |
AMDLA1004S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 47 µH | ±20% | 3.5 A | 4A | Shielded | 143mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
74406043027FIXED IND 2.7UH 2.93A 32MOHM SMD |
2,355 |
|
Datasheet |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 2.93 A | 2.07A | Shielded | 32mOhm Max | - | 119MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4828 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
PA5405.153NLTFIXED IND 15UH 6.5A 65 MOHM SMD |
1,655 |
|
Datasheet |
PA5405 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 6.5 A | 10A | Shielded | 65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.138" (3.50mm) |
|
CR75NP-2R2MCFIXED IND 2.2UH 4.5A 19.5MOHM SM |
1,630 |
|
Datasheet |
CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 4.5 A | - | Unshielded | 19.5mOhm Max | - | 36.4MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
CDRH8D38NP-330NCFIXED IND 33UH 1.6A 157 MOHM SMD |
1,082 |
|
Datasheet |
CDRH8D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 1.6 A | 1.75A | Shielded | 157mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|

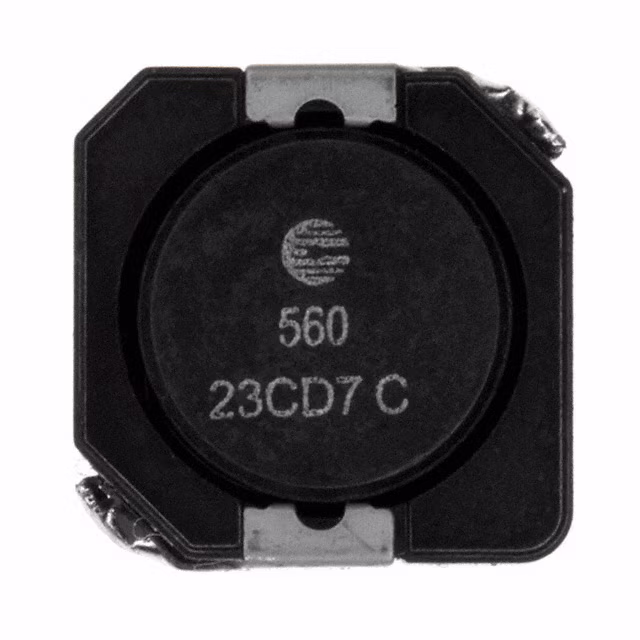

DR1050-560-RFIXED IND 56UH 1.96A 123MOHM SMD |
1,006 |
|
Datasheet |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±30% | 1.96 A | 1.94A | Shielded | 123mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
BMRF00101040150MA1INDUCTOR POWER |
887 |
|
Datasheet |
BMRX | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 6.25 A | 6A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.398" W (11.60mm x 10.10mm) | 0.157" (4.00mm) |
|
DR1050-471-RFIXED IND 470UH 640MA 1.069 OHM |
639 |
|
Datasheet |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±30% | 640 mA | 620mA | Shielded | 1.069Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
6000-150K-RCFIXED IND 15UH 2.9A 56 MOHM TH |
638 |
|
Datasheet |
6000 | Radial, Vertical Cylinder | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 2.9 A | - | Unshielded | 56mOhm Max | 50 @ 2.52MHz | 12MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
6000-1R5M-RCFIXED IND 1.5UH 8.5A 16 MOHM TH |
550 |
|
Datasheet |
6000 | Radial, Vertical Cylinder | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 8.5 A | - | Unshielded | 16mOhm Max | 20 @ 7.96MHz | 130MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
6100-391K-RCFIXED IND 390UH 1A 0.64OHM TH |
530 |
|
Datasheet |
6100 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 1 A | - | Unshielded | 640mOhm Max | - | 2.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.433" Dia (11.00mm) | 0.413" (10.50mm) |
|
|
6100-101K-RCFIXED IND 100UH 1.98A 0.16OHM TH |
505 |
|
Datasheet |
6100 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.98 A | - | Unshielded | 160mOhm Max | - | 5.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 0.433" Dia (11.00mm) | 0.413" (10.50mm) |
