Ferrite Cores
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

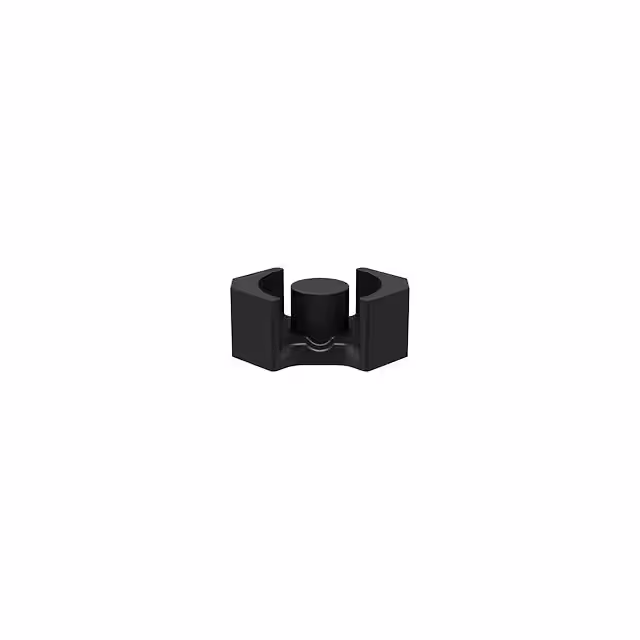

B65819J0160J041FERRITE CORE RM 160NH N41 2PCS |
1,249 |
|
Datasheet |
RM7 | Box | Active | RM | RM 7 | N41 | - | 160 nH | ±5% | Gapped | 90.0 | 2800 | 0.7 | 30.4 | 43.0 | 39.0 | 1310.0 | Uncoated | 0.265" (6.75mm) | 0.799" (20.30mm) | - |
|
B65819J0250J041FERRITE CORE RM 250NH N41 2PCS |
4,378 |
|
Datasheet |
RM7 | Box | Active | RM | RM 7 | N41 | - | 250 nH | ±5% | Gapped | 141.0 | 2800 | 0.7 | 30.4 | 43.0 | 39.0 | 1310.0 | Uncoated | 0.265" (6.75mm) | 0.799" (20.30mm) | - |
|
B65819J0100J041RM7 N41 100 +5% - |
1,143 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
T60004L2025W621FERRITE CORE TOROID 9UH |
3,580 |
|
Datasheet |
- | Box | Active | Toroid | - | - | 1.075" (27.30mm) | 9 µH | - | Ungapped | - | - | - | 71.0 | 19.0 | - | - | Epoxy | 0.484" (12.30mm) | - | - |
|
|
T60004L2025W622FERRITE CORE TOROID 22.5UH |
1,472 |
|
Datasheet |
- | Box | Active | Toroid | - | - | 1.075" (27.30mm) | 22.5 µH | - | Ungapped | - | - | - | 71.0 | 19.0 | - | - | Epoxy | 0.484" (12.30mm) | - | - |
|
|
RM6R-3H3-A315/NFerrite Misc |
3,621 |
|
Datasheet |
- | Bulk | Active | RM | RM 6 | 3H3 | - | 315 nH | ±3% | Gapped | 203.0 | - | 0.81 | 25.6 | 32.0 | 23.8 | 810.0 | Uncoated | 0.244" (6.20mm) | 0.701" (17.90mm) | 0.291" (7.40mm) |
|
|
RM6R-3H3-A250/NFerrite Misc |
4,688 |
|
Datasheet |
RM6R | Bulk | Active | RM | RM 6 | 3H3 | - | 250 nH | ±3% | Gapped | 161.0 | - | 0.81 | 25.6 | 32.0 | 23.8 | 810.0 | Uncoated | 0.244" (6.20mm) | 0.701" (17.90mm) | 0.291" (7.40mm) |
|
|
RM6R-3H3-A160/NFerrite Misc |
3,579 |
|
Datasheet |
RM6R | Bulk | Active | RM | RM 6 | 3H3 | - | 160 nH | ±3% | Gapped | 103.0 | - | 0.81 | 25.6 | 32.0 | 23.8 | 810.0 | Uncoated | 0.244" (6.20mm) | 0.701" (17.90mm) | 0.291" (7.40mm) |
|
|
RM6R-3D3-A160/NFerrite Misc |
2,831 |
|
Datasheet |
- | Bulk | Active | RM | RM 6 | 3D3 | - | 160 nH | ±3% | Gapped | 103.0 | - | 0.81 | 25.6 | 32.0 | 23.8 | 810.0 | Uncoated | 0.244" (6.20mm) | 0.701" (17.90mm) | 0.291" (7.40mm) |
|
|
RM6R-3D3-A100/NFerrite Misc |
2,418 |
|
Datasheet |
- | Bulk | Active | RM | RM 6 | 3D3 | - | 100 nH | - | Gapped | - | - | 0.81 | 25.6 | 32.0 | 23.8 | 810.0 | Uncoated | 0.244" (6.20mm) | 0.701" (17.90mm) | 0.291" (7.40mm) |
|
|
RM6R-3H3-A100/NFerrite Misc |
2,597 |
|
Datasheet |
RM6R | Bulk | Active | RM | RM 6 | 3H3 | - | 100 nH | ±3% | Gapped | 64.0 | - | 0.81 | 25.6 | 32.0 | 23.8 | 810.0 | Uncoated | 0.244" (6.20mm) | 0.701" (17.90mm) | 0.291" (7.40mm) |
|
|
RM6R-3D3-E100/NFerrite Misc |
4,734 |
|
Datasheet |
RM6R | Bulk | Active | RM | RM 6 | 3D3 | - | 100 nH | ±3% | Gapped | 65.0 | - | 0.81 | 25.6 | 32.0 | 23.8 | 810.0 | Uncoated | 0.244" (6.20mm) | 0.701" (17.90mm) | 0.291" (7.40mm) |
|
|
RM6R-3H3-A400/NFerrite Misc |
2,877 |
|
Datasheet |
- | Bulk | Active | RM | RM 6 | 3H3 | - | 400 nH | ±3% | Gapped | - | - | - | 25.6 | - | - | - | Uncoated | - | - | - |
|
|
E47/20/16-3F36-G200FERRITE CORE E 3F36 |
3,184 |
|
Datasheet |
- | Bulk | Active | E | E 47 x 20 x 16 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.772" (19.60mm) | 1.846" (46.90mm) | 0.614" (15.60mm) |
|
|
TX32/19/13-3E6FERRITE CORE TOROID |
2,291 |
|
Datasheet |
- | Bulk | Active | Toroid | TX 32 x 19 x 13 | - | 1.281" (32.55mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.528" (13.40mm) | - | - |
|
|
TX32/19/13-3E5Ferrite Misc |
4,903 |
|
Datasheet |
TX32/19/13 | Bulk | Active | Toroid | TX 32 x 19 x 13 | 3E5 | 1.281" (32.55mm) | - | - | Ungapped | - | - | 0.99 | 76.0 | 76.5 | - | 5820.0 | Epoxy | 0.528" (13.40mm) | - | - |
|
|
B64290A0720X097FERRITE CORE TOROID |
4,642 |
|
Datasheet |
T36/23/10 | Box | Active | Toroid | - | - | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | - | - | - |
|
|
RM10/I-3F3Ferrite Misc |
3,503 |
|
Datasheet |
- | Bulk | Active | RM | RM 10 | 3F3 | - | 4.05 µH | ±25% | Ungapped | 1490.0 | - | 0.462 | 44.6 | 96.6 | 89.1 | 4310.0 | Uncoated | 0.366" (9.30mm) | 1.122" (28.50mm) | 0.531" (13.50mm) |
|
|
PQ26/25-3C90-E114Ferrite Misc |
2,588 |
|
Datasheet |
- | Bulk | Active | PQ | PQ 26 x 25 | 3C90 | - | 114 nH | - | Gapped | - | - | 0.451 | 54.3 | 120.0 | 108.0 | 6530.0 | Uncoated | 0.486" (12.35mm) | 1.075" (27.30mm) | 0.748" (19.00mm) |
|
|
PQ26/25-3C94-E250Ferrite Misc |
1,432 |
|
Datasheet |
PQ26/25 | Bulk | Active | PQ | PQ 26 x 25 | 3C94 | - | 250 nH | ±3% | Gapped | 1890.0 | - | 0.451 | 54.3 | 120.0 | 108.0 | 6530.0 | Uncoated | 0.486" (12.35mm) | 1.075" (27.30mm) | 0.748" (19.00mm) |
