Ferrite Cores
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETD34/17/11-3C95-G250Ferrite Misc |
1,744 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TGPS-12-8PFerrite Misc |
1,518 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
E32/16/9-3F3Ferrite Misc |
1,359 |
|
Datasheet |
- | Bulk | Active | E | E 32 x 16 x 9 | 3F3 | - | 2.3 µH | ±25% | Ungapped | 1630.0 | - | - | 74.0 | 83.0 | 83.0 | - | Uncoated | 0.646" (16.40mm) | 1.260" (32.00mm) | 0.374" (9.50mm) |
|
|
RM5/ILP-3E6Ferrite Misc |
1,240 |
|
- |
- | Bulk | Active | RM | RM 5 | 3E6 | - | 10 µH | -30%, +40% | Ungapped | 5680.0 | - | 0.71 | 17.5 | 24.5 | 18.1 | 430.0 | Uncoated | 0.154" (3.90mm) | 0.575" (14.60mm) | 0.268" (6.80mm) |
|
|
RM5/ILP-3E5Ferrite Misc |
1,124 |
|
- |
- | Bulk | Active | RM | RM 5 | 3E5 | - | 8.5 µH | -30%, +40% | Ungapped | 4830.0 | - | 0.71 | 17.5 | 24.5 | 18.1 | 430.0 | Uncoated | 0.307" (7.80mm) | 0.575" (14.60mm) | 0.268" (6.80mm) |
|
|
B66319G0250X187FERRITE CORE E N87 |
4,899 |
|
Datasheet |
E30/15/7 | Box | Active | E | E 30 x 15 x 7 | N87 | - | - | - | Gapped | - | 2200 | 1.12 | 67.0 | 60.0 | 49.0 | 4000.0 | Uncoated | 0.598" (15.20mm) | 1.181" (30.00mm) | 0.287" (7.30mm) |
|
B66319G1000X187FERRITE CORE E N87 |
4,126 |
|
Datasheet |
E30/15/7 | Box | Active | E | E 30 x 15 x 7 | N87 | - | - | - | Gapped | - | 2200 | 1.12 | 67.0 | 60.0 | 49.0 | 4000.0 | Uncoated | 0.598" (15.20mm) | 1.181" (30.00mm) | 0.287" (7.30mm) |
|
B66479P0000X197FERRITE CORE I N97 1PC |
4,931 |
|
Datasheet |
I13/9/1 | Box | Active | I | I 13 x 1 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.043" (1.10mm) | 0.504" (12.80mm) | 0.343" (8.70mm) |
|
|
0P40905UGPOT CORE |
3,281 |
|
Datasheet |
- | Bulk | Active | P | - | P | 0.366" (9.30mm) | 1.1 µH | - | Ungapped | - | 2500 | - | 12.5 | 10.1 | 8.0 | 126.0 | Uncoated | 0.106" (2.70mm) | - | - |
|
|
ZM41003TCTOROID EPOXY COATED |
4,610 |
|
Datasheet |
- | Bulk | Active | Toroid | - | M | 0.405" (10.29mm) | 6.644 µH | ±30% | Ungapped | - | 15000 | - | 20.7 | 7.3 | - | 151.0 | Epoxy | 0.150" (3.81mm) | - | - |
|
|
0P40908UGPOT CORE |
4,206 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HF41408UGDOUBLE SLAB CP W/HOLE |
2,202 |
|
- |
- | Bulk | Active | EQ | - | F | - | 1.99 µH | ±25% | Ungapped | - | 3000 | - | 20.6 | 21.0 | 19.2 | 433.0 | Uncoated | 0.334" (8.48mm) | 0.551" (14.00mm) | 0.370" (9.40mm) |
|
|
EP7-3E6Ferrite Misc |
1,391 |
|
Datasheet |
- | Bulk | Active | EP | EP 7 | 3E6 | - | 5.8 µH | -30%, +40% | Ungapped | 6680.0 | - | 1.45 | 15.5 | 10.7 | 8.55 | 165.0 | Uncoated | 0.148" (3.75mm) | 0.370" (9.40mm) | 0.256" (6.50mm) |
|
|
EP7-3E5Ferrite Misc |
3,351 |
|
Datasheet |
- | Bulk | Active | EP | EP 7 | 3E5 | - | 5.2 µH | -30%, +40% | Ungapped | 5990.0 | - | 1.45 | 15.5 | 10.7 | 8.55 | 165.0 | Uncoated | 0.148" (3.75mm) | 0.370" (9.40mm) | 0.256" (6.50mm) |
|
|
6698211621FERRITE CORE PQ SET |
3,581 |
|
Datasheet |
- | Bulk | Active | PQ | - | - | - | - | ±25% | Ungapped | - | 2400 | 60.0 | 36.9 | 61.5 | 60.1 | 2270.0 | Uncoated | 0.315" (8.00mm) | 0.807" (20.50mm) | 0.551" (14.00mm) |
|
|
00X3007E060X FLUX 3007 E-CORE |
2,855 |
|
- |
- | Bulk | Active | E | - | XFlux | - | 71 nH | ±8% | Ungapped | - | 60 | - | 65.6 | 60.1 | - | 3940.0 | Uncoated | 0.594" (15.10mm) | 1.185" (30.10mm) | 0.278" (7.06mm) |
|
|
ER9.5/2.5/5-3C96-A100-SFERRITE CORE ER 100NH 3C96 2PC |
2,530 |
|
Datasheet |
- | Bulk | Active | ER | ER 9.5 x 2.5 x 5 | 3C96 | - | 100 nH | ±5% | Gapped | 133.0 | - | 1.67 | 14.2 | 8.47 | 7.6 | 120.0 | Uncoated | - | 0.374" (9.50mm) | 0.197" (5.00mm) |
|

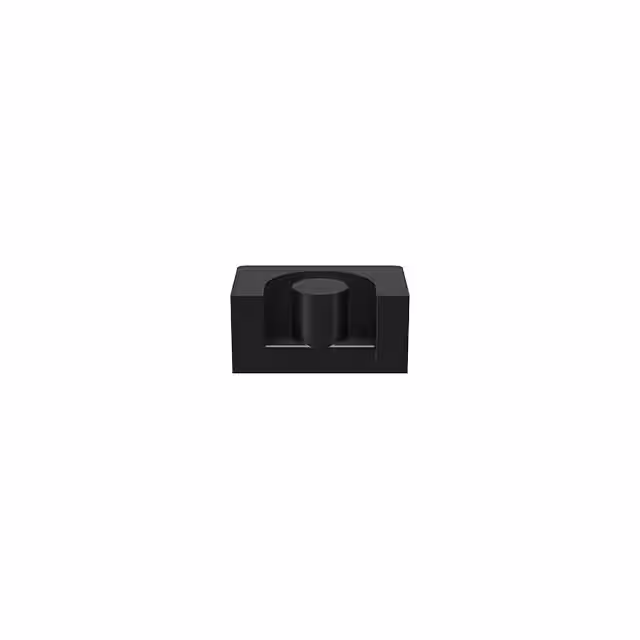

B65839A0100A045FERRITE CORE EP 100NH N45 2PCS |
3,088 |
|
Datasheet |
EP7 | Box | Active | EP | EP 7 | N45 | - | 100 nH | ±3% | Gapped | 121.0 | 3800 | 1.52 | 15.7 | 10.3 | 8.5 | 162.0 | Uncoated | 0.148" (3.75mm) | 0.370" (9.40mm) | 0.256" (6.50mm) |
|
B65839A0160J045FERRITE CORE EP 160NH N45 2PCS |
2,848 |
|
Datasheet |
EP7 | Box | Active | EP | EP 7 | N45 | - | 160 nH | ±5% | Gapped | 194.0 | 3800 | 1.52 | 15.7 | 10.3 | 8.5 | 162.0 | Uncoated | 0.148" (3.75mm) | 0.370" (9.40mm) | 0.256" (6.50mm) |
|
|
B65839A0200C045FERRITE CORE EP 200NH N45 2PCS |
3,976 |
|
Datasheet |
EP7 | Box | Active | EP | EP 7 | N45 | - | 200 nH | ±6% | Gapped | 243.0 | 3800 | 1.52 | 15.7 | 10.3 | 8.5 | 162.0 | Uncoated | 0.148" (3.75mm) | 0.370" (9.40mm) | 0.256" (6.50mm) |
