| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E13/6/6-3C96-G200FERRITE CORE E 3C96 |
1,441 |
|
Datasheet |
- | Bulk | Active | E | E 13 x 6 x 6 | 3C96 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.224" (5.70mm) | 0.500" (12.70mm) | 0.252" (6.40mm) |
|
|
E13/6/6-3F3Ferrite Misc |
1,259 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
0R41425ECE-CORE |
4,969 |
|
Datasheet |
- | Bulk | Active | Planar E | - | R | - | 1.653 µH | - | Ungapped | - | 2300 | - | 16.7 | 14.7 | 14.7 | 244.0 | Uncoated | 0.098" (2.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
|
0P42515UCU-SHAPE CORE |
4,068 |
|
Datasheet |
- | Bulk | Active | U | - | P | - | 1.333 µH | - | Ungapped | - | 2500 | - | 83.4 | 40.4 | 40.4 | 3370.0 | Uncoated | 0.626" (15.90mm) | 1.000" (25.40mm) | 0.250" (6.35mm) |
|
|
CR41434ICI-CORE WITH CLIP SLOTS |
4,436 |
|
Datasheet |
- | Bulk | Active | Planar E/I | - | R | - | 1.504 µH | - | Ungapped | - | 2300 | - | 16.4 | 14.2 | 11.4 | 230.0 | Uncoated | 0.071" (1.80mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
|
B64290L0693X830R14/9/6 N30 RINGKERN |
4,974 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
YC41003TCTOROID PARYLENE COATED |
2,563 |
|
Datasheet |
- | Bulk | Active | Toroid | - | C | 0.388" (9.86mm) | 399 nH | ±25% | Ungapped | - | 900 | - | 20.7 | 7.3 | - | 151.0 | Parylene | 0.133" (3.38mm) | - | - |
|
|
COV-9Cover |
4,892 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B64290L0044X072FERRITE CORE TOROID N72 |
3,774 |
|
- |
TX12.5/7.5/5 | Box | Active | Toroid | - | N72 | - | - | - | Gapped | - | 2500 | - | - | - | - | - | Epoxy | - | - | - |
|
|
E19/8/5-3F36FERRITE CORE E 3F36 |
3,195 |
|
Datasheet |
- | Bulk | Active | E | E 19 x 8 x 5 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.319" (8.10mm) | 0.752" (19.10mm) | 0.185" (4.70mm) |
|
|
TUB4/3/13-4B1Ferrite Misc |
3,653 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TN13/7.5/5-3C90Ferrite Misc |
3,680 |
|
- |
- | Bulk | Obsolete | Toroid | TN 13 x 7.5 x 5 | 3C90 | 0.512" (13.00mm) | 1.17 µH | ±25% | Ungapped | - | 2300 | 2.46 | 30.1 | 12.2 | - | 368.0 | Nylon | 0.213" (5.40mm) | - | - |
|
|
E16/12/5-3C90FERRITE CORE E 3C90 |
2,440 |
|
Datasheet |
- | Bulk | Active | E | E 16 x 12 x 5 | 3C90 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.482" (12.25mm) | 0.630" (16.00mm) | 0.191" (4.85mm) |
|
|
8998151521FERRITE CORE EFD SET |
4,163 |
|
Datasheet |
- | Bulk | Active | EFD | - | - | - | - | ±25% | Ungapped | - | 2400 | 223.0 | 34.4 | 15.4 | 12.7 | 531.0 | Uncoated | 0.295" (7.50mm) | - | 0.183" (4.65mm) |
|
|
9495201002FERRITE CORE E 95 SET |
4,493 |
|
Datasheet |
- | Bulk | Active | E | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 134.0 | 20.1 | 15.3 | 15.0 | 315.0 | Uncoated | - | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
|
9498101002FERRITE CORE E SET |
4,979 |
|
Datasheet |
- | Bulk | Active | E | - | - | - | - | ±25% | Ungapped | - | 2400 | 193.0 | 37.7 | 19.6 | 18.9 | 739.0 | Uncoated | 0.317" (8.05mm) | - | 0.177" (4.50mm) |
|
|
0W41305TCTOROID UNCOATED |
2,417 |
|
Datasheet |
- | Bulk | Active | Toroid | - | W | 0.500" (12.70mm) | 4.76 µH | ±30% | Ungapped | - | 10000 | - | 31.2 | 11.9 | - | 372.0 | Uncoated | 0.200" (5.08mm) | - | - |
|
B64290P0683X038FERRITE CORE TOROID 2.2UH T38 |
4,147 |
|
Datasheet |
TC3.1/1.3/1.3 | Box | Active | Toroid | - | T38 | 0.121" (3.07mm) | 2.2 µH | ±30% | Ungapped | - | 9900 | 5.65 | 5.99 | 1.06 | - | 6.4 | Parylene | 0.051" (1.29mm) | - | - |
|
B62152P0015X030FERRITE CORE 2 HOLE 1.6UH N30 |
4,485 |
|
Datasheet |
MHB2/P-3.6/2.1/1.4 | Box | Active | Multi-Hole (2) | - | N30 | - | 1.6 µH | ±30% | Ungapped | - | 4300 | 3.22 | 3.7 | 1.2 | - | 4.5 | Parylene | 0.057" (1.45mm) | 0.144" (3.65mm) | 0.085" (2.15mm) |
|

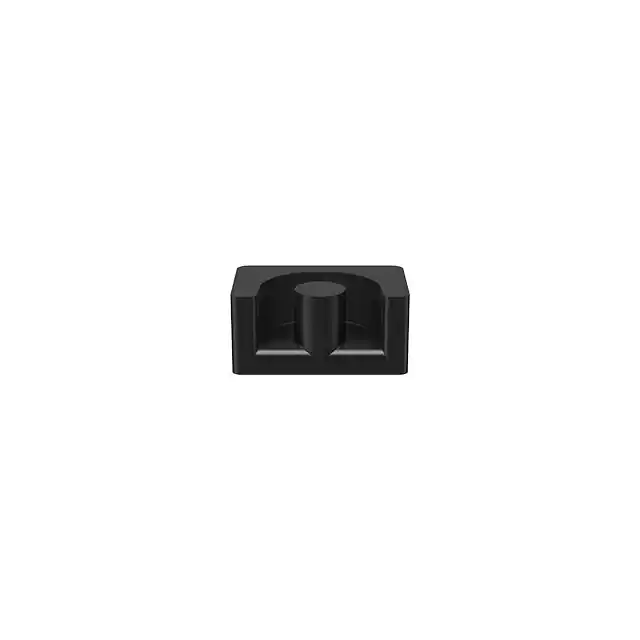

B65855A0000R049FERRITE CORE EP 350NH N49 |
4,983 |
|
Datasheet |
- | Box | Not For New Designs | EP | EP 5 | N49 | - | 350 nH | -20%, +30% | Ungapped | 880.0 | 1500 | 3.149 | 9.73 | 3.09 | 2.3 | 30.0 | Uncoated | 0.112" (2.85mm) | 0.242" (6.15mm) | 0.154" (3.90mm) |
