| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B64290L0699X035FERRITE CORE TOROID T35 |
1,711 |
|
Datasheet |
B64290 | Box | Active | Toroid | - | T35 | - | - | - | Gapped | - | 6000 | - | - | - | - | - | Epoxy | - | - | - |
|
|
T63/38/25-3C94FERRITE CORE TOROID 3C94 |
3,553 |
|
Datasheet |
- | Bulk | Active | Toroid | - | 3C94 | 2.480" (63.00mm) | - | ±25% | Ungapped | 2300.0 | - | 0.497 | 152.0 | 306.0 | - | 46500.0 | Uncoated | 0.984" (25.00mm) | - | - |
|
|
B64290A0084X087FERRITE CORE TOROID 2.88UH N87 |
3,063 |
|
Datasheet |
T102/66/15 | Box | Active | Toroid | R 102 x 65.8 x 15 | N87 | 4.016" (102.00mm) | 2.88 µH | ±25% | Ungapped | - | 2200 | 0.96 | 255.3 | 267.2 | - | 68220.0 | Uncoated | 0.591" (15.00mm) | - | - |
|
B64290L0730X830FERRITE CORE TOROID 5.4UH N30 |
1,183 |
|
Datasheet |
TX87/54.3/13.5 | Box | Active | Toroid | - | N30 | 3.516" (89.30mm) | 5.4 µH | ±25% | Ungapped | - | 4300 | 0.99 | 213.9 | 216.7 | - | 46360.0 | Epoxy | 0.573" (14.80mm) | - | - |
|
|
B64290A0084X038FERRITE CORE TOROID |
3,724 |
|
Datasheet |
T102/66/15 | Box | Active | Toroid | - | - | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | - | - | - |
|
B66894G0000X187FERRITE CORE E N87 |
4,705 |
|
Datasheet |
E100/60/28 | Bulk | Active | E | E 100/60/28 | N87 | - | - | -20%, +30% | Ungapped | 1930.0 | - | 0.373 | 274.0 | 735.0 | 690.0 | 201390.0 | Uncoated | 2.339" (59.40mm) | 3.949" (100.30mm) | 1.083" (27.50mm) |
|
|
U93/76/30-3C92FERRITE CORE U 3C92 |
4,500 |
|
Datasheet |
- | Bulk | Active | U | U 93 x 76 x 30 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 2.992" (76.00mm) | 3.661" (93.00mm) | 1.181" (30.00mm) |
|
|
B64290L0730X037FERRITE CORE TOROID 7UH T37 |
4,555 |
|
Datasheet |
TX87/54.3/13.5 | Box | Active | Toroid | - | T37 | 3.516" (89.30mm) | 7 µH | ±25% | Ungapped | - | 5500 | 0.99 | 213.9 | 216.7 | - | 46360.0 | Epoxy | 0.573" (14.80mm) | - | - |
|
|
TX102/66/15-3C94FERRITE CORE TOROID 3C94 |
3,384 |
|
Datasheet |
- | Bulk | Active | Toroid | - | 3C94 | 4.031" (102.40mm) | - | ±25% | Ungapped | - | 4300 | 0.956 | 255.0 | 267.0 | - | 68200.0 | Epoxy | 0.602" (15.30mm) | - | - |
|
|
T102/66/15-4C65FERRITE CORE 164.4NH 4C65 |
2,073 |
|
Datasheet |
- | Bulk | Active | - | - | 4C65 | 4.016" (102.00mm) | 164.4 nH | ±25% | - | - | - | - | - | - | - | - | - | 0.591" (15.00mm) | - | - |
|

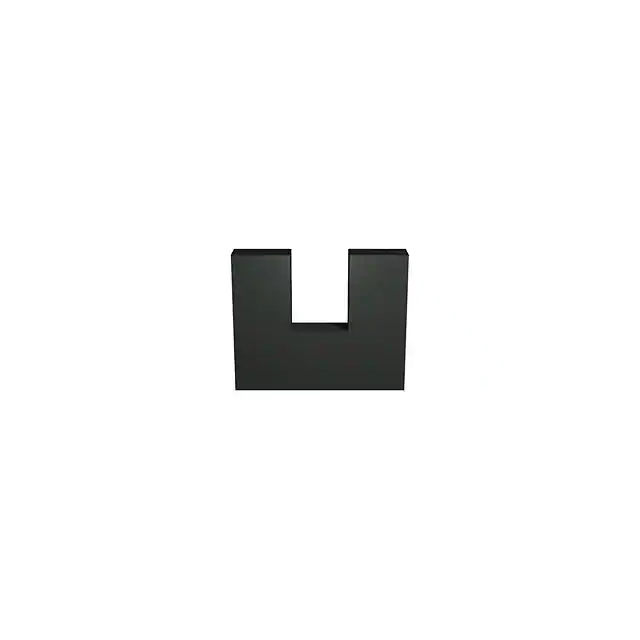

B67345B0001X097FERRITE CORE U N97 1PC |
2,192 |
|
Datasheet |
U93/76/30 | Box | Active | U | U 93 x 76 x 30 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 2.992" (76.00mm) | 3.661" (93.00mm) | 1.181" (30.00mm) |
|
|
TX102/66/15-4C65FERRITE CORE TOROID 4C65 |
3,744 |
|
Datasheet |
- | Bulk | Active | Toroid | - | 4C65 | 4.031" (102.40mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.602" (15.30mm) | - | - |
|
|
TX140/106/25-3E27FERRITE CORE TOROID 3E+27 |
3,144 |
|
Datasheet |
- | Bulk | Active | Toroid | TX 140 x 106 x 25 | 3E27 | 5.528" (140.40mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.996" (25.30mm) | - | - |
|
B65713A0000R027FERRITE CORE PM 12UH N27 2PCS |
2,420 |
|
Datasheet |
PM87/70 | Box | Active | PM | PM 87 x 70 | N27 | 3.425" (87.00mm) | 12 µH | -20%, +30% | Ungapped | 1530.0 | 2000 | 0.16 | 146.0 | 910.0 | 700.0 | 133000.0 | Uncoated | 1.378" (35.00mm) | - | - |
|
T60004L2160W758FERRITE CORE NANOCRYSTALLINE |
3,489 |
|
Datasheet |
- | Box | Active | - | - | - | 6.496" (165.00mm) | - | - | Ungapped | - | - | - | 424.0 | 475.0 | - | - | Uncoated | 1.122" (28.50mm) | - | - |
|
B66483P0000X187FERRITE CORE I N87 1PC |
3,011 |
|
Datasheet |
I20/2.3/14 | Box | Active | I | I 20 x 2 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.091" (2.30mm) | 0.787" (20.00mm) | 0.551" (14.00mm) |
|
|
2667541602FERRITE |
3,591 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FR46410ECE-CORE WITH FLAT BACK |
1,751 |
|
Datasheet |
- | Bulk | Active | Planar E | - | R | - | 14.618 µH | - | Ungapped | - | 2300 | - | 80.2 | 516.0 | 516.0 | 41400.0 | Uncoated | 0.402" (10.20mm) | 2.520" (64.00mm) | 2.000" (50.80mm) |
|
|
LRF322015MKCXCOMMON MODE COILS |
3,921 |
|
Datasheet |
FL-V | Bulk | Active | Toroid | - | Nanocrystalline | 1.386" (35.20mm) | 33.1 µH | - | Ungapped | - | 31000 | - | 80.9 | 69.0 | - | - | Uncoated | 0.681" (17.30mm) | - | - |
|
|
B66375Q0150K197E80/38/20-N97-DG150 |
