Microcontrollers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | Core Processor | Core Size | Speed | Connectivity | Peripherals | Number of I/O | Program Memory Size | Program Memory Type | EEPROM Size | RAM Size | Voltage - Supply (Vcc/Vdd) | Data Converters | Oscillator Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS2250T-32-16+IC MCU 8BIT 32KB NVSRAM 40SIMM |
4,069 |
|
Datasheet |
40-SIMM | DS225x | Tray | Obsolete | Not Verified | 8051 | 8-Bit | 16MHz | SIO, UART/USART | Power-Fail Reset, WDT | 32 | 32KB (32K x 8) | NVSRAM | - | - | 4.75V ~ 5.25V | - | External | 0°C ~ 70°C (TA) | - | - | Surface Mount | |
|
|
DS2250T-64-16+IC MCU 8BIT 64KB NVSRAM 40SIMM |
1,461 |
|
Datasheet |
40-SIMM | DS225x | Tray | Obsolete | Not Verified | 8051 | 8-Bit | 16MHz | SIO, UART/USART | Power-Fail Reset, WDT | 32 | 64KB (64K x 8) | NVSRAM | - | - | 4.75V ~ 5.25V | - | External | 0°C ~ 70°C (TA) | - | - | Surface Mount | |
|

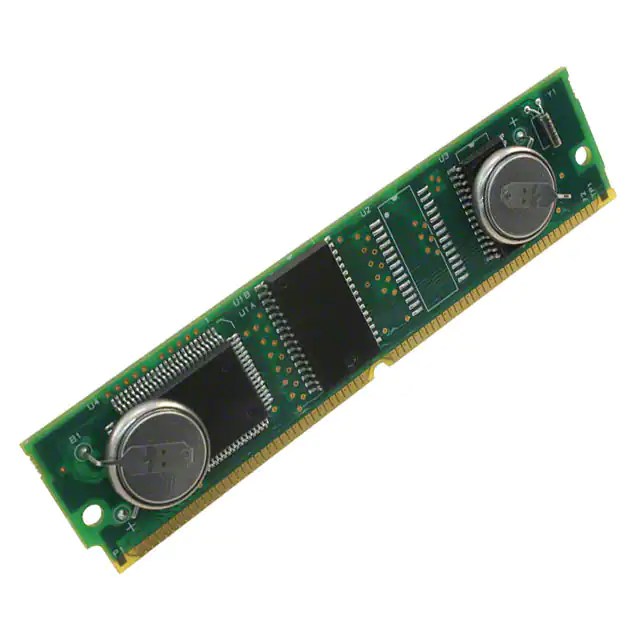

DS2251T-128-16#IC MCU 8BIT 128KB NVSRAM 72SIMM |
2,100 |
|
Datasheet |
72-SIMM | DS225x | Tray | Obsolete | Not Verified | 8051 | 8-Bit | 16MHz | SIO, UART/USART | Power-Fail Reset, WDT | 32 | 128KB (128K x 8) | NVSRAM | - | - | 4.5V ~ 5.5V | - | External | 0°C ~ 70°C (TA) | - | - | Surface Mount | |
|

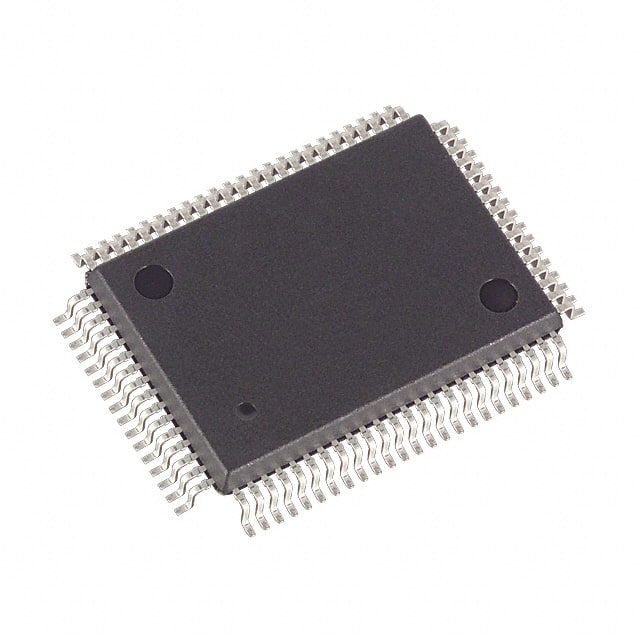

DS5000FP-16+IC MCU 8BIT EXTRNL NVSRAM 80QFP |
1,117 |
|
Datasheet |
80-BQFP | DS500x | Tray | Obsolete | Not Verified | 8051 | 8-Bit | 16MHz | EBI/EMI, SIO, UART/USART | Power-Fail Reset, WDT | 32 | External | NVSRAM | - | - | 4.75V ~ 5.25V | - | External | 0°C ~ 70°C (TA) | - | - | Surface Mount | |
|
DS80C320-FNG+IC MCU 8BIT ROMLESS 44MQFP |
2,285 |
|
Datasheet |
44-QFP | 80C | Obsolete | Not Verified | 8051 | 8-Bit | 25MHz | EBI/EMI, SIO, UART/USART | Power-Fail Reset, WDT | 32 | - | ROMless | - | 256 x 8 | 4.5V ~ 5.5V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | ||
.jpg)
|
DS80C320-QNG+T&RIC MCU 8BIT ROMLESS 44PLCC |
3,075 |
|
Datasheet |
44-LCC (J-Lead) | 80C | Tape & Reel (TR) | Obsolete | Not Verified | 8051 | 8-Bit | 25MHz | EBI/EMI, SIO, UART/USART | Power-Fail Reset, WDT | 32 | - | ROMless | - | 256 x 8 | 4.5V ~ 5.5V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
|
DS80C320-QNL+IC MCU 8BIT ROMLESS 44PLCC |
3,521 |
|
Datasheet |
44-LCC (J-Lead) | 80C | Tube | Obsolete | Not Verified | 8051 | 8-Bit | 33MHz | EBI/EMI, SIO, UART/USART | Power-Fail Reset, WDT | 32 | - | ROMless | - | 256 x 8 | 4.5V ~ 5.5V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
DS80C410-FNY+IC MCU 8BIT 64KB ROM 100LQFP |
3,379 |
|
Datasheet |
100-LQFP | 80C | Tray | Obsolete | Not Verified | 8051 | 8-Bit | 75MHz | 1-Wire®, CANbus, EBI/EMI, Ethernet, SIO, UART/USART | Power-Fail Reset, WDT | 64 | 64KB (64K x 8) | ROM | - | 64K x 8 | 1.62V ~ 3.6V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
|
DS80C411-FNY+IC MCU 8BIT 64KB ROM 100LQFP |
1,335 |
|
Datasheet |
100-LQFP | 80C | Tray | Obsolete | Not Verified | 8051 | 8-Bit | 75MHz | 1-Wire®, CANbus, EBI/EMI, Ethernet, SIO, UART/USART | Power-Fail Reset, WDT | 64 | 64KB (64K x 8) | ROM | - | 64K x 8 | 1.62V ~ 3.6V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
|
DS89C430-QNG+IC MCU 8BIT 16KB FLASH 44PLCC |
3,536 |
|
Datasheet |
44-LCC (J-Lead) | 89C | Tube | Obsolete | Verified | 8051 | 8-Bit | 25MHz | EBI/EMI, SIO, UART/USART | Power-Fail Reset, WDT | 32 | 16KB (16K x 8) | FLASH | - | 1K x 8 | 4.5V ~ 5.5V | - | External | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
DS89C450-MNG+IC MCU 8BIT 64KB FLASH 40DIP |
4,678 |
|
Datasheet |
40-DIP (0.600", 15.24mm) | 89C | Tube | Obsolete | Not Verified | 8051 | 8-Bit | 25MHz | EBI/EMI, SIO, UART/USART | Power-Fail Reset, WDT | 32 | 64KB (64K x 8) | FLASH | - | 1K x 8 | 4.5V ~ 5.5V | - | External | -40°C ~ 85°C (TA) | - | - | Through Hole | |
|
LPC2364FBD100,551IC MCU 16/32B 128KB FLSH 100LQFP |
3,783 |
|
Datasheet |
100-LQFP | LPC2300 | Tray | Discontinued at Digi-Key | Not Verified | ARM7® | 16/32-Bit | 72MHz | CANbus, Ethernet, I2C, Microwire, SPI, SSI, SSP, UART/USART, USB | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 70 | 128KB (128K x 8) | FLASH | - | 34K x 8 | 3V ~ 3.6V | A/D 6x10b; D/A 1x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
|
LPC2366FBD100,551IC MCU 16/32B 256KB FLSH 100LQFP |
3,879 |
|
Datasheet |
100-LQFP | LPC2300 | Tray | Discontinued at Digi-Key | Not Verified | ARM7® | 16/32-Bit | 72MHz | CANbus, Ethernet, I2C, Microwire, SPI, SSI, SSP, UART/USART, USB | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 70 | 256KB (256K x 8) | FLASH | - | 58K x 8 | 3V ~ 3.6V | A/D 6x10b; D/A 1x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
|
LPC2368FBD100,551IC MCU 16/32B 512KB FLSH 100LQFP |
3,047 |
|
Datasheet |
100-LQFP | LPC2300 | Tray | Discontinued at Digi-Key | Not Verified | ARM7® | 16/32-Bit | 72MHz | CANbus, Ethernet, I2C, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 70 | 512KB (512K x 8) | FLASH | - | 58K x 8 | 3V ~ 3.6V | A/D 6x10b; D/A 1x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
LPC2378FBD144,551IC MCU 16/32B 512KB FLSH 144LQFP |
2,601 |
|
Datasheet |
144-LQFP | LPC2300 | Tray | Discontinued at Digi-Key | Not Verified | ARM7® | 16/32-Bit | 72MHz | CANbus, EBI/EMI, Ethernet, I2C, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT | 104 | 512KB (512K x 8) | FLASH | - | 58K x 8 | 3V ~ 3.6V | A/D 8x10b; D/A 1x10b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|

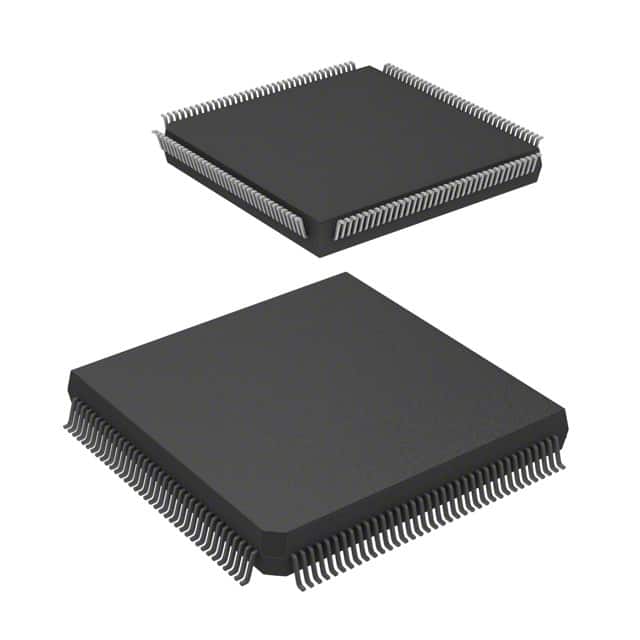

D12670VFC33VIC MCU 16BIT ROMLESS 144QFP |
2,862 |
|
Datasheet |
144-BFQFP | H8® H8S/2600 | Tray | Obsolete | Not Verified | H8S/2600 | 16-Bit | 33MHz | IrDA, SCI | DMA, POR, PWM, WDT | 115 | - | ROMless | - | 8K x 8 | 3V ~ 3.6V | A/D 12x10b; D/A 4x8b | Internal | -20°C ~ 75°C (TA) | - | - | Surface Mount | |
|
|
D12674RVFQ33DVIC MCU 16BIT ROMLESS 144LQFP |
1,508 |
|
Datasheet |
144-LQFP | H8® H8S/2600 | Tray | Obsolete | Not Verified | H8S/2600 | 16-Bit | 33MHz | IrDA, SCI | DMA, POR, PWM, WDT | 103 | - | ROMless | - | 32K x 8 | 3V ~ 3.6V | A/D 12x10b; D/A 4x8b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
|
DF2376VFQ33VIC MCU 16BIT 384KB FLASH 144LQFP |
1,953 |
|
- |
144-LQFP | H8® H8S/2300 | Tray | Obsolete | Not Verified | H8S/2000 | 16-Bit | 33MHz | I2C, IrDA, SCI, SmartCard | DMA, POR, PWM, WDT | 96 | 384KB (384K x 8) | FLASH | - | 30K x 8 | 3V ~ 3.6V | A/D 16x10b; D/A 6x8b | External | -20°C ~ 75°C (TA) | - | - | Surface Mount | |
|
DF2506BR26DVIC MCU 16BIT 512KB FLSH 176LFBGA |
4,242 |
|
Datasheet |
176-LFBGA | H8® H8S/2500 | Tray | Active | Not Verified | H8S/2000 | 16-Bit | 26MHz | I2C, SCI | POR, PWM, WDT | 104 | 512KB (512K x 8) | FLASH | - | 32K x 8 | 3V ~ 5.5V | A/D 16x10b; D/A 2x8b | Internal | -40°C ~ 85°C (TA) | - | - | Surface Mount | |
|
DF2643FC25VIC MCU 16BIT 256KB FLASH 144QFP |
2,354 |
|
Datasheet |
144-BFQFP | H8® H8S/2600 | Tray | Obsolete | Not Verified | H8S/2600 | 16-Bit | 25MHz | I2C, IrDA, SCI, SmartCard | DMA, POR, PWM, WDT | 96 | 256KB (256K x 8) | FLASH | - | 16K x 8 | 3V ~ 3.6V | A/D 16x10b; D/A 4x8b | Internal | -20°C ~ 75°C (TA) | - | - | Surface Mount |
