Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

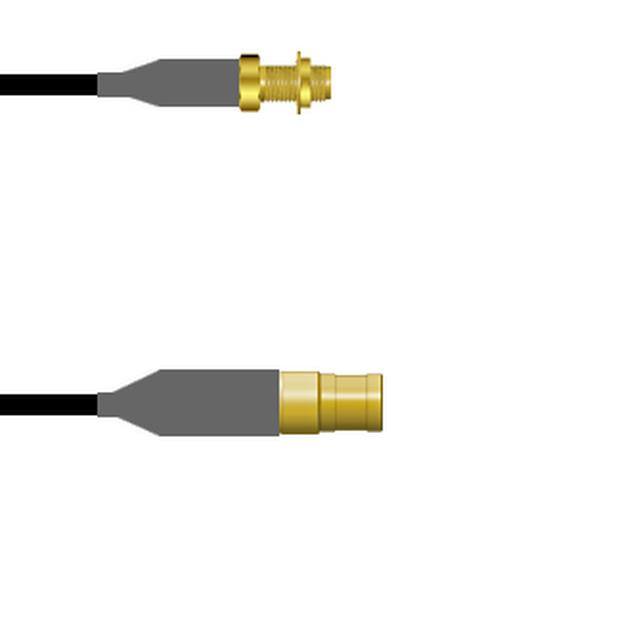

Q-2Y03X00082.5MCOAX CBL SMA TO SMB |
100 |
|
Datasheet |
- | Bag | Active | SMA to SMB | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug | Female | Free Hanging (In-Line) | - | 98.4" (2.5m) 8.2' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|

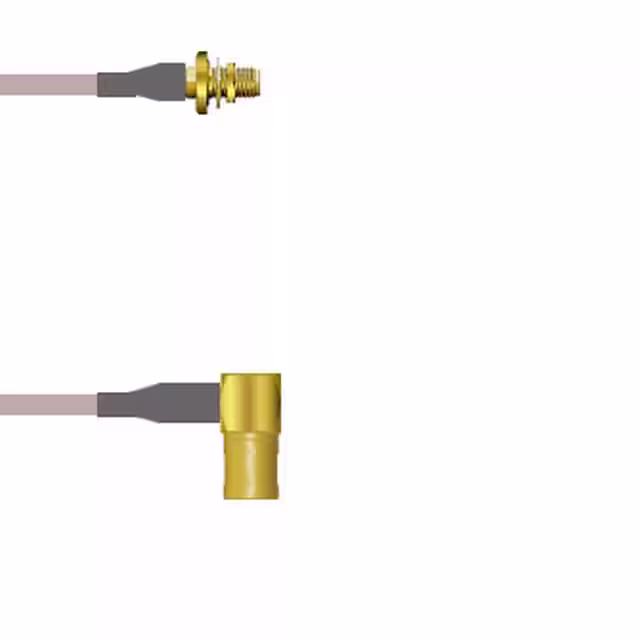

Q-2U03R0001072ICOAX CBL SMA TO SMB |
100 |
|
Datasheet |
- | Bag | Active | SMA to SMB | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

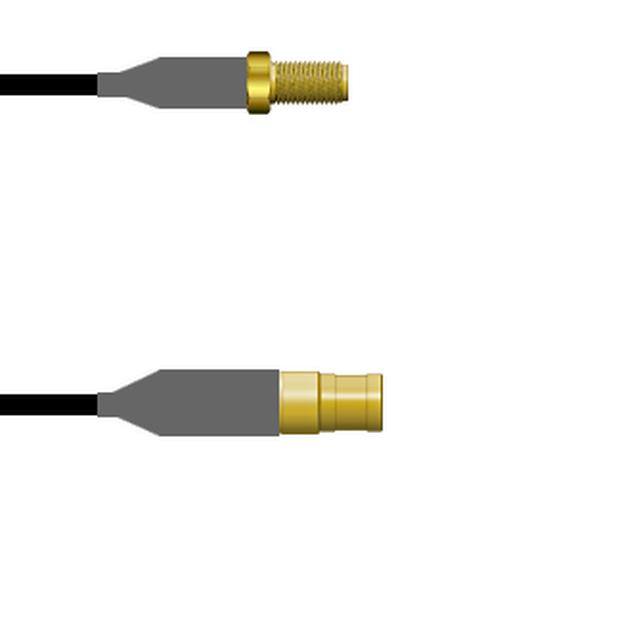

Q-2Z03X0008003MCOAX CBL SMA TO SMB |
100 |
|
Datasheet |
- | Bag | Active | SMA to SMB | SMA Jack | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|

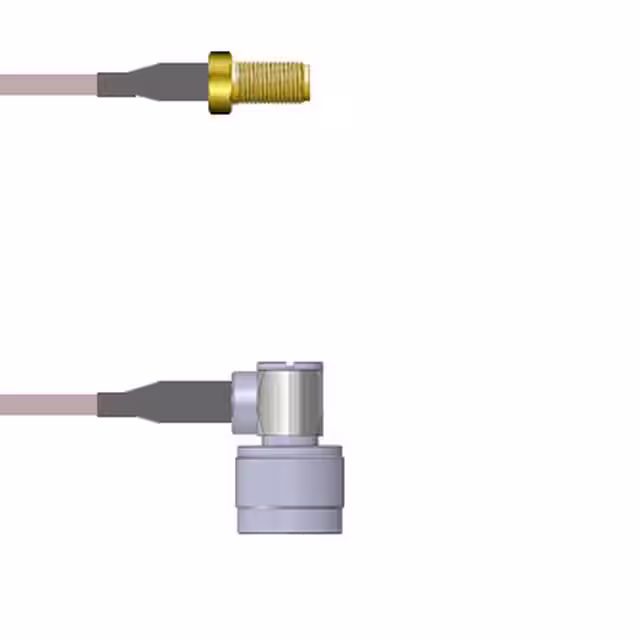

Q-2V02C0005002MCOAX CBL SMA TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

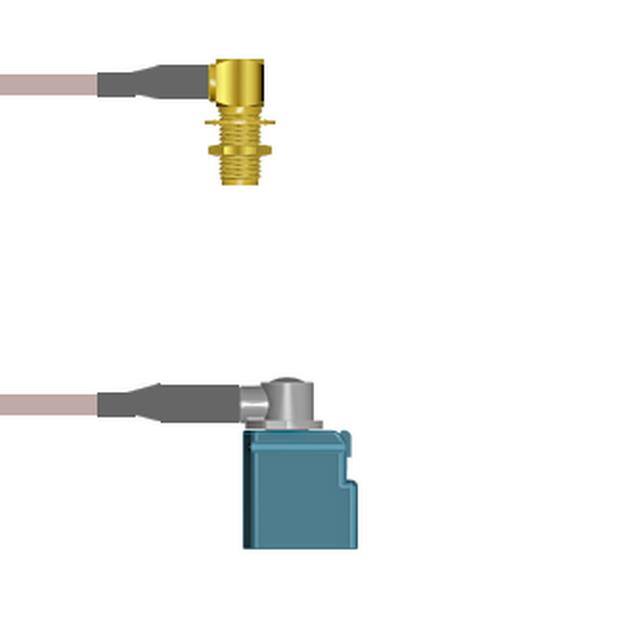

Q-2P05C0005.75MCOAX CBL SMA TO FAKRA III |
100 |
|
Datasheet |
- | Bag | Active | SMA to Fakra III | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra III (Gen 3.0) Jack, Right Angle | Female | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

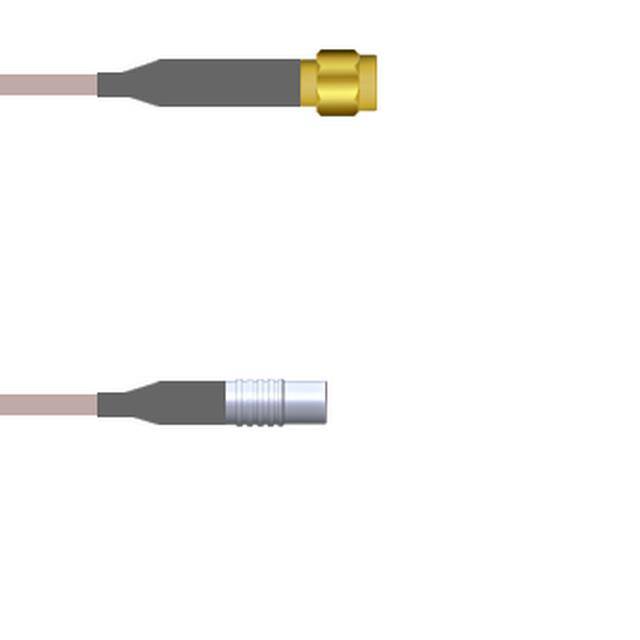

Q-6801400052.5MCOAX CBL RP-SMA TO MCX |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to MCX | RP-SMA Plug | Female | Free Hanging (In-Line) | - | MCX Socket | Female | Free Hanging (In-Line) | - | 98.4" (2.5m) 8.2' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

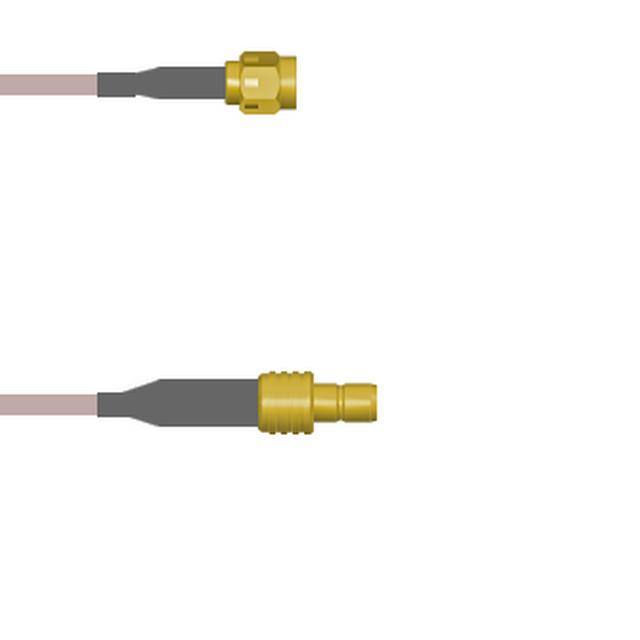

Q-3B03L0005072ICOAX CBL SMA TO SMB |
100 |
|
Datasheet |
- | Bag | Active | SMA to SMB | SMA Plug | Male | Free Hanging (In-Line) | - | SMB Jack | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
Q-3404F0005036ICOAX CBL SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00" (914.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

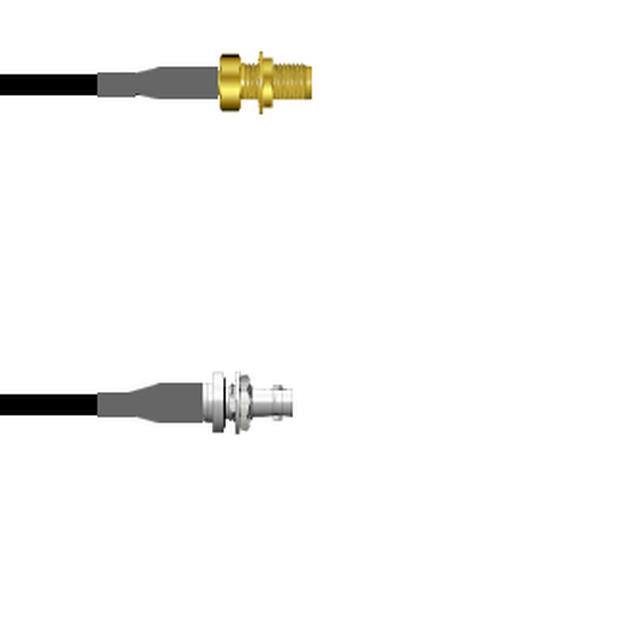

Q-2W00P0003.75MCOAX CBL HD-BNC TO SMA |
100 |
|
Datasheet |
- | Bag | Active | HD-BNC to SMA | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 29.53" (750.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|

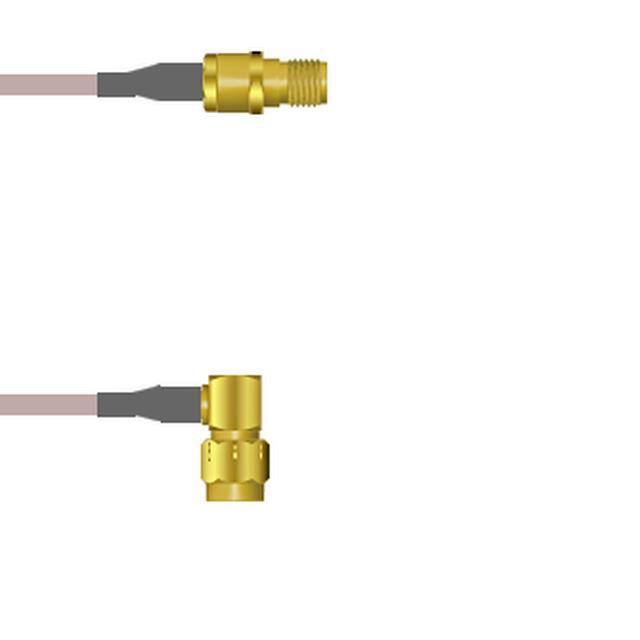

Q-2T0330001.25MCOAX CBL SMA TO SMA |
100 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

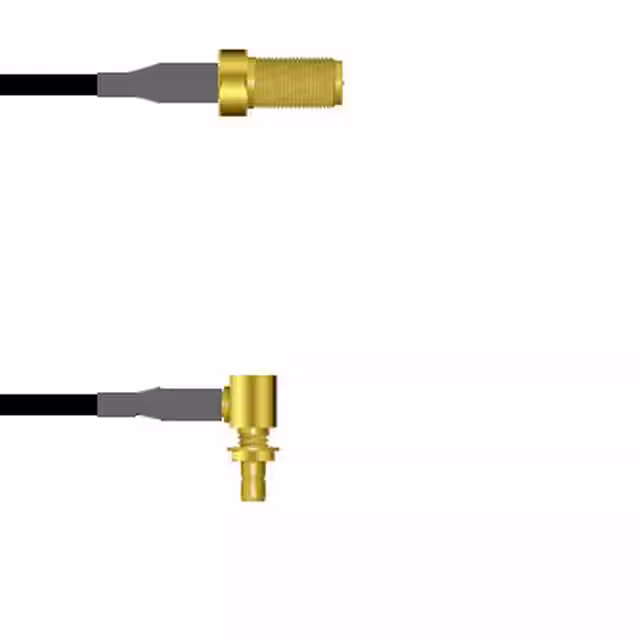

Q-7103H0003002MCOAX CBL RP-SMA TO SMB |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to SMB | RP-SMA Jack | Male | Free Hanging (In-Line) | - | SMB Jack, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | 78.7" (2.0m) 6.6' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|

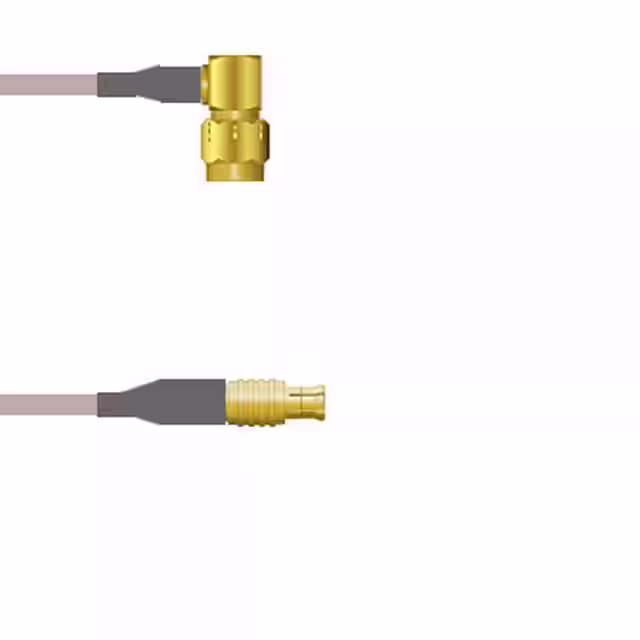

Q-3301B0001036ICOAX CBL SMA TO MCX |
100 |
|
Datasheet |
- | Bag | Active | SMA to MCX | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
Q-6800J00052.5MCOAX CBL RP-SMA TO BNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to BNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 98.4" (2.5m) 8.2' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
Q-3B0420003060ICOAX CBL SMA TO SMP |
100 |
|
Datasheet |
- | Bag | Active | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|

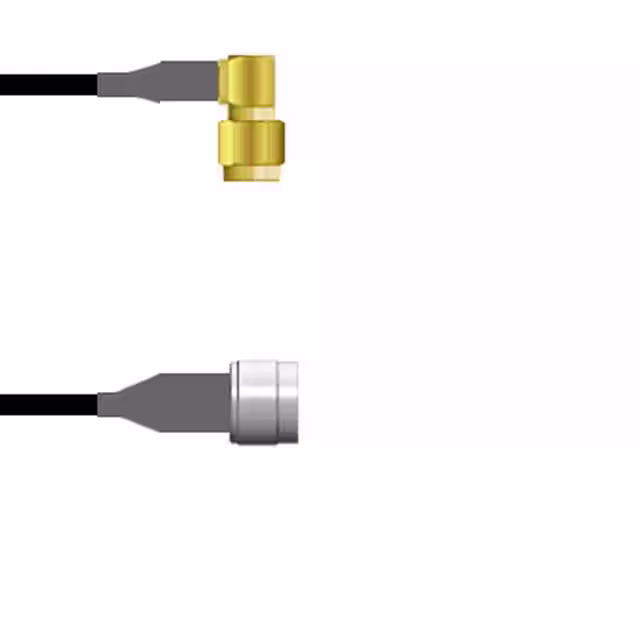

Q-3402I0003002MCOAX CBL SMA TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|

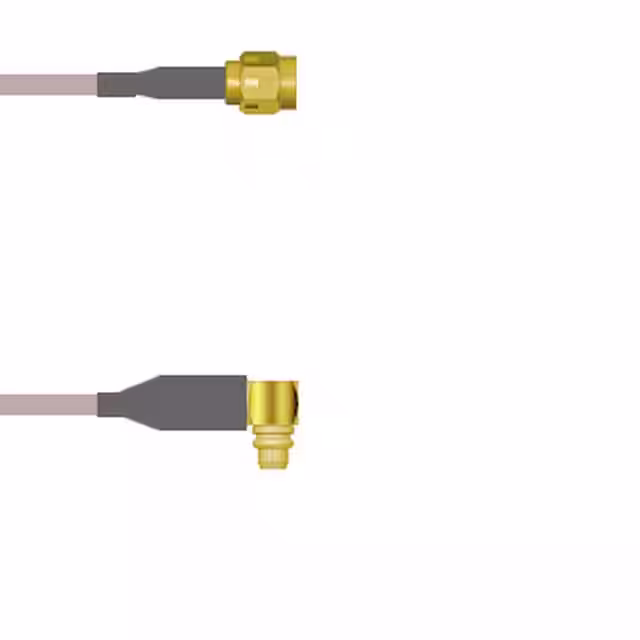

Q-3B01N0005002MCOAX CBL SMA TO MMCX |
100 |
|
Datasheet |
- | Bag | Active | SMA to MMCX | SMA Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

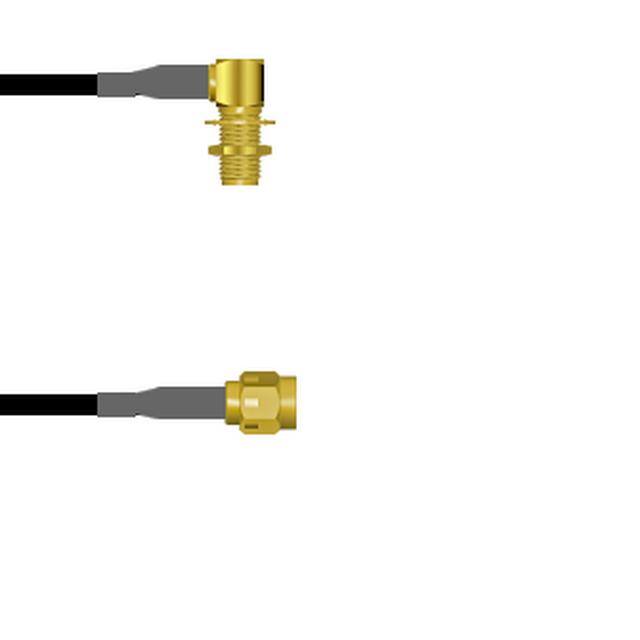

Q-2P03B0003048ICOAX CBL SMA TO SMA |
100 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
Q-2P01Q00032.5MCOAX CBL SMA TO MMCX |
100 |
|
Datasheet |
- | Bag | Active | SMA to MMCX | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 98.4" (2.5m) 8.2' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
Q-2U04100011.5MCOAX CBL SMA TO SMP |
100 |
|
Datasheet |
- | Bag | Active | SMA to SMP | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMP Plug, Right Angle | Female | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

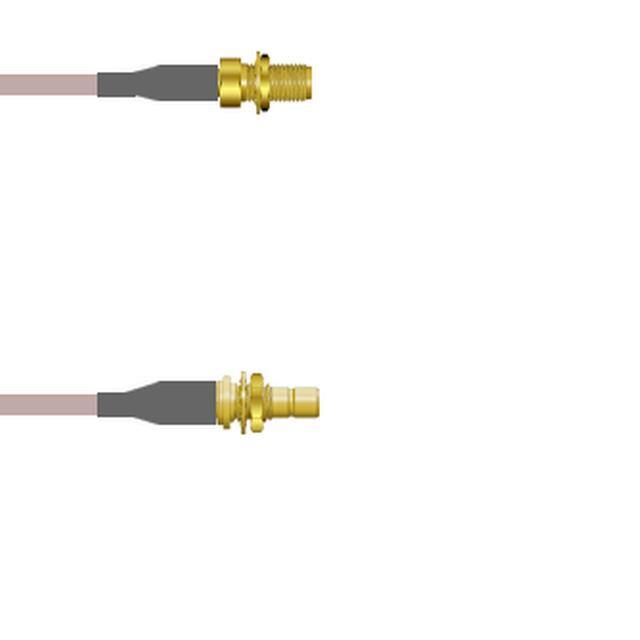

Q-2X03O000R006ICOAX CBL SMA TO SMB |
100 |
|
Datasheet |
- | Bag | Active | SMA to SMB | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 6.000" (152.40mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
