Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RG214-LSZH-SMRA-BF(QTY:1ft)COAX CBL SMA TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | SMA to BNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | BNC Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-BM-TMRA(QTY:1ft)COAX CBL BNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 12.00" (304.80mm) | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-NFBH-UMRA(QTY:1ft)COAX CBL N-TYPE TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to UHF | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | UHF Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 12.00" (304.80mm) | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-SFRP-BMRA(QTY:1ft)COAX CBL RP-SMA TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to BNC | RP-SMA Jack | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 12.00" (304.80mm) | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-SFRP-UF(QTY:1ft)COAX CBL RP-SMA TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to UHF | RP-SMA Jack | Male | Free Hanging (In-Line) | - | UHF Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-SFRP-NM(QTY:1ft)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-SFRP-BM(QTY:1ft)COAX CBL RP-SMA TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to BNC | RP-SMA Jack | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-BM-SMRA(QTY:1ft)COAX CBL BNC TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 12.00" (304.80mm) | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|

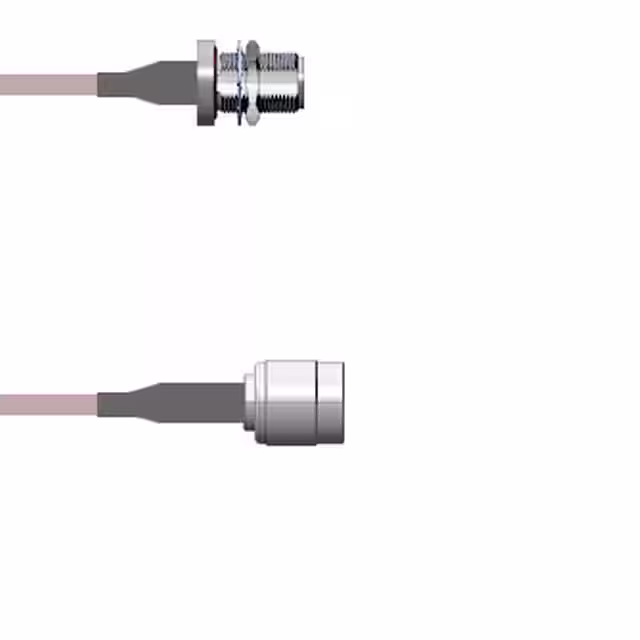

Q-1T0520005006iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|

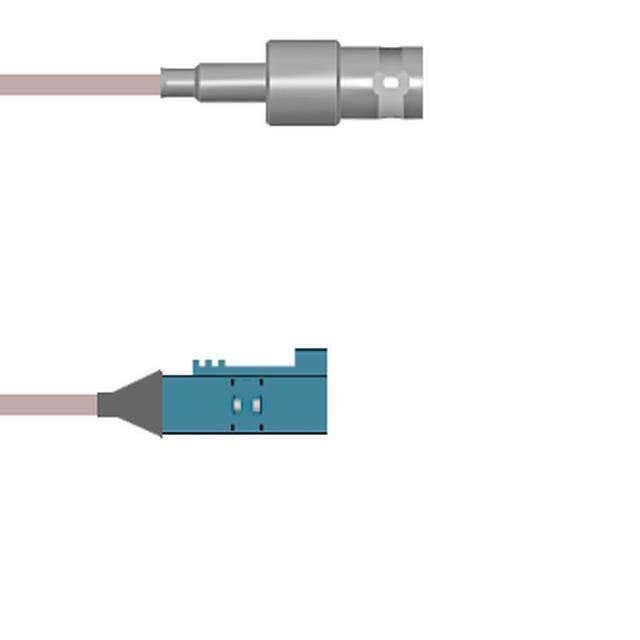

Q-0305E0005024iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
|
Q-2004T0003036iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
Q-0500O000S012iCOAX CBL BNC TO BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

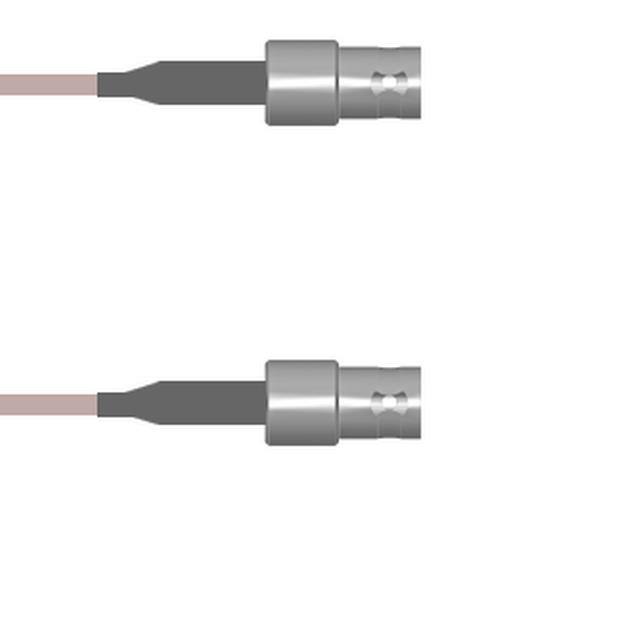

Q-05005000S012iCOAX CBL BNC TO BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

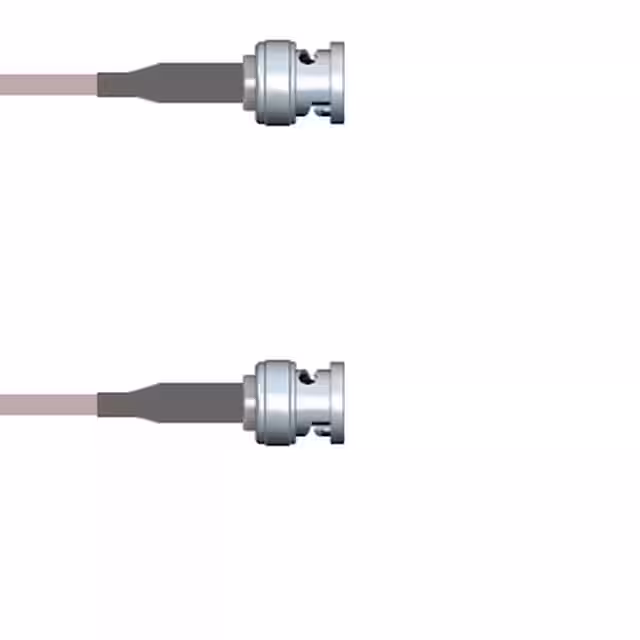

Q-0O00O000S012iCOAX CBL BNC TO BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

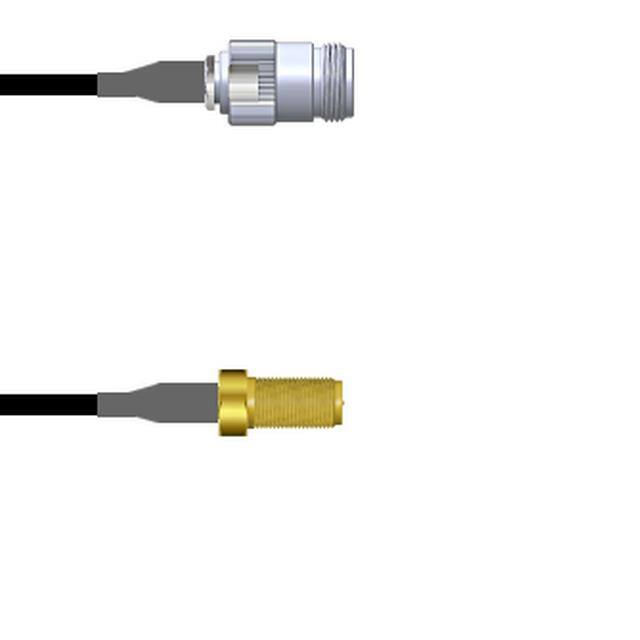

Q-200710003009iCOAX CBL RP-SMA TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|

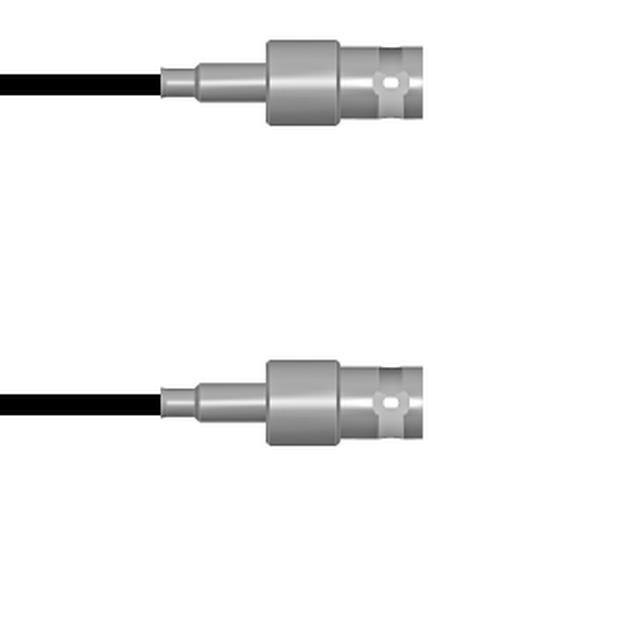

Q-030030003018iCOAX CBL BNC TO BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

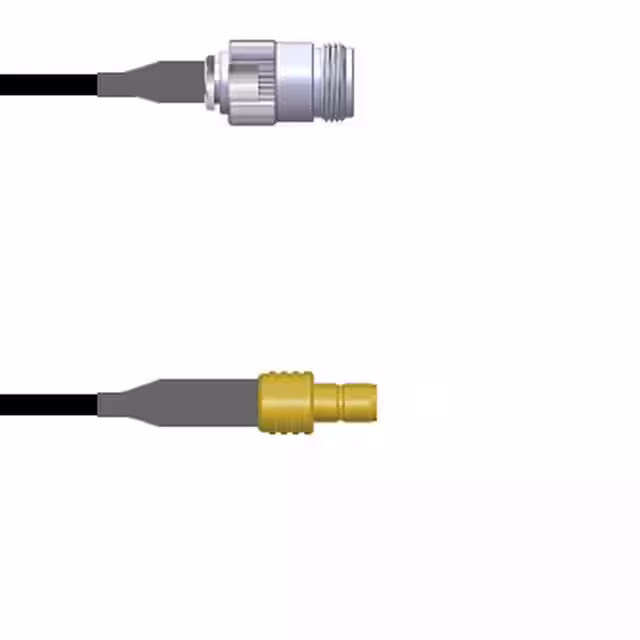

Q-2003L00031.5MCOAX CBL SMB TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | SMB to N-Type | SMB Jack | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

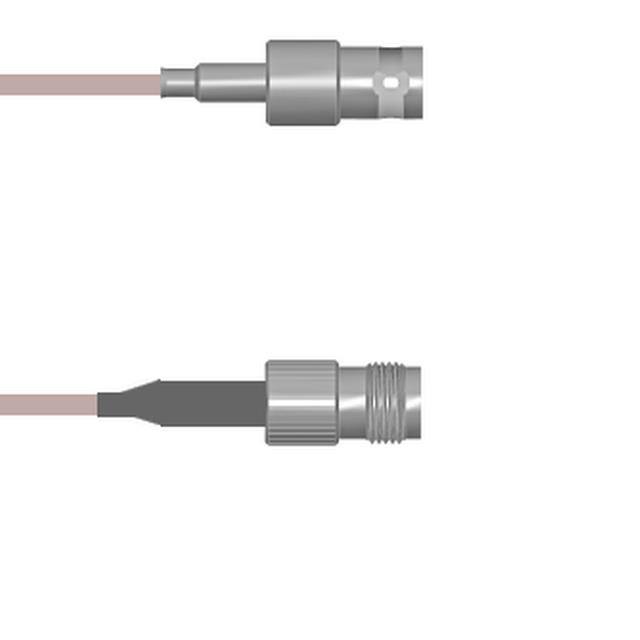

Q-0304G0005024iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

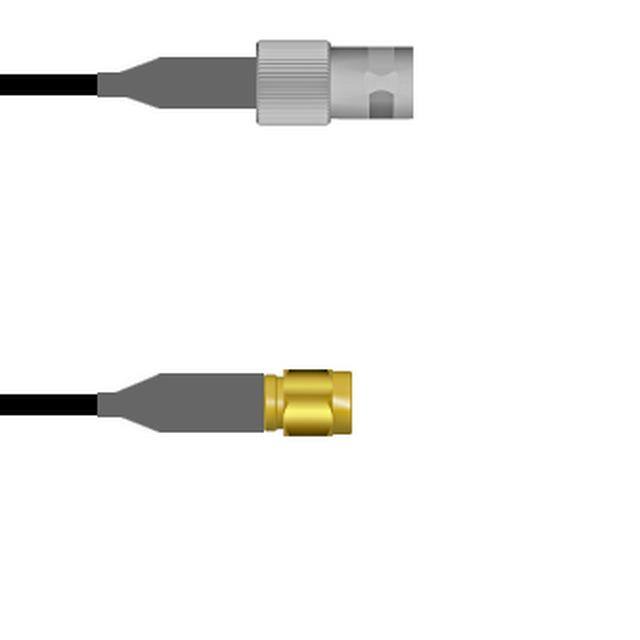

Q-0906900081.5MCOAX CBL RP-SMA TO BNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to BNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
PE39348Z-24COAX CBL SMA TO FAKRA |
12,584 |
|
Datasheet |
- | Retail Package | Active | SMA to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
