Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMR-400-FR-SFRP-SMRP(QTY:1ft)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-FR-SMRP-NFBH(QTY:1ft)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
Q-2005C0003006iCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Jack | Female | Free Hanging (In-Line) | - | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|

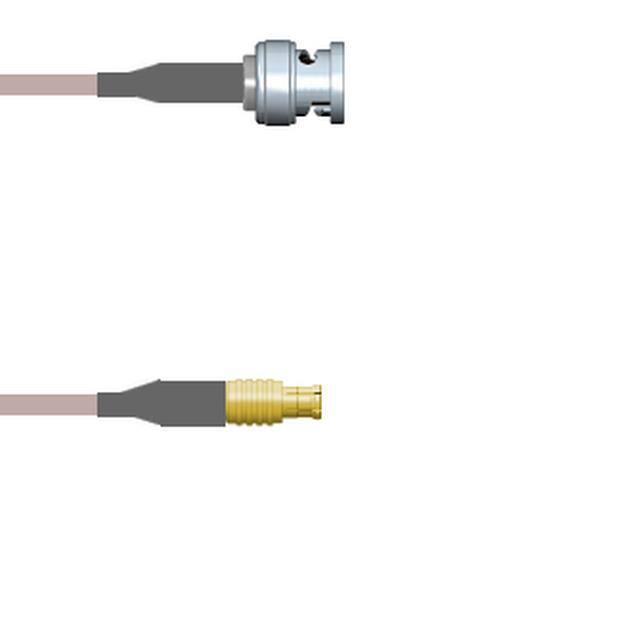

Q-0O01C000S018iCOAX CBL BNC TO MCX |
100 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

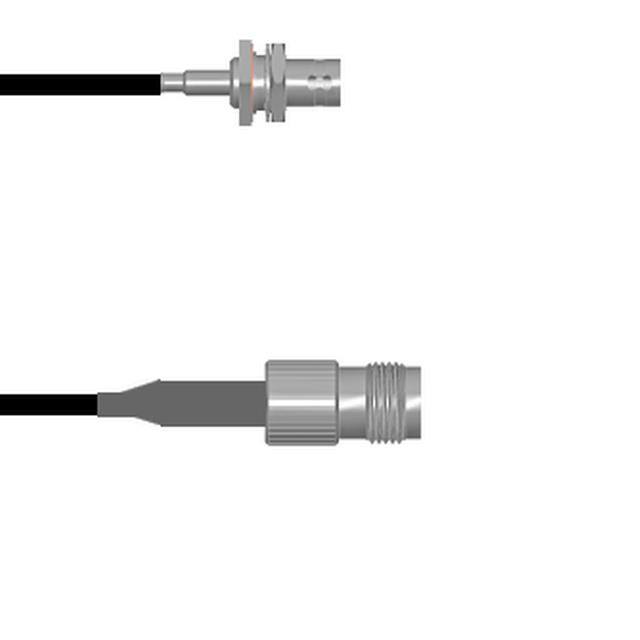

Q-0404G00032.5MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 98.4" (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

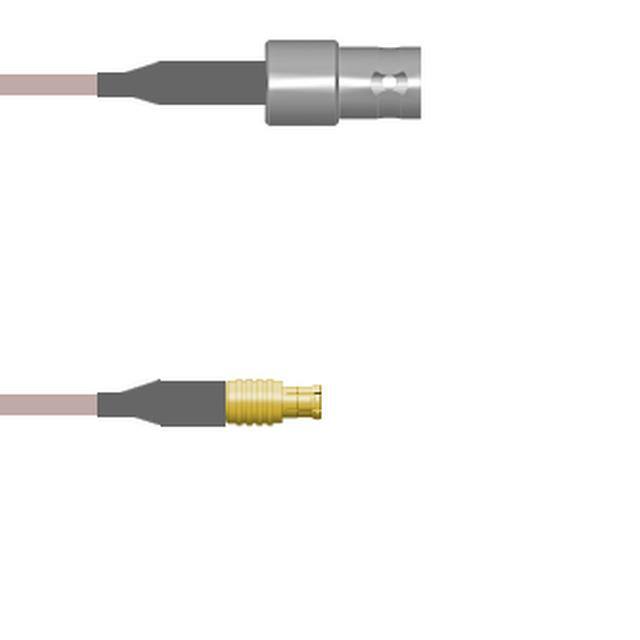

Q-0501C000S018iCOAX CBL BNC TO MCX |
100 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
RG58-SMRP-SMRP(QTY:150M)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 5905.0" (150.0m) 492.1' | RG-58 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG58-NF-NM(QTY:150M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 5905.0" (150.0m) 492.1' | RG-58 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG58-NM-SMRP(QTY:150M)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 5905.0" (150.0m) 492.1' | RG-58 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG58-NF-NF(QTY:150M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 5905.0" (150.0m) 492.1' | RG-58 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG58-TNC-TNC(QTY:150M)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 5905.0" (150.0m) 492.1' | RG-58 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG58-BM-SM(QTY:150M)COAX CBL BNC TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 5905.0" (150.0m) 492.1' | RG-58 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|

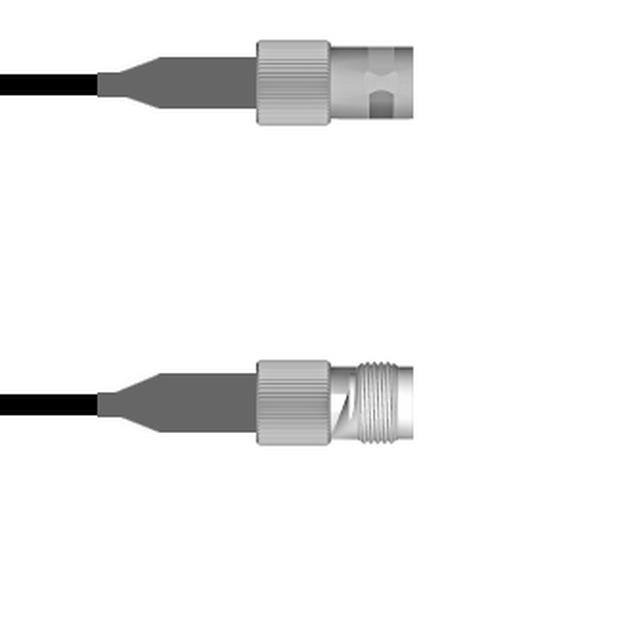

Q-0904J0008024iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

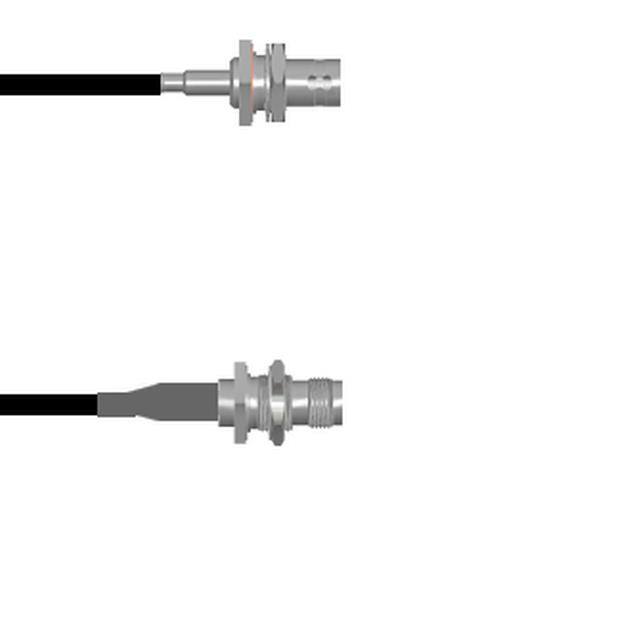

Q-0404F00032.5MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 98.4" (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
PE3W02777-24COAX CBL SMA TO SMA |
512 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
PE3W01211-24SMA Male to MMCX Jack Low Loss C |
2,927 |
|
Datasheet |
- | Retail Package | Active | SMA to MMCX | SMA Plug | Male | Free Hanging (In-Line) | - | MMCX Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
RG214-LSZH-BM-SM(QTY:12 INCH)COAX CBL BNC TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-214 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG214-LSZH-NF-NM(QTY:1M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-214 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG214-LSZH-SMRP-SMRP(QTY:12 INCH)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-214 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG214-LSZH-SMRP-SMRP(QTY:1ft)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-214 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
