Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMR-400-DB-NFBH-SF(QTY:1ft)COAX CBL N-TYPE TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to SMA | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-SFRP-UF(QTY:1ft)COAX CBL RP-SMA TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to UHF | RP-SMA Jack | Male | Free Hanging (In-Line) | - | UHF Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-TF-UMRA(QTY:1ft)COAX CBL TNC TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to UHF | TNC Jack | Female | Free Hanging (In-Line) | - | UHF Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-SFRP-4310M(QTY:1ft)COAX CBL RP-SMA TO 4.3/10 |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to 4.3/10 | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-SFRP-BMRA(QTY:1ft)COAX CBL RP-SMA TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to BNC | RP-SMA Jack | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-NFBH-UM(QTY:1ft)COAX CBL N-TYPE TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to UHF | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | UHF Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-SMRP-UMRA(QTY:1ft)COAX CBL RP-SMA TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to UHF | RP-SMA Plug | Female | Free Hanging (In-Line) | - | UHF Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-UMRA-SFRP(QTY:1ft)COAX CBL RP-SMA TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to UHF | UHF Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-SMRP-NMRA(QTY:1ft)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-SF-SFRP(QTY:1ft)COAX CBL RP-SMA TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-SM-NFBH(QTY:1ft)COAX CBL SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-TF-TMRA(QTY:1ft)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-4310M-UM(QTY:1ft)COAX CBL 4.3/10 TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | 4.3/10 to UHF | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | UHF Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-4310M-4310M(QTY:1ft)COAX CBL 4.3/10 TO 4.3/10 |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | 4.3/10 to 4.3/10 | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-4310M-716M(QTY:1ft)COAX CBL 4.3/10 TO 7/16 DIN |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | 4.3/10 to 7/16 DIN | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-UMRA-BMRA(QTY:1ft)COAX CBL UHF TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | UHF to BNC | UHF Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-DB-UMRA-NMRA(QTY:1ft)COAX CBL UHF TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | UHF to N-Type | UHF Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|

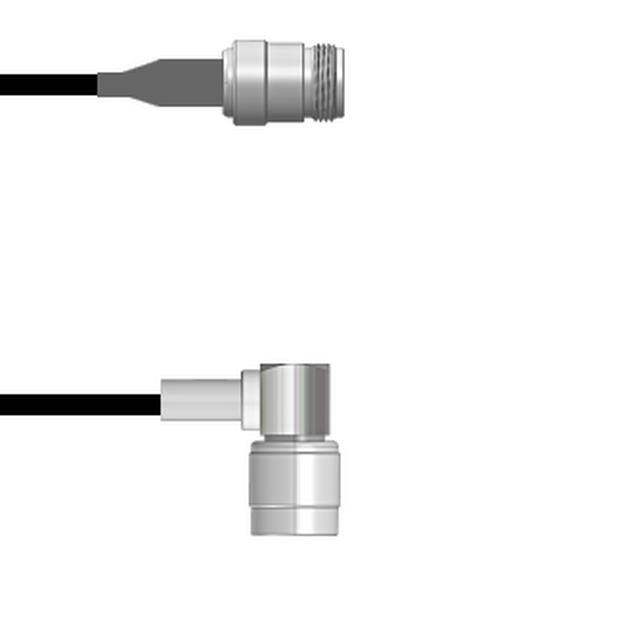

Q-1W04W0008.25MCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
|
Q-0D05A0005.25MCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
|
Q-020510001009iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
