Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C3985-24COAX CBL MMBX TO MMBX |
2,319 |
|
Datasheet |
- | Retail Package | Active | MMBX to MMBX | MMBX Plug | Male | Free Hanging (In-Line) | - | MMBX Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE3C3985-18COAX CBL MMBX TO MMBX |
3,636 |
|
Datasheet |
- | Retail Package | Active | MMBX to MMBX | MMBX Plug | Male | Free Hanging (In-Line) | - | MMBX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE36135LF-60COAX CBL F-TYPE TO F-TYPE |
4,951 |
|
Datasheet |
- | Retail Package | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-11 | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
|
|
PE3C7847-36COAX CBL N-TYPE TO N-TYPE |
4,777 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
PE3C8502-60COAX CBL 7/16 DIN TO N-TYPE |
2,444 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C8485-48COAX CBL 7/16 DIN TO N-TYPE |
2,033 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C8508-200CMCOAX CBL N-TYPE TO N-TYPE |
1,835 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE34324-36COAX CBL MHV TO MHV |
3,940 |
|
Datasheet |
- | Retail Package | Active | MHV to MHV | MHV Jack | Female | Free Hanging (In-Line) | - | MHV Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-59 | 75 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Black | - | - | - | - |
|
|
PE34324-48COAX CBL MHV TO MHV |
1,123 |
|
Datasheet |
- | Retail Package | Active | MHV to MHV | MHV Jack | Female | Free Hanging (In-Line) | - | MHV Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-59 | 75 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Black | - | - | - | - |
|
|
PE34324-100CMCOAX CBL MHV TO MHV |
4,797 |
|
Datasheet |
- | Retail Package | Active | MHV to MHV | MHV Jack | Female | Free Hanging (In-Line) | - | MHV Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-59 | 75 Ohms | 50 Ohms | 50 Ohms | 300 MHz | Black | - | - | - | - |
|
|
PE3903-12COAX CBL SMA TO SMA |
3,616 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|

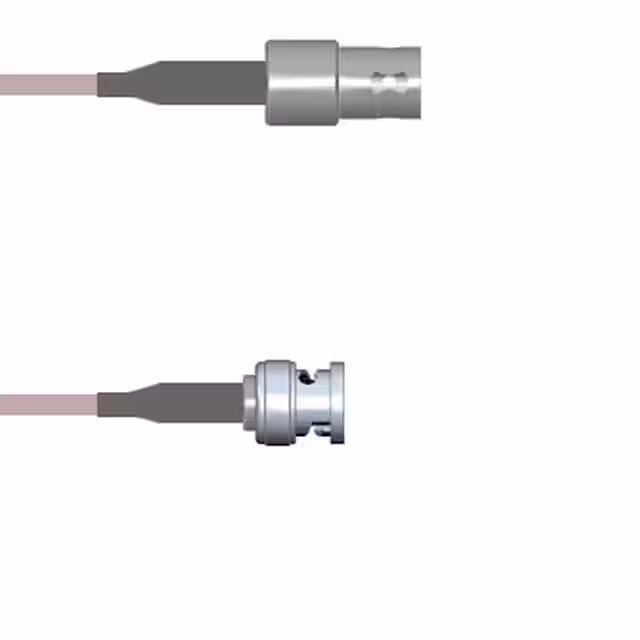

Q-0500O000S.25MCOAX CBL BNC TO BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

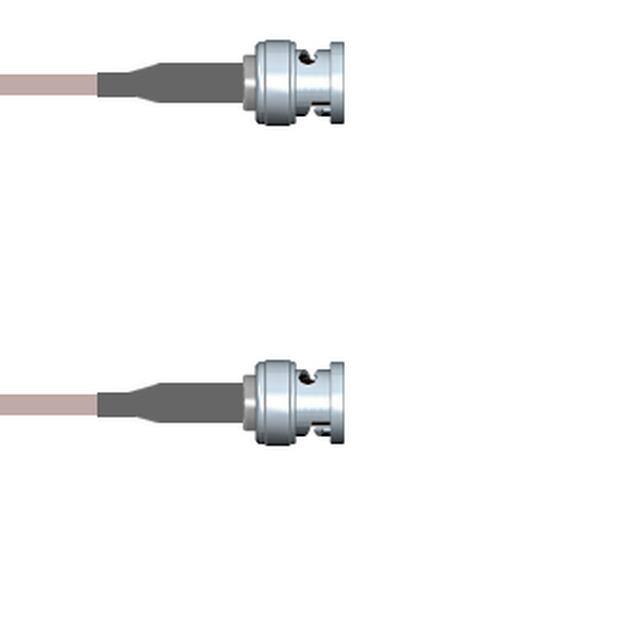

Q-0O00O000S.25MCOAX CBL BNC TO BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

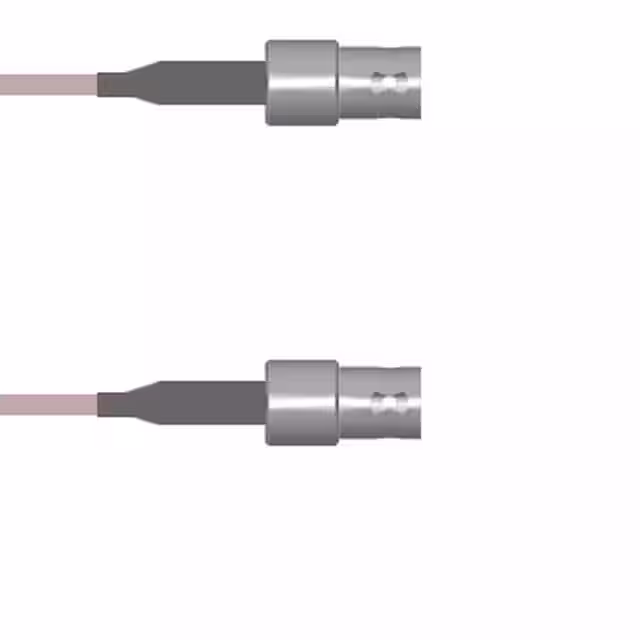

Q-05005000S.25MCOAX CBL BNC TO BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-179 | - | - | 75 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

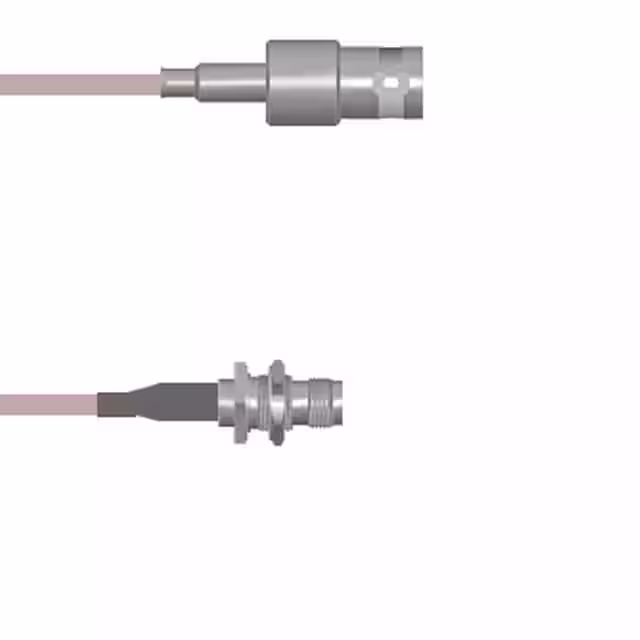

Q-0304F0005024iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
LMR-195-DB-NM-NM(QTY:6ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-195 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | LMR 195 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-DB-SM-SM(QTY:6ft)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
LMR®-195 | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | LMR 195 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-DB-BF-TF(QTY:6Ft)LMR195 DB Assy BNC FEMALE-TNC FE |
1,000 |
|
Datasheet |
LMR® | Spool | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-DB-BM-SFRP(QTY:6Ft)LMR195 DB Assy BNC MALE-RP SMA M |
1,000 |
|
Datasheet |
LMR® | Spool | Active | BNC to RP-SMA | BNC Plug | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Female | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-DB-FMEF-BF(QTY:6Ft)LMR195 DB Assy FME JACK-BNC FEMA |
1,000 |
|
Datasheet |
LMR® | Spool | Active | FME to BNC | FME Jack | Female | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
