Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RG400-SMRP-SMRP(QTY:2ft)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-400 | 50 Ohms | - | - | 3 GHz | - | - | -40°C ~ 200°C | - | - |
|
|
RG400-BM-SM(QTY:2ft)COAX CBL BNC TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-400 | 50 Ohms | - | - | 3 GHz | - | - | -40°C ~ 200°C | - | - |
|
|
RG400-NF-NM(QTY:2ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-400 | 50 Ohms | - | - | 3 GHz | - | - | -40°C ~ 200°C | - | - |
|
|
RG400-TNC-TNC(QTY:2ft)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-400 | 50 Ohms | - | - | 3 GHz | - | - | -40°C ~ 200°C | - | - |
|

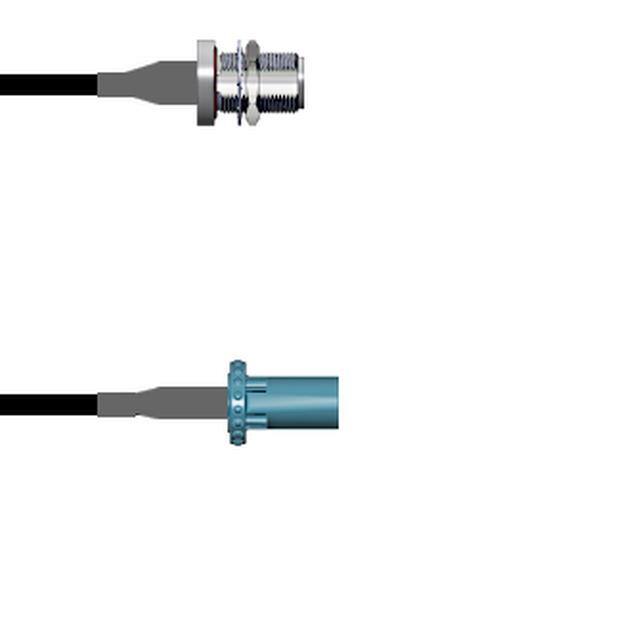

Q-1T05A0003003iCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|

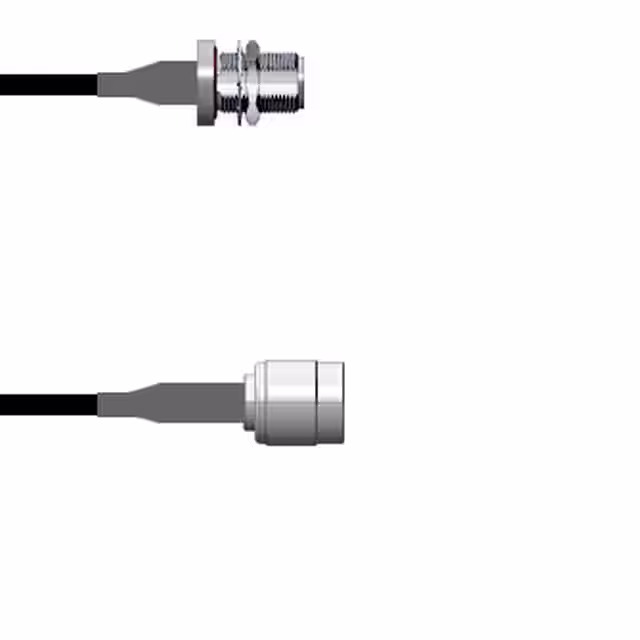

Q-1T0520003.25MCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|

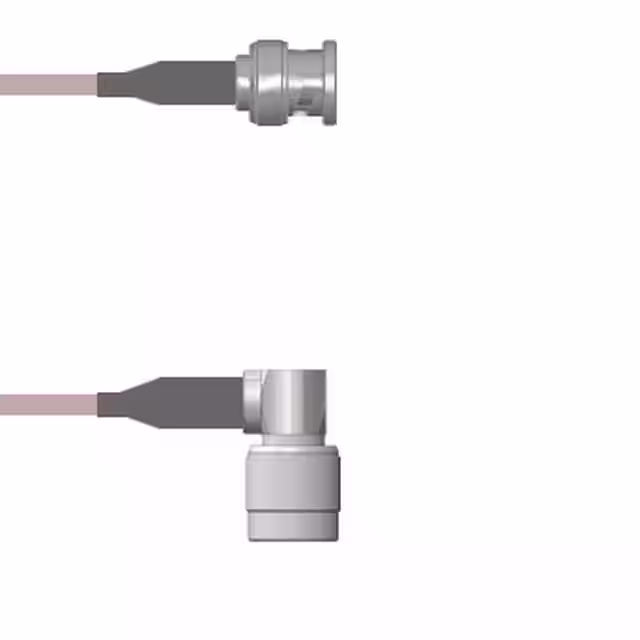

Q-0M04X000H006iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
Q-2005E00031.5MCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
RG223-NM-SMRP(QTY:10ft)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-223 | 50 Ohms | - | - | 12.4 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG223-TNC-TNC(QTY:10ft)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-223 | 50 Ohms | - | - | 12.4 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG223-SMRP-SMRP(QTY:10ft)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-223 | 50 Ohms | - | - | 12.4 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG223-NF-NM(QTY:10ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-223 | 50 Ohms | - | - | 12.4 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG223-NF-NF(QTY:10ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-223 | 50 Ohms | - | - | 12.4 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RFW-5573-54COAX CBL N-TYPE TO N-TYPE |
155 |
|
- |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 54.0" (1.4m) 4.5' | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|

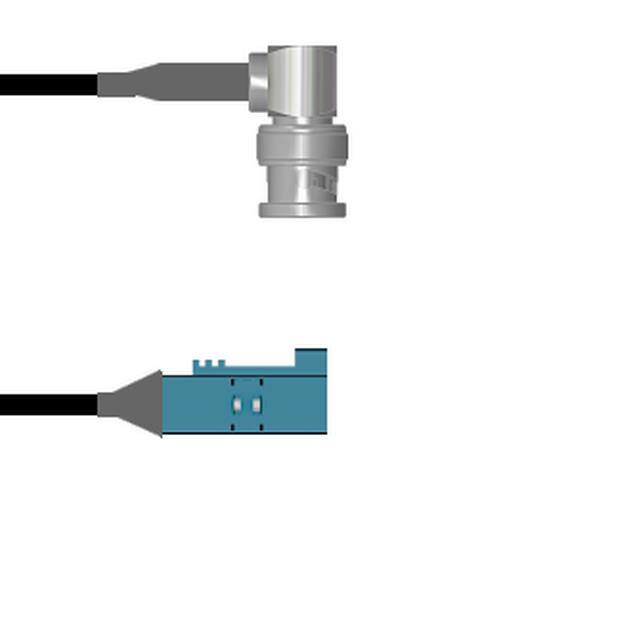

Q-0D05E0003003iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|

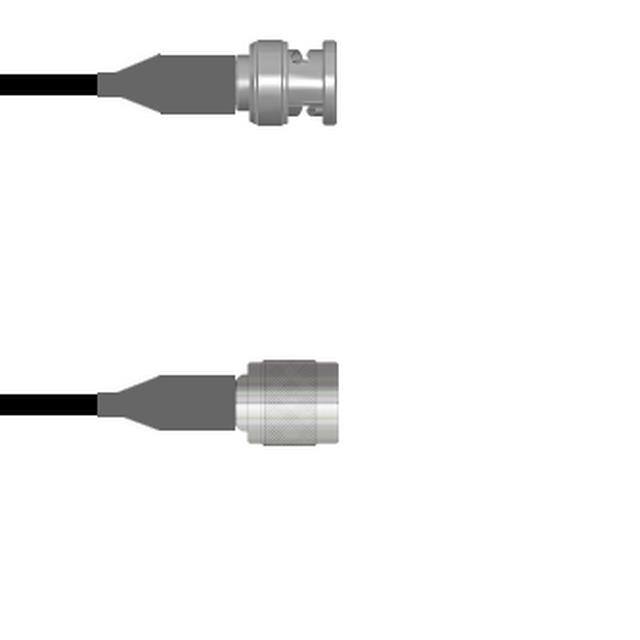

Q-0N058001A002MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-59 | - | - | 75 Ohms | 1 GHz | Black | Shielded | - | - | - |
|

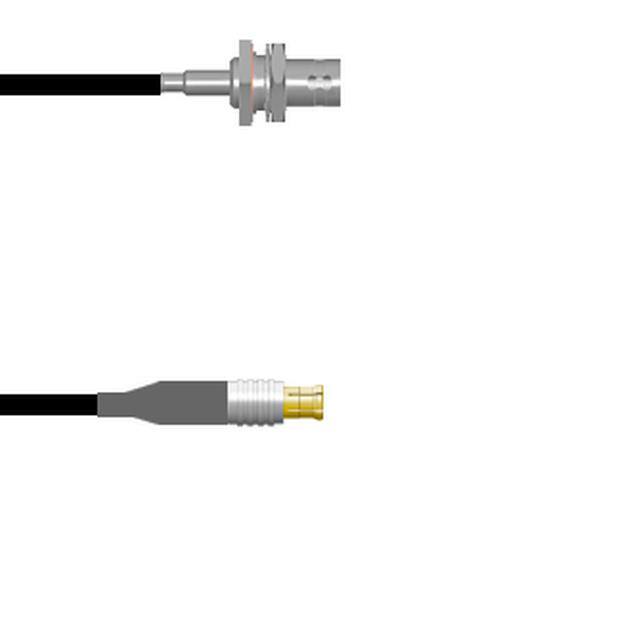

Q-0401F0003002MCOAX CBL BNC TO MCX |
100 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

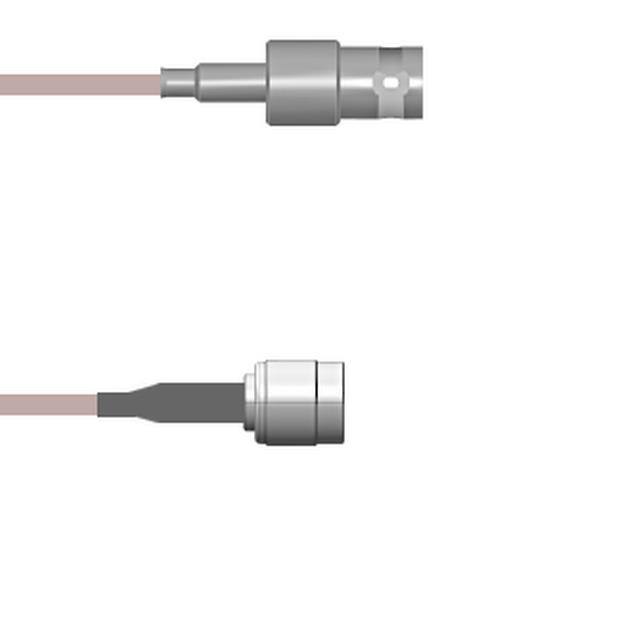

Q-030520005.75MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

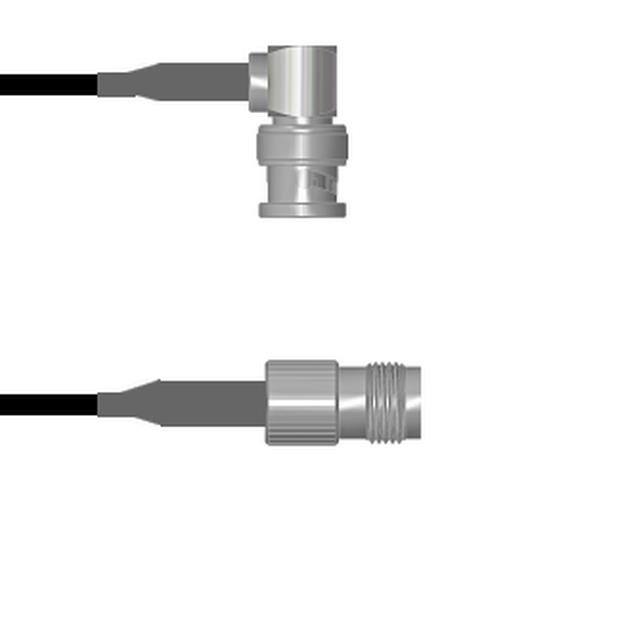

Q-0D04G0003003iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
LMR-100-SMRA-SM(QTY:18ft)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
LMR®-100 | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 216.0" (5.5m) 18.0' | LMR 100 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
