Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

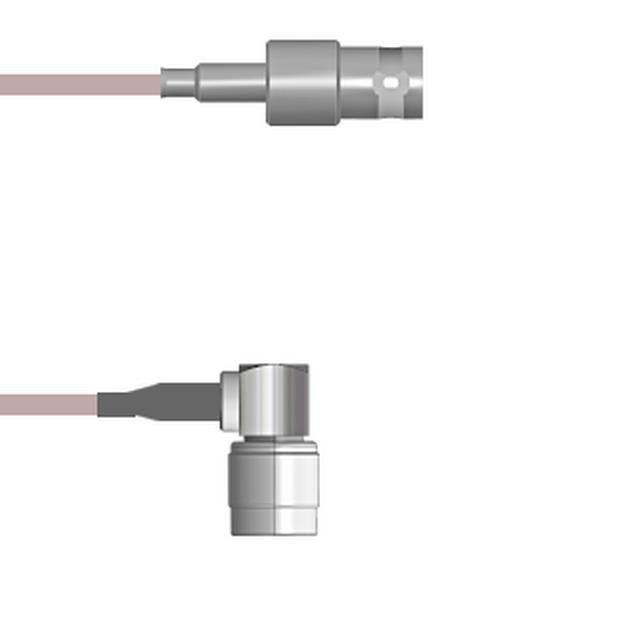

Q-0304T0005003iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
Q-0D0520003.75MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
LMR-100-W-SF-SMRP(QTY:0.4M)COAX CBL SMA TO RP-SMA |
10,000 |
|
Datasheet |
LMR®-100 | Tape & Box (TB) | Active | SMA to RP-SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 15.75" (400.00mm) | LMR 100 | 50 Ohms | - | 50 Ohms | - | White | - | -40°C ~ 85°C | - | - |
|
|
LMR-100-W-NM-NM(QTY:0.4m)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-100 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 15.75" (400.00mm) | LMR 100 | 50 Ohms | - | 50 Ohms | - | White | - | -40°C ~ 85°C | - | - |
|
|
LMR-100-W-SFRP-SMRP(QTY:0.4m)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
LMR®-100 | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 15.75" (400.00mm) | LMR 100 | 50 Ohms | - | 50 Ohms | - | White | - | -40°C ~ 85°C | - | - |
|

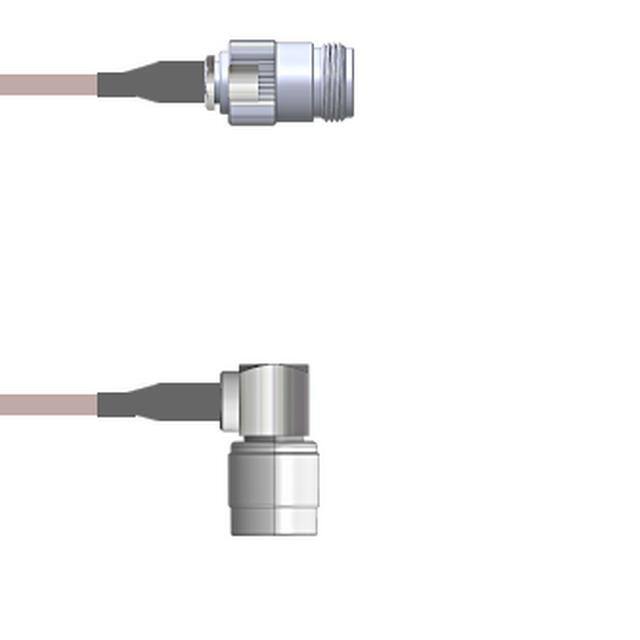

Q-2004T0005006iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|

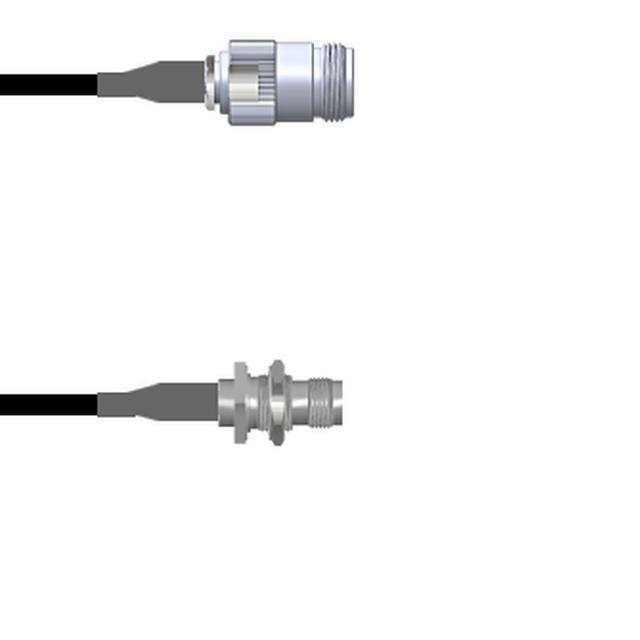

Q-2004F0003084iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0" (2.1m) 7.0' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|

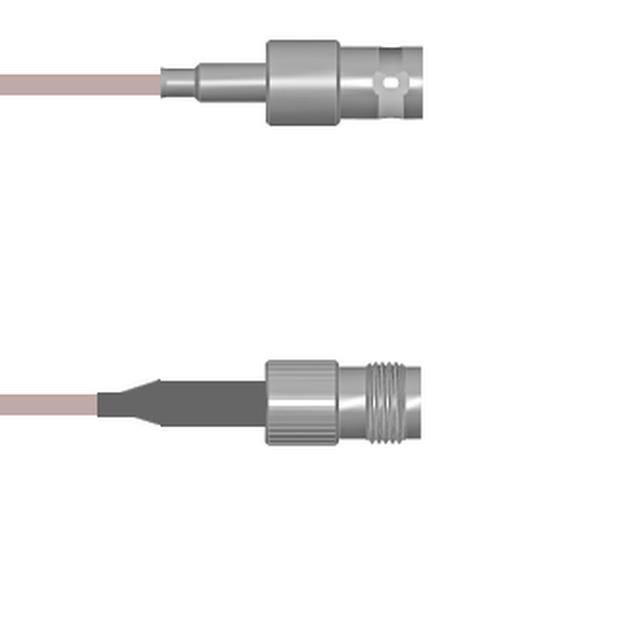

Q-0304G00050.5MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

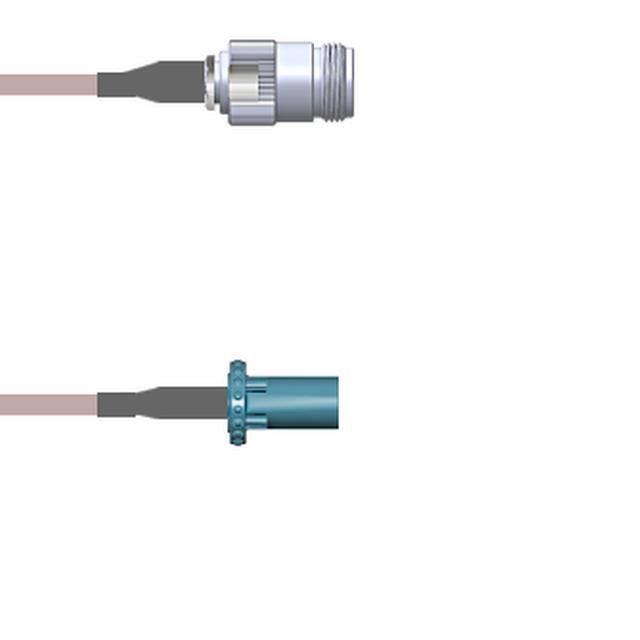

Q-2005A0005.75MCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
|
Q-2O04L000D006iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | LMR 195 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|

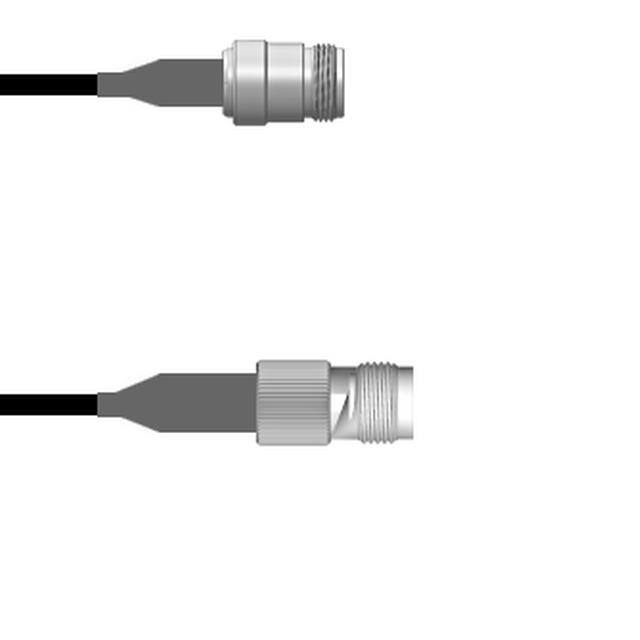

Q-1W04J0008024iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
Q-200200003024iCOAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|

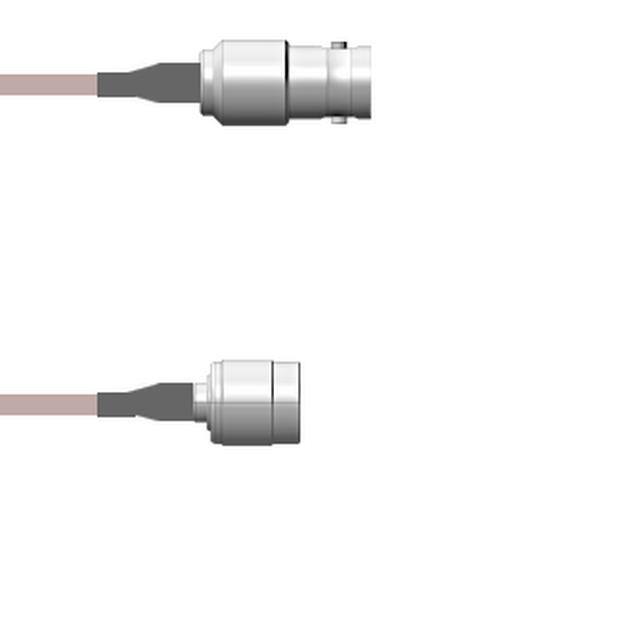

Q-020510001003iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
Q-040520003072iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

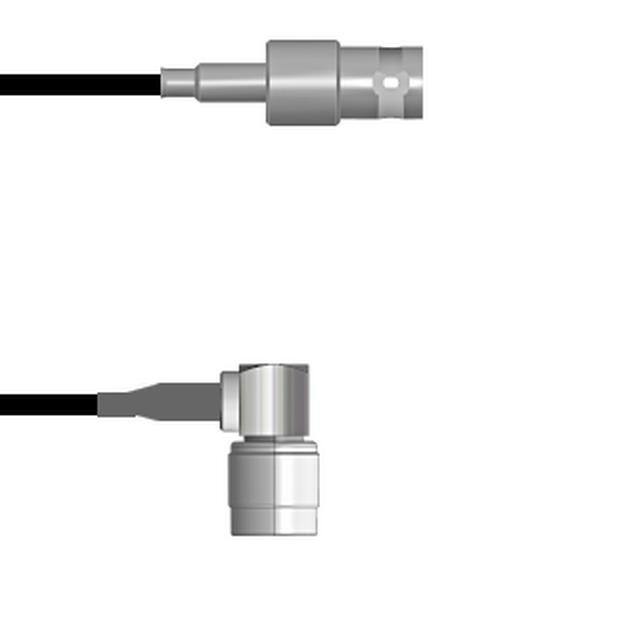

Q-0304T0003012iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

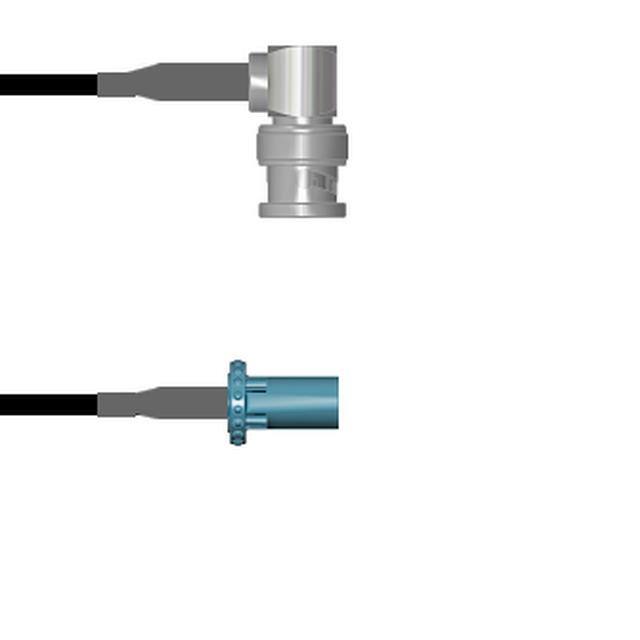

Q-0D05A0003024iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|

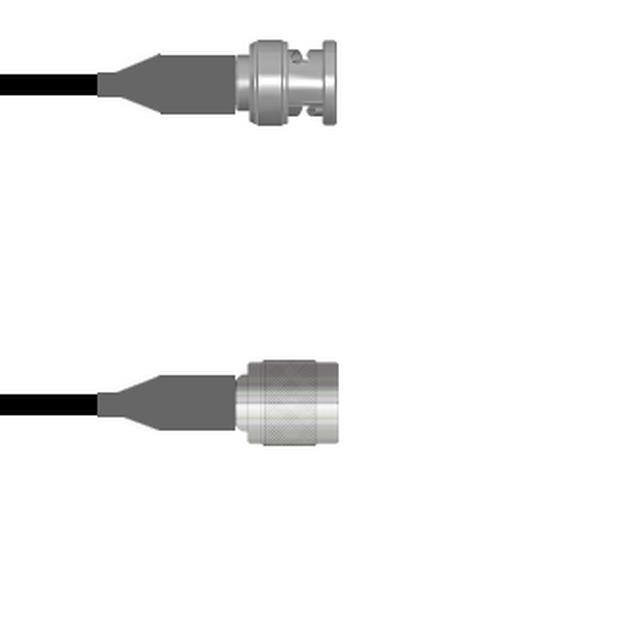

Q-0N058001A.75MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-59 | - | - | 75 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
Q-1T05200032.5MCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 98.4" (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|

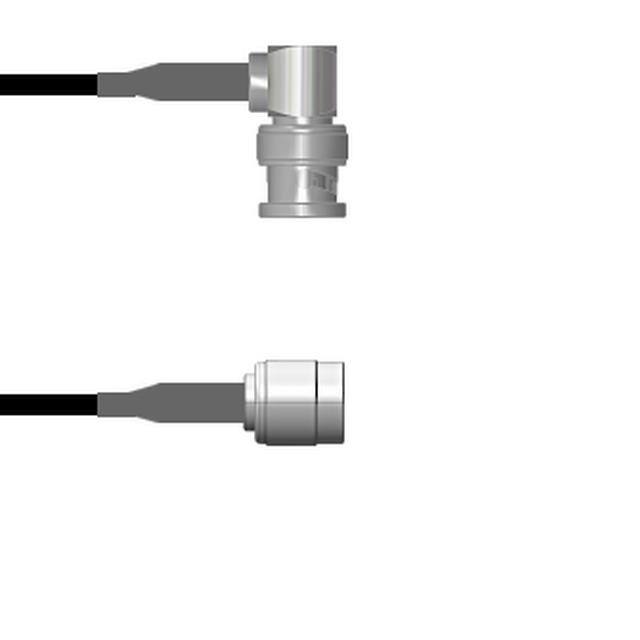

Q-0D05200031.5MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
Q-2N04W0008006iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-58 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
