Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMR-195-UM-BM(QTY:6Ft)COAX CBL BNC TO UHF |
1,000 |
|
Datasheet |
LMR®-195 | Spool | Active | BNC to UHF | BNC Plug | Male | Free Hanging (In-Line) | - | UHF Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-UM-TFBH(QTY:6Ft)LMR195 Assy UHF MALE-TNC FEMALE |
1,000 |
|
Datasheet |
LMR® | Spool | Active | UHF to TNC | UHF Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0" (1.8m) 6.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-UM-SF (QTY:6Ft)COAX CBL SMA TO UHF |
1,000 |
|
Datasheet |
LMR®-195 | Spool | Active | SMA to UHF | SMA Jack | Female | Free Hanging (In-Line) | - | UHF Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|

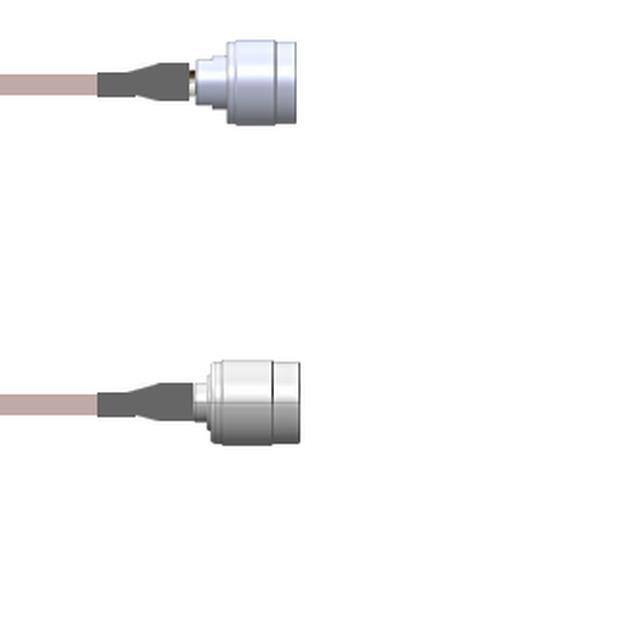

Q-2H0510001006iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|
|
Q-0905F0008018iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-58 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|

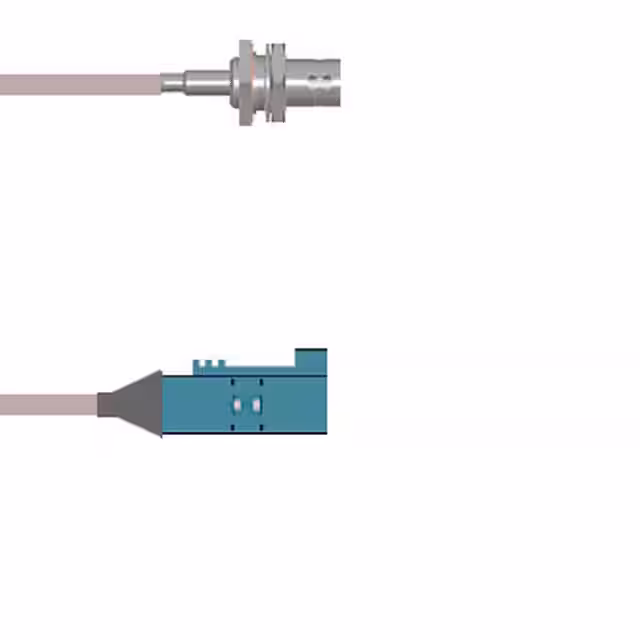

Q-0405E0005012iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

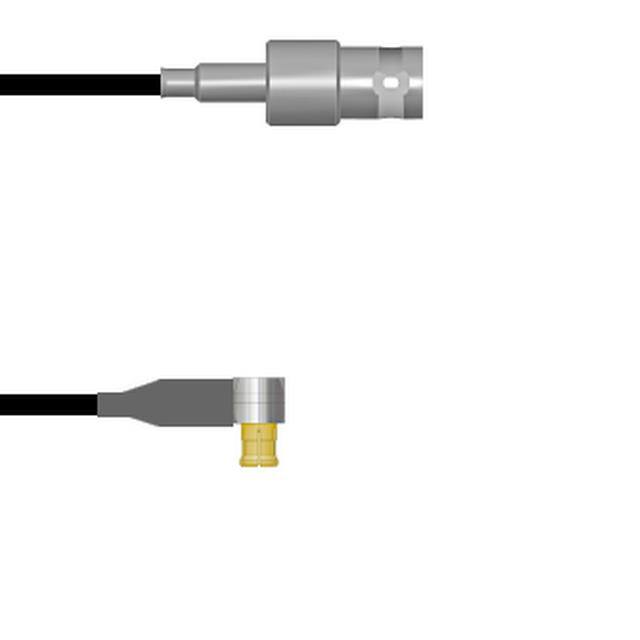

Q-0301A0003.75MCOAX CBL BNC TO MCX |
100 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
Q-2001A0003001MCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MCX to N-Type | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
Q-0301A00031.5MCOAX CBL BNC TO MCX |
100 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
Q-200200003002MCOAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
|
RG213-SM-SM(QTY:5FT)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-213 | 50 Ohms | - | 50 Ohms | 3.3 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
RG213-TM-NM(QTY:5FT)COAX CBL N-TYPE TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-213 | 50 Ohms | - | 50 Ohms | 3.3 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
RG213-UM-UM(QTY:5FT)COAX CBL UHF TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | UHF to UHF | UHF Plug | Male | - | - | UHF Plug | Male | - | - | 60.0" (1.5m) 5.0' | RG-213 | - | - | - | - | - | - | - | - | - |
|
|
RG213-NM-SM(QTY:5FT)COAX CBL SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-213 | 50 Ohms | - | 50 Ohms | 3.3 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
RG213-NM-NMRA(QTY:5FT)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-213 | 50 Ohms | - | 50 Ohms | 3.3 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
RG213-BM-BM(QTY:5FT)COAX CBL BNC TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-213 | 50 Ohms | - | 50 Ohms | 3.3 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
RG213-NM-UM(QTY:5FT)COAX CBL N-TYPE TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to UHF | N-Type Plug | Male | Free Hanging (In-Line) | - | UHF Plug | Male | - | - | 60.0" (1.5m) 5.0' | RG-213 | - | - | - | - | - | - | - | - | - |
|
|
RG213-TM-TM(QTY:5FT)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-213 | 50 Ohms | - | 50 Ohms | 3.3 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
RG213-UM-NMRA(QTY:5FT)COAX CBL N-TYPE TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to UHF | UHF Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 60.0" (1.5m) 5.0' | RG-213 | - | - | - | - | - | - | - | - | - |
|
|
RG213-BM-NM(QTY:5FT)COAX CBL BNC TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-213 | 50 Ohms | - | 50 Ohms | 3.3 GHz | Black | - | -20°C ~ 80°C | - | - |
