Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

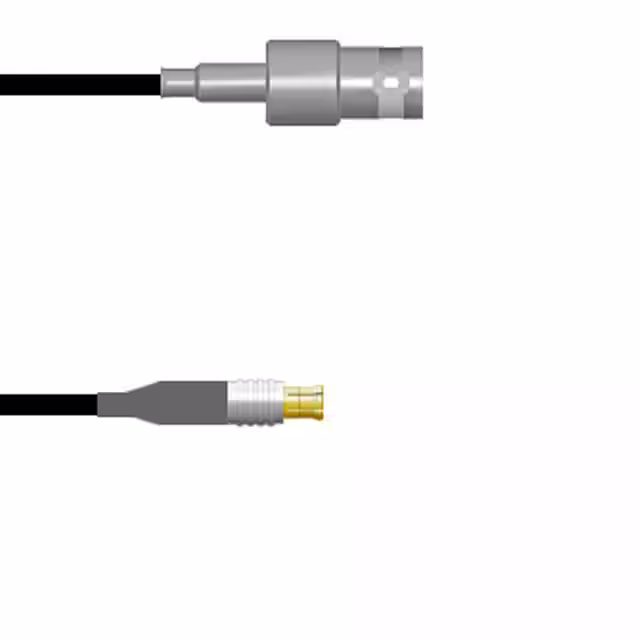

Q-0301F00032.5MCOAX CBL BNC TO MCX |
100 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 98.4" (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

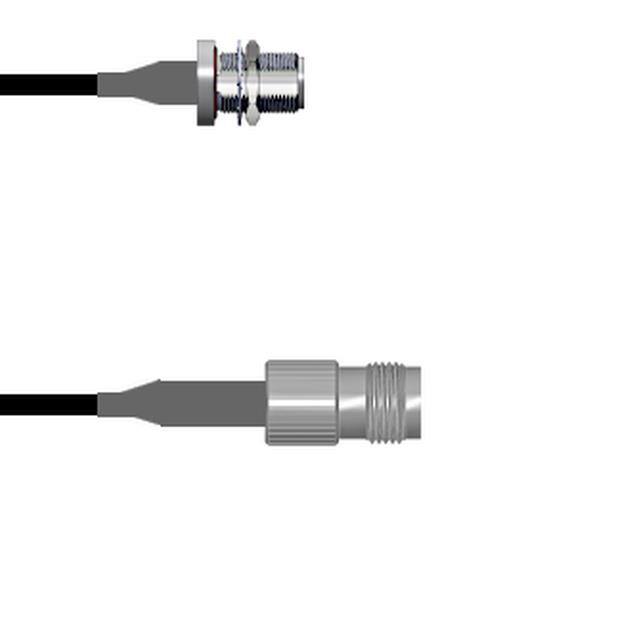

Q-1T04G0003002MCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|

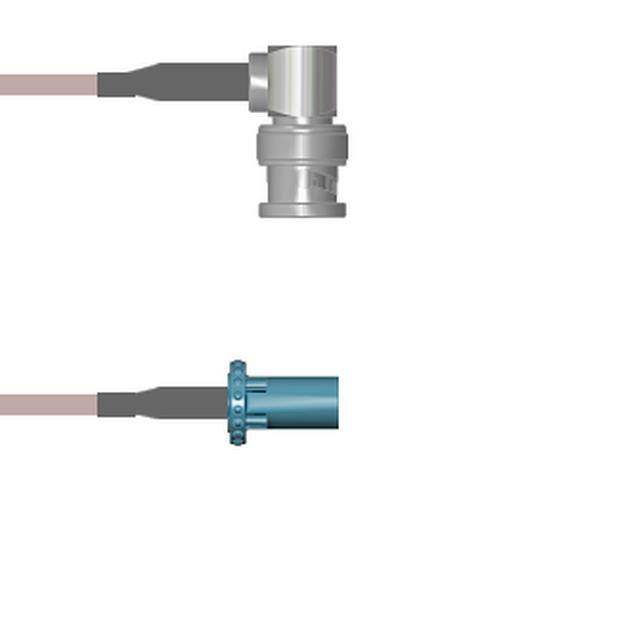

Q-0D05A0005006iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
Q-0304T0003.25MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
Q-0404F0003048iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
RG58-NM-SMRP(QTY:45ft)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 540.0" (13.7m) 45.0' | RG-58 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG58-BM-SM(QTY:45ft)COAX CBL BNC TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 540.0" (13.7m) 45.0' | RG-58 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG58-NF-NF(QTY:45ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 540.0" (13.7m) 45.0' | RG-58 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG58-NF-NM(QTY:45ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 540.0" (13.7m) 45.0' | RG-58 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG58-TNC-TNC(QTY:45ft)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 540.0" (13.7m) 45.0' | RG-58 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG58-SMRP-SMRP(QTY:45ft)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 540.0" (13.7m) 45.0' | RG-58 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
Q-0405200032.5MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 98.4" (2.5m) 8.2' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
Q-030200003012iCOAX CBL BNC TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | BNC to N-Type | BNC Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
Q-1T04F0003002MCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 78.7" (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
|
LMR-195-NF-SM(QTY:7FT)COAX CBL SMA TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-195 | Tape & Box (TB) | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 84.0" (2.1m) 7.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-NF-NF(QTY:7FT)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-195 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 84.0" (2.1m) 7.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-SM-NFBH(QTY:7FT)COAX CBL SMA TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-195 | Tape & Box (TB) | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0" (2.1m) 7.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-SM-SF(QTY:7FT)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
LMR®-195 | Tape & Box (TB) | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 84.0" (2.1m) 7.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-NF-TF(QTY:7FT)COAX CBL N-TYPE TO TNC |
10,000 |
|
Datasheet |
LMR®-195 | Tape & Box (TB) | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 84.0" (2.1m) 7.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-NM-NM(QTY:7FT)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-195 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 84.0" (2.1m) 7.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
