Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMC00669-6COAX CBL SMA TO SMP |
2,163 |
|
- |
- | Bag | Active | SMA to SMP | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .047 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
32061SE-29972AS12-29972AS12-6COAX CBL SMPM TO SMPM |
3,043 |
|
Datasheet |
NANOBEND | Bulk | Active | SMPM to SMPM | SMPM Jack | Female | - | - | SMPM Jack | Female | - | - | 6.000" (152.40mm) | 1.60mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 110 GHz | Silver | - | -55°C ~ 200°C | - | - |
|
|
32061SE-29972AS12-29972AS12-12COAX CBL SMPM TO SMPM |
3,730 |
|
Datasheet |
NANOBEND | Bulk | Active | SMPM to SMPM | SMPM Jack | Female | - | - | SMPM Jack | Female | - | - | 12.00" (304.80mm) | 1.60mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 110 GHz | Silver | - | -55°C ~ 200°C | - | - |
|
|
32061SE-29972AS12-29972AS12-4COAX CBL SMPM TO SMPM |
4,520 |
|
Datasheet |
NANOBEND | Bulk | Active | SMPM to SMPM | SMPM Jack | Female | - | - | SMPM Jack | Female | - | - | 4.000" (101.60mm) | 1.60mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 110 GHz | Silver | - | -55°C ~ 200°C | - | - |
|
|
32061SE-29972AS12-29972AS12-8COAX CBL SMPM TO SMPM |
2,411 |
|
Datasheet |
NANOBEND | Bulk | Active | SMPM to SMPM | SMPM Jack | Female | - | - | SMPM Jack | Female | - | - | 8.000" (203.20mm) | 1.60mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 110 GHz | Silver | - | -55°C ~ 200°C | - | - |
|
|
32061SE-29972AS12-29972AS12-10COAX CBL SMPM TO SMPM |
1,494 |
|
Datasheet |
NANOBEND | Bulk | Active | SMPM to SMPM | SMPM Jack | Female | - | - | SMPM Jack | Female | - | - | 10.000" (254.00mm) | 1.60mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 110 GHz | Silver | - | -55°C ~ 200°C | - | - |
|
095-909-174M10LCOAX CBL N-TYPE TO N-TYPE |
3,238 |
|
Datasheet |
ARC | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 393.7" (10.0m) 32.8' | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|

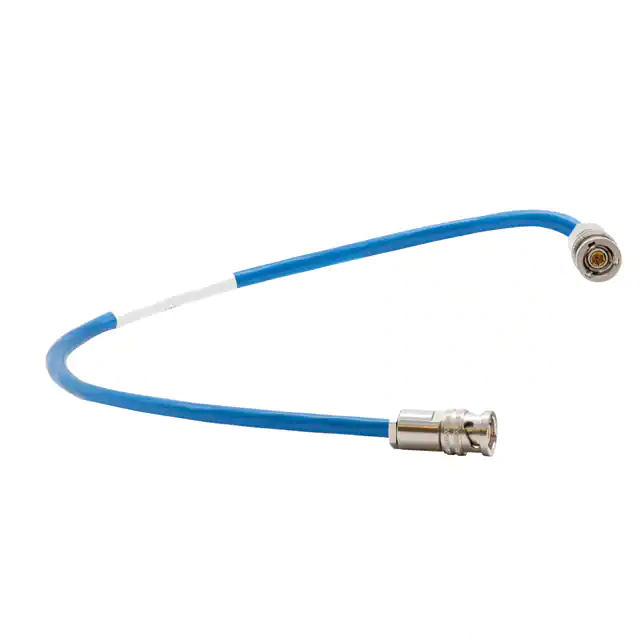

21-20-M1.5COAX CBL TRB TO TRB |
2,710 |
|
Datasheet |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | Free Hanging (In-Line) | - | TRB Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | Twinaxial | - | - | 78 Ohms | 500 GHz | Blue | Shielded | - | - | MIL-STD-1553B |
|
|
MINIBEND KSR-12COAX CBL SMP TO 2.92MM |
2,836 |
|
Datasheet |
MINIBEND | Bulk | Active | SMP to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | SMP Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.086" Semi-Rigid Cable | - | - | 50 Ohms | 40 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
|
LCCA30559-FT10COAX CBL SMA TO TNC |
1,050 |
|
- |
- | Bag | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | LC085TB | - | - | - | 6 GHz | Silver | - | - | - | - |
|
|
LCCA30508-FT10COAX CBL BNC TO N-TYPE |
3,741 |
|
- |
- | Bag | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | LC141TBJ | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -65°C ~ 150°C | - | - |
|
|
LCCA30552-FT10COAX CBL SMA TO N-TYPE |
2,557 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | LC085TB | - | - | - | 10 GHz | Silver | - | - | - | - |
|
|
LCCA30545-FT10COAX CBL SMA TO N-TYPE |
4,563 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | LC085TB | - | - | - | 10 GHz | Silver | - | - | - | - |
|
|
LCCA30009-FT10COAX CBL SMA TO N-TYPE |
2,146 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 120.0" (3.0m) 10.0' | 402SS | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
|
LCCA30541-FT10COAX CBL SMA TO N-TYPE |
4,039 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | LC085TB | 50 Ohms | 50 Ohms | 50 Ohms | 10 GHz | - | - | - | - | - |
|
|
LCCA30582-FT10COAX CBL N-TYPE TO TNC |
4,760 |
|
- |
- | Bag | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | TNC Jack | Female | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | LC085TB | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
FMCA1770-48COAX CBL 4.1/9.5 TO 4.3/10 |
2,683 |
|
- |
- | Bag | Active | 4.1/9.5 to 4.3/10 | 4.1/9.5 Jack | Female | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 165°C | - | - |
|
|
FMC0202400LF-48COAX CBL SMA TO SMA |
2,135 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMC0101600-24COAX CBL N-TYPE TO N-TYPE |
1,626 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 600 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
CT3333-100COAX CBL SMA TO SMA |
4,725 |
|
Datasheet |
- | Bulk | Obsolete | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | - | - | 50 Ohms | 18 GHz | White | - | -65°C ~ 125°C | - | - |
