Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMR-195-LSZH-QM-SFRP(QTY:5Ft)LMR195 LSZH Assy QMA MALE-RP SMA |
1,000 |
|
Datasheet |
LMR® | Spool | Active | RP-SMA to QMA | QMA Plug | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-LSZH-SM-NF(QTY:5Ft)LMR195 LSZH Assy SMA MALE-N FEMA |
1,000 |
|
Datasheet |
LMR® | Spool | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-LSZH-TFBH-TMRP(QTY:5Ft)LMR195 LSZH Assy TNC FEMALE BH-R |
1,000 |
|
Datasheet |
LMR® | Spool | Active | RP-TNC to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | RP-TNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-LSZH-UM-BM(QTY:5Ft)LMR195 LSZH Assy UHF MALE-BNC 5F |
1,000 |
|
Datasheet |
LMR® | Spool | Active | UHF to BNC | UHF Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-LSZH-TM-TMRP(QTY:5Ft)LMR195 LSZH Assy TNC MALE-RP TNC |
1,000 |
|
Datasheet |
LMR® | Spool | Active | RP-TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | RP-TNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-LSZH-TM-SF (QTY:5Ft)LMR195 LSZH Assy TNC MALE-SMA MA |
1,000 |
|
Datasheet |
LMR® | Spool | Active | TNC to SMA | TNC Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-LSZH-TM-UM(QTY:5Ft)LMR195 LSZH Assy TNC MALE-UHF MA |
1,000 |
|
Datasheet |
LMR® | Spool | Active | TNC to UHF | TNC Plug | Male | Free Hanging (In-Line) | - | UHF Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|

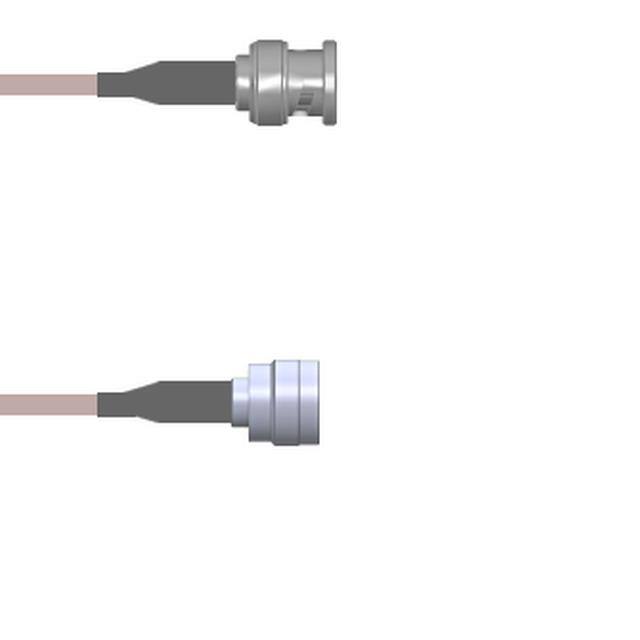

Q-0M056000H006iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

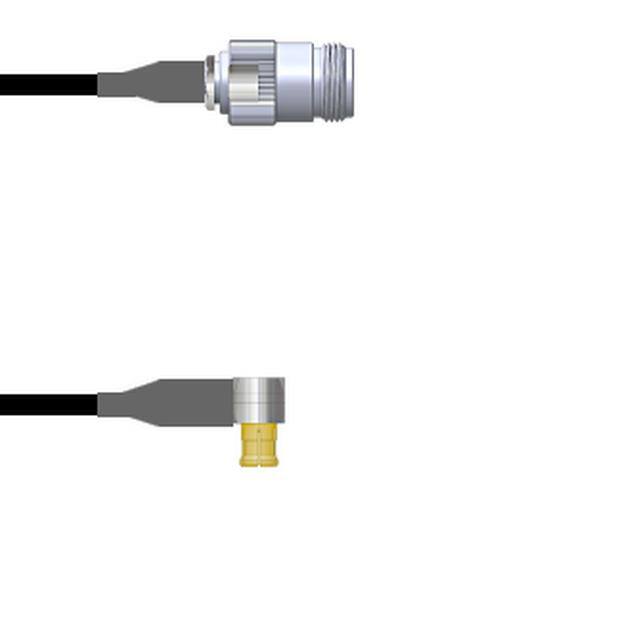

Q-2001A0003002MCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MCX to N-Type | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
RG213-BM-BM(QTY:9 INCH)COAX CBL BNC TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-SMRP-SMRP(QTY:9 INCH)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-NF-NM(QTY:9 INCH)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-BM-SM(QTY:9 INCH)COAX CBL BNC TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG223-TNC-TNC(QTY:3M)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-223 | 50 Ohms | - | - | 12.4 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG213-SM-SM(QTY:9 INCH)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-NF-NF(QTY:9 INCH)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-TM-TM(QTY:9 INCH)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-NM-SMRP(QTY:9 INCH)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG223-SMRP-SMRP(QTY:3M)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-223 | 50 Ohms | - | - | 12.4 GHz | Black | - | -20°C ~ 85°C | - | - |
|
|
RG223-NF-NM(QTY:3M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-223 | 50 Ohms | - | - | 12.4 GHz | Black | - | -20°C ~ 85°C | - | - |
