Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMR-195-FR-TF-BM(QTY:4Ft)LMR195 FR Assy TNC FEMALE-BNC 4F |
1,000 |
|
Datasheet |
LMR® | Spool | Active | TNC to BNC | TNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-FR-TFBH-TF(QTY:4Ft)LMR195 FR Assy TNC FEMALE BH-TNC |
1,000 |
|
Datasheet |
LMR® | Spool | Active | TNC to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-FR-TMRP-NFBH(QTY:4Ft)LMR195 FR Assy RP TNC MALE-N FEM |
1,000 |
|
Datasheet |
LMR® | Spool | Active | RP-TNC to N-Type | RP-TNC Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-FR-TMRP-SMRP(QTY:4Ft)LMR195 FR Assy RP TNC MALE-RP SM |
1,000 |
|
Datasheet |
LMR® | Spool | Active | RP-TNC to RP-SMA | RP-TNC Plug | Male | Free Hanging (In-Line) | - | RP-SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-FR-TMRP-TFBH(QTY:4Ft)LMR195 FR Assy RP TNC MALE-TNC F |
1,000 |
|
Datasheet |
LMR® | Spool | Active | RP-TNC to TNC | RP-TNC Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-195-FR-TM-TMRP(QTY:4Ft)COAX CBL RP-TNC TO TNC |
1,000 |
|
Datasheet |
LMR®-195 | Spool | Active | RP-TNC to TNC | RP-TNC Plug | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|

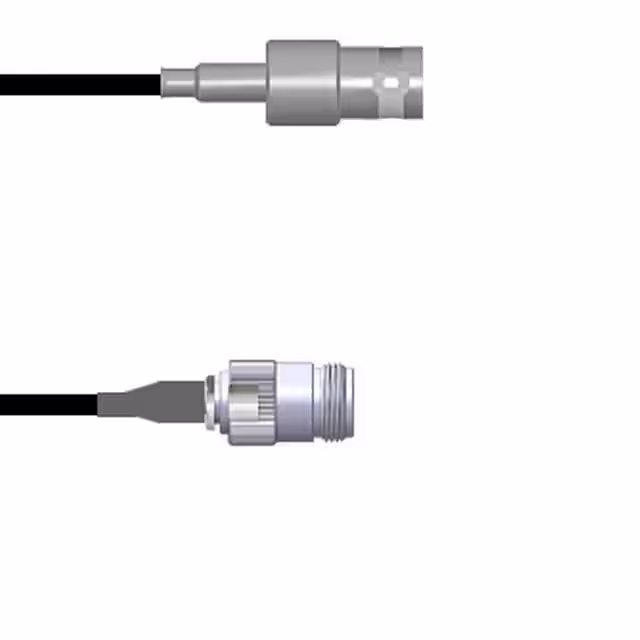

Q-030200003.25MCOAX CBL BNC TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | BNC to N-Type | BNC Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
Q-0D05A00030.5MCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
LMR400-N Male-N Female-10ftCOAX CBL N-TYPE TO N-TYPE |
1,000 |
|
- |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | LMR 400 | - | - | - | - | Black | - | - | - | - |
|
|
RG400-NM-SM(QTY:4FT)COAX CBL SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-400 | 50 Ohms | - | 50 Ohms | 3 GHz | Orange | - | -40°C ~ 200°C | - | - |
|
|
RG400-SM-SM(QTY:4FT)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-400 | 50 Ohms | - | 50 Ohms | 3 GHz | Orange | - | -40°C ~ 200°C | - | - |
|
|
RG400-BM-BM(QTY:4FT)COAX CBL BNC TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-400 | 50 Ohms | - | 50 Ohms | 3 GHz | Orange | - | -40°C ~ 200°C | - | - |
|
|
RG400-NM-NM(QTY:4FT)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-400 | 50 Ohms | - | 50 Ohms | 3 GHz | Orange | - | -40°C ~ 200°C | - | - |
|
|
RG400-NM-UM(QTY:4FT)COAX CBL N-TYPE TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to UHF | N-Type Plug | Male | Free Hanging (In-Line) | - | UHF Plug | Male | - | - | 48.0" (1.2m) 4.0' | RG-400 | - | - | - | - | - | - | - | - | - |
|
|
RG400-NM-NMRA(QTY:4FT)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-400 | 50 Ohms | - | 50 Ohms | 3 GHz | Orange | - | -40°C ~ 200°C | - | - |
|
|
RG400-BM-NM(QTY:4FT)COAX CBL BNC TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-400 | 50 Ohms | - | 50 Ohms | 3 GHz | Orange | - | -40°C ~ 200°C | - | - |
|
|
RG400-UM-UM(QTY:4FT)COAX CBL UHF TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | UHF to UHF | UHF Plug | Male | - | - | UHF Plug | Male | - | - | 48.0" (1.2m) 4.0' | RG-400 | - | - | - | - | - | - | - | - | - |
|
|
RG400-UM-NMRA(QTY:4FT)COAX CBL N-TYPE TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to UHF | UHF Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 48.0" (1.2m) 4.0' | RG-400 | - | - | - | - | - | - | - | - | - |
|
|
RG400-TM-NM(QTY:4FT)COAX CBL N-TYPE TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-400 | 50 Ohms | - | 50 Ohms | 3 GHz | Orange | - | -40°C ~ 200°C | - | - |
|

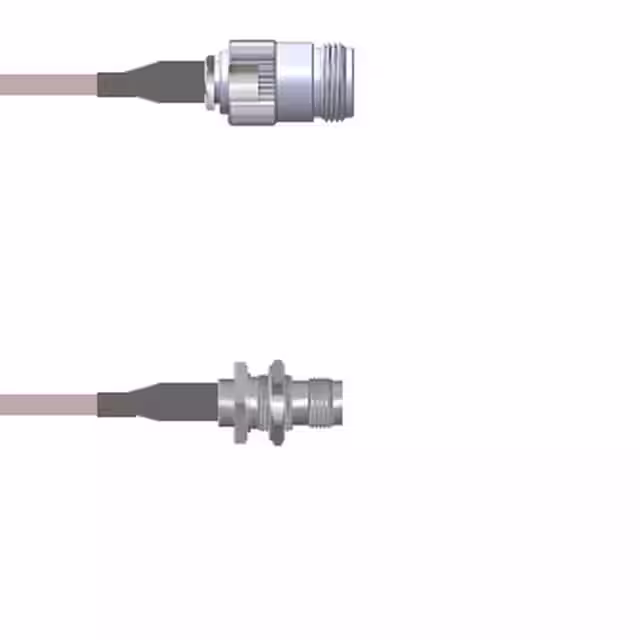

Q-2004F0005024iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
