Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q-0E02Y00082.5MCOAX CBL BNC TO SMA |
1,556 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 98.4" (2.5m) 8.2' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
095-909-174-108COAX CBL N-TYPE TO N-TYPE |
3,747 |
|
Datasheet |
ARC | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
LCCA31278-FT6COAX CBL SMA TO MCX |
1,067 |
|
Datasheet |
LCCA | Bulk | Active | SMA to MCX | SMA Jack | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31354-FT6COAX CBL BNC TO MCX |
1,097 |
|
Datasheet |
LCCA | Bulk | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31368-FT6COAX CBL TNC TO TNC |
1,283 |
|
Datasheet |
LCCA | Bulk | Active | TNC to TNC | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31216-FT2COAX CBL SMB TO SMB |
2,122 |
|
Datasheet |
LCCA | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31169-FT2COAX CBL MCX TO TNC |
1,765 |
|
Datasheet |
LCCA | Bulk | Active | MCX to TNC | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
4846-X-24COAX CBL SMA TO SMA |
1,457 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-142B DS | 50 Ohms | - | 50 Ohms | - | Brown | Shielded | 200°C | - | - |
|
|
4846-X-60COAX CBL SMA TO SMA |
4,992 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-142B DS | 50 Ohms | - | 50 Ohms | - | Brown | Shielded | 200°C | - | - |
|
|
LCCA31374-FT1.5COAX CBL SMB TO SMB |
3,591 |
|
Datasheet |
LCCA | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31415-FT1.5COAX CBL TNC TO TNC |
1,977 |
|
Datasheet |
LCCA | Bulk | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31373-FT1.5COAX CBL SMB TO SMB |
2,115 |
|
Datasheet |
LCCA | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31421-FT1.5COAX CBL TNC TO TNC |
3,643 |
|
Datasheet |
LCCA | Bulk | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
Q-0B03F000H001MCOAX CBL BNC TO SMA |
2,871 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
FMC00550-6COAX CBL SMA TO SMA |
2,428 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .047 | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
FMCA2676/RD-300COAX CBL HD-BNC TO HD-BNC |
2,524 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Red | - | -20°C ~ 75°C | - | - |
|
|
FMCA2676/VL-300COAX CBL HD-BNC TO HD-BNC |
4,339 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Violet | - | -20°C ~ 75°C | - | - |
|

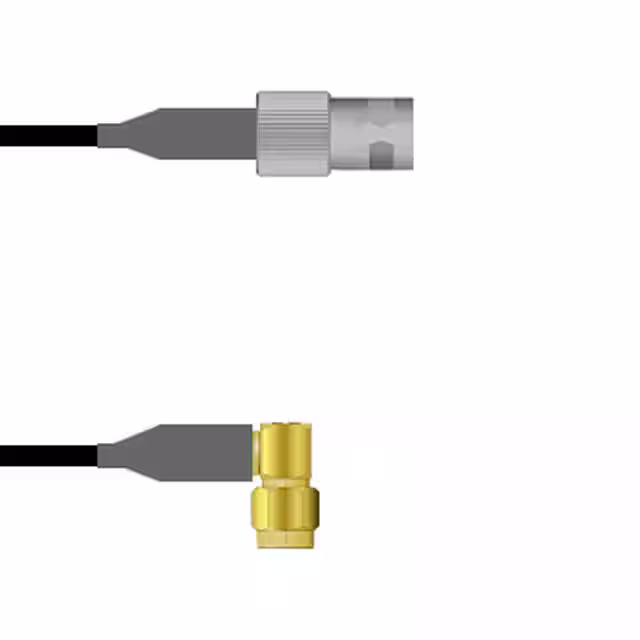

Q-090360008003MCOAX CBL BNC TO SMA |
1,124 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
LCCA31018-FT2COAX CBL 4.3/10 TO 4.3/10 |
3,601 |
|
- |
- | Bag | Active | 4.3/10 to 4.3/10 | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | - |
|
|
LCCA31032-FT5COAX CBL SMA TO N-TYPE |
1,633 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
