Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-215M500COAX CBL BNC TO HD-BNC |
3,772 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | Belden 4505R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
LCCA31439-FT0.5COAX CBL SMA TO SMA |
3,864 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31354-FT3COAX CBL BNC TO MCX |
3,004 |
|
Datasheet |
LCCA | Bulk | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31278-FT3COAX CBL SMA TO MCX |
2,428 |
|
Datasheet |
LCCA | Bulk | Active | SMA to MCX | SMA Jack | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31368-FT3COAX CBL TNC TO TNC |
2,130 |
|
Datasheet |
LCCA | Bulk | Active | TNC to TNC | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
FMCA2394-3COAX CBL SMA TO CABLE |
2,367 |
|
- |
- | Bag | Active | SMA to Cable | SMA Jack | Female | Panel Mount | Flange | Cable (Round) | - | - | - | 3.000" (76.20mm) | Hand Formable .047 | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | - | - | - |
|
|
FMCA2395-6COAX CBL SMA TO CABLE |
4,445 |
|
- |
- | Bag | Active | SMA to Cable | SMA Jack | Female | Panel Mount | Flange | Cable (Round) | - | - | - | 6.000" (152.40mm) | Hand Formable .047 | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | - | - | - |
|
|
FMCA2394-9COAX CBL SMA TO CABLE |
2,123 |
|
- |
- | Bag | Active | SMA to Cable | SMA Jack | Female | Panel Mount | Flange | Cable (Round) | - | - | - | 9.000" (228.60mm) | Hand Formable .047 | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | - | - | - |
|
|
FMCA2394-6COAX CBL SMA TO CABLE |
4,281 |
|
- |
- | Bag | Active | SMA to Cable | SMA Jack | Female | Panel Mount | Flange | Cable (Round) | - | - | - | 6.000" (152.40mm) | Hand Formable .047 | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | - | - | - |
|
|
LCCA31107-FT6COAX CBL SMA TO SMA |
2,036 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
PTRY-48-50COAX CBL TRB TO TRB |
4,340 |
|
- |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | - | - | TRB Plug | Male | - | - | 48.0" (1.2m) 4.0' | Triaxial | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
PTWY-48-124COAX CBL TRB TO TRB |
2,591 |
|
- |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | - | - | TRB Plug | Male | - | - | 48.0" (1.2m) 4.0' | Twinaxial | - | - | 124 Ohms | - | - | - | - | - | - |
|
|
PTWY-48-78COAX CBL TRB TO TRB |
2,934 |
|
- |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | - | - | TRB Plug | Male | - | - | 48.0" (1.2m) 4.0' | Twinaxial | - | - | 78 Ohms | - | - | - | - | - | - |
|
|
LCCA31326-FT1COAX CBL SMA TO TNC |
1,897 |
|
Datasheet |
LCCA | Bulk | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31116-FT1COAX CBL SMA TO SMA |
3,683 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31146-FT1COAX CBL SMA TO SMA |
3,726 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31439-FT1COAX CBL SMA TO SMA |
2,581 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31082-FT3COAX CBL BNC TO SMA |
4,729 |
|
Datasheet |
- | Bulk | Active | BNC to SMA | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
IJ5C-06-0305-S-D-NUS-1COAX CBL IJ5C TO IJ5C |
2,903 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to IJ5C | IJ5C Jack | Female | Free Hanging (In-Line) | - | IJ5C Jack | Female | Free Hanging (In-Line) | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|

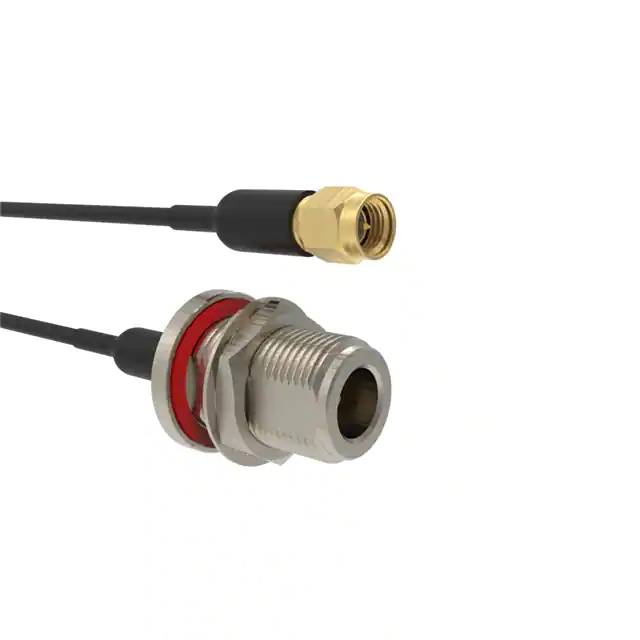

095-902-530M300COAX CBL SMA TO N-TYPE |
3,326 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-142 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
