Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMCA2461-36COAX CBL 4.1/9.5 TO 4.3/10 |
3,519 |
|
- |
- | Bag | Active | 4.1/9.5 to 4.3/10 | 4.1/9.5 Jack | Female | Free Hanging (In-Line) | - | 4.3/10 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -40°C ~ 85°C | - | - |
|
|
MINIBEND-9HTCOAX CBL SMA TO SMA |
4,859 |
|
Datasheet |
MINIBEND | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | 0.086" Semi-Rigid Cable | - | - | 50 Ohms | 24 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
LCCA31005-FT5COAX CBL 7/16 DIN TO 7/16 DIN |
4,738 |
|
- |
- | Bag | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | - |
|
|
LCCA31044-FT4COAX CBL N-TYPE TO N-TYPE |
4,114 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
LCCA31042-M1COAX CBL SMA TO NEX |
1,355 |
|
- |
- | Bag | Active | SMA to NEX | SMA Plug | Male | Free Hanging (In-Line) | - | NEX10 Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
PTRY-36-50COAX CBL TRB TO TRB |
1,435 |
|
- |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | - | - | TRB Plug | Male | - | - | 36.00" (914.40mm) | Triaxial | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
PTWY-36-124COAX CBL TRB TO TRB |
2,112 |
|
- |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | - | - | TRB Plug | Male | - | - | 36.00" (914.40mm) | Twinaxial | - | - | 124 Ohms | - | - | - | - | - | - |
|
|
PTWY-36-78COAX CBL TRB TO TRB |
1,252 |
|
- |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | - | - | TRB Plug | Male | - | - | 36.00" (914.40mm) | Twinaxial | - | - | 78 Ohms | - | - | - | - | - | - |
|
|
LCCA31107-FT3COAX CBL SMA TO SMA |
2,928 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
Q-0F00M000H003FCOAX CBL BNC TO BNC |
1,881 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

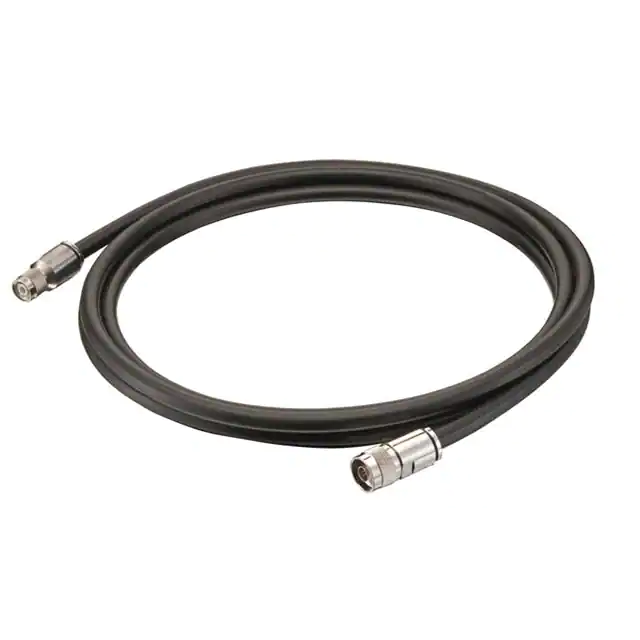

20932040106COAX CBL N-TYPE TO TNC |
3,624 |
|
Datasheet |
Ha-VIS | Bulk | Obsolete | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-213 | 50 Ohms | - | 50 Ohms | - | Black | - | -55°C ~ 85°C | - | - |
|
|
LCCA31354-FT2COAX CBL BNC TO MCX |
3,479 |
|
Datasheet |
LCCA | Bulk | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31278-FT2COAX CBL SMA TO MCX |
1,521 |
|
Datasheet |
LCCA | Bulk | Active | SMA to MCX | SMA Jack | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31368-FT2COAX CBL TNC TO TNC |
4,171 |
|
Datasheet |
LCCA | Bulk | Active | TNC to TNC | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
0897621583COAX CBL 2.92MM TO 2.92MM |
3,290 |
|
Datasheet |
89762 | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 15.00" (381.00mm) | 1.42mm OD Coaxial Cable | - | - | 50 Ohms | - | Blue | - | -65°C ~ 165°C | - | - |
|
Q-0E02Y0008001FCOAX CBL BNC TO SMA |
2,940 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
LCCA30437-FT6COAX CBL BNC TO N-TYPE |
3,828 |
|
- |
- | Bag | Active | BNC to N-Type | BNC Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | LC141TB | 50 Ohms | 50 Ohms | 50 Ohms | 2 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
LCCA30441-FT5COAX CBL BNC TO N-TYPE |
1,320 |
|
- |
- | Bag | Active | BNC to N-Type | BNC Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LC141TB | 50 Ohms | 50 Ohms | 50 Ohms | 2 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
LCCA30541-FT6COAX CBL SMA TO N-TYPE |
2,117 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | LC085TB | 50 Ohms | 50 Ohms | 50 Ohms | 10 GHz | - | - | - | - | - |
|
|
LCCA30551-FT6COAX CBL SMA TO N-TYPE |
1,628 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | LC085TB | - | - | - | 10 GHz | Silver | - | - | - | - |
