Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCCA31041-M2COAX CBL SMA TO N-TYPE |
2,058 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 78.7" (2.0m) 6.6' | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -40°C ~ 125°C | - | - |
|
|
LCCA30222-FT5COAX CBL N-TYPE TO N-TYPE |
2,341 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0" (1.5m) 5.0' | LMR 600 DB | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA31082-FT6COAX CBL BNC TO SMA |
4,534 |
|
Datasheet |
- | Bulk | Active | BNC to SMA | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
PTRY-12-50COAX CBL TRB TO TRB |
2,649 |
|
- |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | - | - | TRB Plug | Male | - | - | 12.00" (304.80mm) | Triaxial | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
PTWY-12-124COAX CBL TRB TO TRB |
2,641 |
|
- |
- | Bulk | Active | TRB to TRB | TRB Plug | Male | - | - | TRB Plug | Male | - | - | 12.00" (304.80mm) | Twinaxial | - | - | 124 Ohms | - | - | - | - | - | - |
|
Q-0B03F000H003FCOAX CBL BNC TO SMA |
4,258 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
CCSMA642-MM-086F-36COAX CBL SMA TO SMA |
4,369 |
|
Datasheet |
CCSMA642 | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | 2.54mm OD Coaxial Cable | - | - | 50 Ohms | 12.6 GHz | Blue | Shielded | -45°C ~ 85°C | - | - |
|
|
LCCA31043-M1COAX CBL 7/16 DIN TO N-TYPE |
4,072 |
|
- |
- | Bag | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
LCCA31424-FT4COAX CBL SMA TO SMA |
2,252 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31281-FT1COAX CBL BNC TO SMB |
2,044 |
|
Datasheet |
LCCA | Bulk | Active | BNC to SMB | BNC Jack | Female | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31422-FT4COAX CBL SMA TO SMA |
2,464 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31305-FT1COAX CBL SMA TO SMA |
1,187 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31442-FT1COAX CBL SMA TO SMA |
1,547 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31370-FT1COAX CBL TNC TO TNC |
3,172 |
|
Datasheet |
LCCA | Bulk | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31154-FT6COAX CBL RP-SMA TO RP-SMA |
2,220 |
|
Datasheet |
- | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31323-FT6COAX CBL SMA TO TNC |
4,586 |
|
Datasheet |
LCCA | Bulk | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|

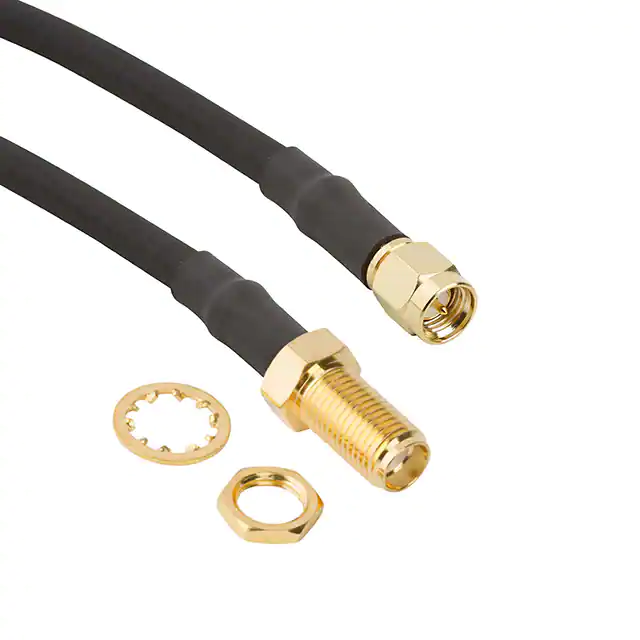

095-902-481-036COAX CBL SMA TO SMA |
3,268 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
LCCA31442-FT1.5COAX CBL SMA TO SMA |
1,583 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
IJ5C-04-0991-S-D-NUS-1COAX CBL IJ5C TO IJ5C |
1,112 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to IJ5C | IJ5C Jack | Female | Free Hanging (In-Line) | - | IJ5C Jack | Female | Free Hanging (In-Line) | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
095-909-175M300COAX CBL N-TYPE TO N-TYPE |
3,810 |
|
Datasheet |
ARC | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
