Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

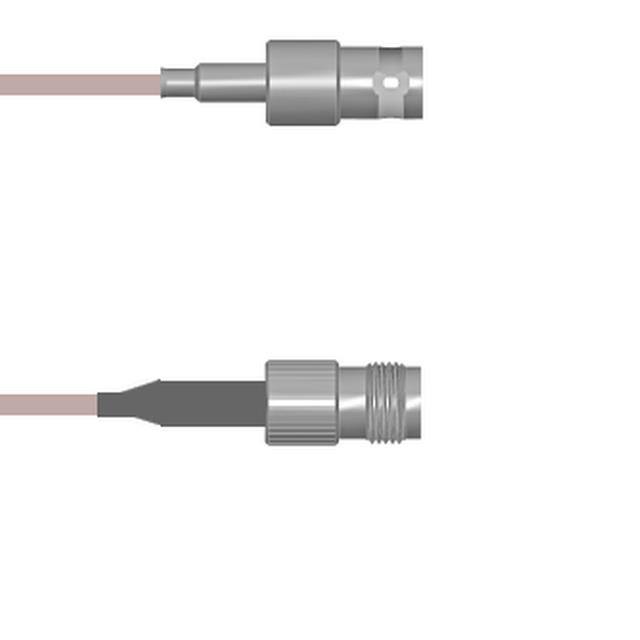

Q-0304G0005018iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

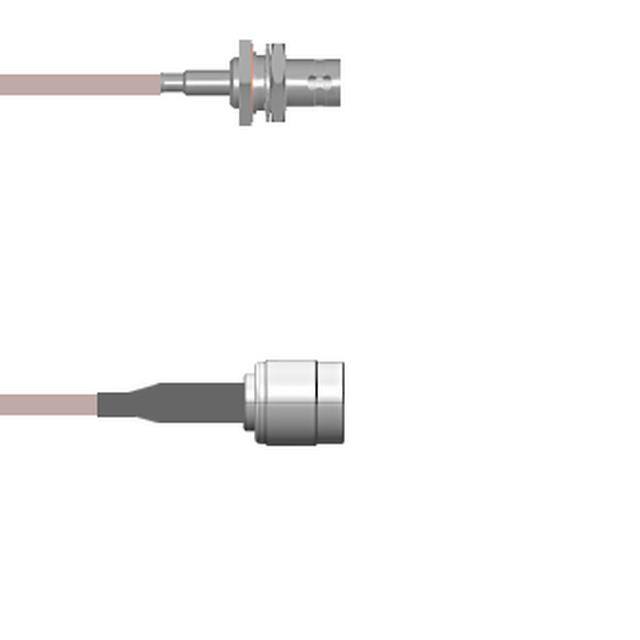

Q-0405200050.5MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-316 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
RG213-BM-BM(QTY:6 INCH)COAX CBL BNC TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-TM-TM(QTY:6 INCH)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-NM-SMRP(QTY:6 INCH)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-NF-NM(QTY:6 INCH)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-SM-SM(QTY:6 INCH)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-BM-SM(QTY:6 INCH)COAX CBL BNC TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-TNC-TNC(QTY:6 INCH)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-NF-NF(QTY:6 INCH)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
RG213-SMRP-SMRP(QTY:6 INCH)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-213 | 50 Ohms | - | - | 3 GHz | - | - | -20°C ~ 80°C | - | - |
|
|
LMR-100-SMRA-SMRA(QTY:17ft)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
LMR®-100 | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 204.0" (5.2m) 17.0' | LMR 100 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-100-SF-SMRA(QTY:17ft)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
LMR®-100 | Bulk | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 204.0" (5.2m) 17.0' | LMR 100 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-100-NF-SMRA(QTY:17ft)COAX CBL SMA TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-100 | Bulk | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 204.0" (5.2m) 17.0' | LMR 100 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-100-SM-SMRA(QTY:17ft)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
LMR®-100 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 204.0" (5.2m) 17.0' | LMR 100 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-100-SMRA-SM(QTY:17ft)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
LMR®-100 | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 204.0" (5.2m) 17.0' | LMR 100 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-100-SF-TFBH(QTY:17ft)COAX CBL SMA TO TNC |
10,000 |
|
Datasheet |
LMR®-100 | Bulk | Active | SMA to TNC | SMA Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 204.0" (5.2m) 17.0' | LMR 100 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-100-NM-SMRA(QTY:17ft)COAX CBL SMA TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-100 | Bulk | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 204.0" (5.2m) 17.0' | LMR 100 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|

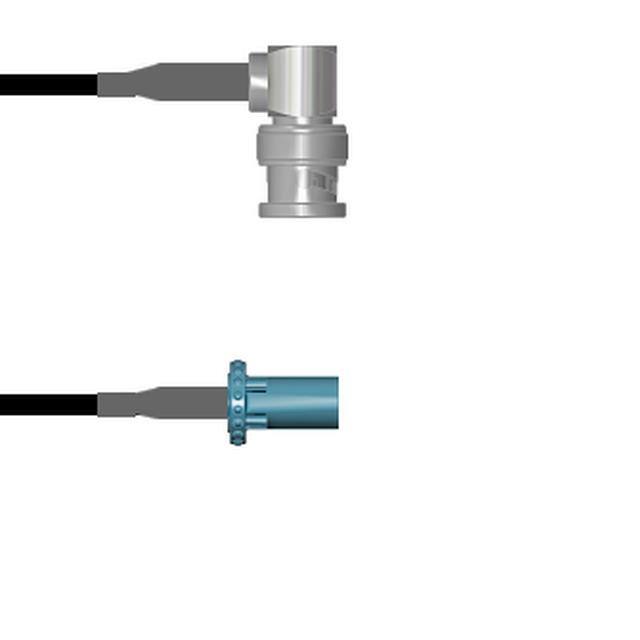

Q-0D05A0003018iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|

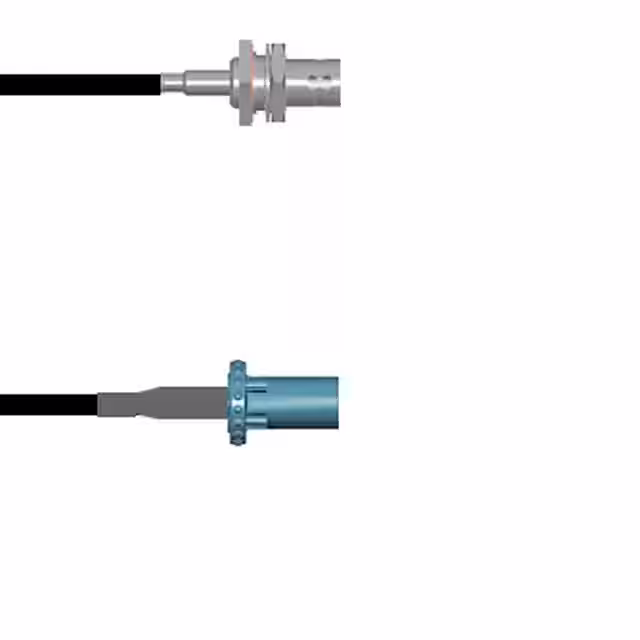

Q-0405A0003060iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
