Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

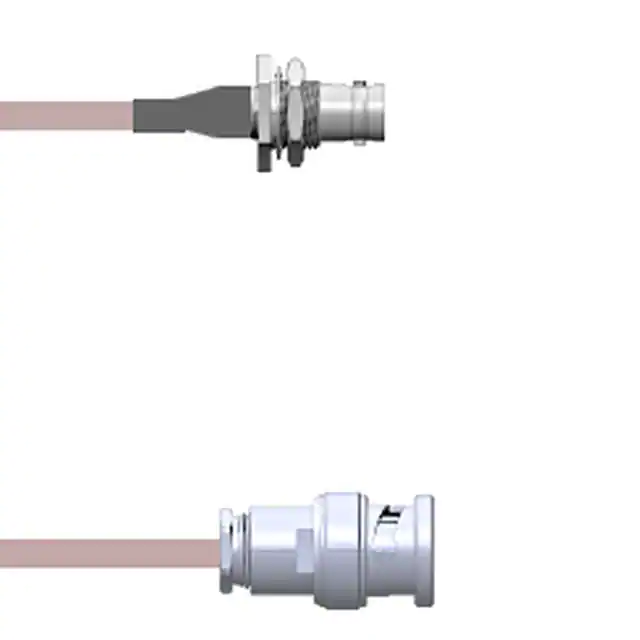

Q-0100I00010.5MCOAX CBL BNC TO BNC |
1,643 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
LCCA31159-FT2COAX CBL SMA TO SMA |
2,683 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31160-FT2COAX CBL SMA TO SMA |
3,487 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31276-FT2COAX CBL SMA TO MCX |
4,384 |
|
Datasheet |
LCCA | Bulk | Active | SMA to MCX | SMA Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31352-FT2COAX CBL BNC TO SMA |
2,460 |
|
Datasheet |
LCCA | Bulk | Active | BNC to SMA | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31312-FT2COAX CBL SMA TO SMB |
2,148 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMB | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31331-FT2COAX CBL SMA TO SMA |
2,363 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31361-FT2COAX CBL SMC TO SMC |
4,368 |
|
Datasheet |
LCCA | Bulk | Active | SMC to SMC | SMC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
CA-6RTPNM010COAX CBL RP-TNC TO N-TYPE |
1,754 |
|
- |
- | Bag | Active | RP-TNC to N-Type | RP-TNC Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | LMR 600 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
LCCA30343-FT5COAX CBL N-TYPE TO TNC |
2,666 |
|
- |
- | Bag | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | TNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 600 DB | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30345-FT1COAX CBL N-TYPE TO TNC |
3,068 |
|
- |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 600 DB | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30335-FT3COAX CBL 7/16 DIN TO N-TYPE |
2,342 |
|
- |
- | Bag | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 36.00" (914.40mm) | LMR 600 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30346-FT6COAX CBL 7/16 DIN TO N-TYPE |
1,507 |
|
- |
- | Bag | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | LMR 600 DB | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30263-FT3COAX CBL N-TYPE TO TNC |
3,510 |
|
- |
- | Bag | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 36.00" (914.40mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 2 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30222-FT1.5COAX CBL N-TYPE TO N-TYPE |
4,028 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00" (457.20mm) | LMR 600 DB | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30215-FT2COAX CBL N-TYPE TO N-TYPE |
4,612 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | LMR 600 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30140-FT1.5COAX CBL N-TYPE TO N-TYPE |
1,975 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LC085TBJ | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
LCCA30339-FT5COAX CBL 4.3/10 TO N-TYPE |
3,040 |
|
- |
- | Bag | Active | 4.3/10 to N-Type | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 60.0" (1.5m) 5.0' | LMR 600 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA31187-FT4COAX CBL BNC TO SMB |
4,276 |
|
Datasheet |
LCCA | Bulk | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31198-FT4COAX CBL BNC TO BNC |
3,259 |
|
Datasheet |
LCCA | Bulk | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
