Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCCA31310-FT6COAX CBL SMA TO SMA |
2,928 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31258-FT6COAX CBL MCX TO MCX |
4,155 |
|
Datasheet |
LCCA | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31317-FT6COAX CBL SMA TO SMB |
2,991 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMB | SMA Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31295-FT6COAX CBL SMB TO SMB |
1,490 |
|
Datasheet |
LCCA | Bulk | Active | SMB to SMB | SMB Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31078-FT2COAX CBL BNC TO SMA |
1,477 |
|
Datasheet |
- | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31096-FT2COAX CBL SMA TO FAKRA |
1,915 |
|
Datasheet |
- | Bulk | Active | SMA to Fakra | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31014-FT1COAX CBL 7/16 DIN TO 7/16 DIN |
4,144 |
|
- |
- | Bag | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | - |
|
|
LCCA31000-FT1COAX CBL N-TYPE TO NEX |
1,974 |
|
- |
- | Bag | Active | N-Type to NEX | N-Type Plug | Male | Free Hanging (In-Line) | - | NEX10 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | - |
|
|
LCCA31023-FT4COAX CBL 7/16 DIN TO 7/16 DIN |
4,441 |
|
- |
- | Bag | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | SPO-500 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA31043-FT1COAX CBL 7/16 DIN TO N-TYPE |
3,285 |
|
- |
- | Bag | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
095-909-174M050COAX CBL N-TYPE TO N-TYPE |
2,101 |
|
Datasheet |
ARC | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-850-216-180COAX CBL BNC TO HD-BNC |
3,649 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | Belden 4694R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
Q-0D0040005006FCOAX CBL BNC TO BNC |
2,944 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0" (1.8m) 6.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
6720005246COAX CBL N-TYPE TO N-TYPE |
2,772 |
|
- |
- | Bulk | Obsolete | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 12.00" (304.80mm) | PFP 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
6720005247COAX CBL N-TYPE TO N-TYPE |
4,027 |
|
- |
- | Bulk | Obsolete | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 24.00" (609.60mm) | PFP 400 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA31096-FT3COAX CBL SMA TO FAKRA |
2,822 |
|
Datasheet |
- | Bulk | Active | SMA to Fakra | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31078-FT3COAX CBL BNC TO SMA |
1,029 |
|
Datasheet |
- | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31140-FT2COAX CBL SMA TO MCX |
3,681 |
|
Datasheet |
- | Bulk | Active | SMA to MCX | SMA Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31135-FT2COAX CBL SMA TO MCX |
2,318 |
|
Datasheet |
- | Bulk | Active | SMA to MCX | SMA Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|

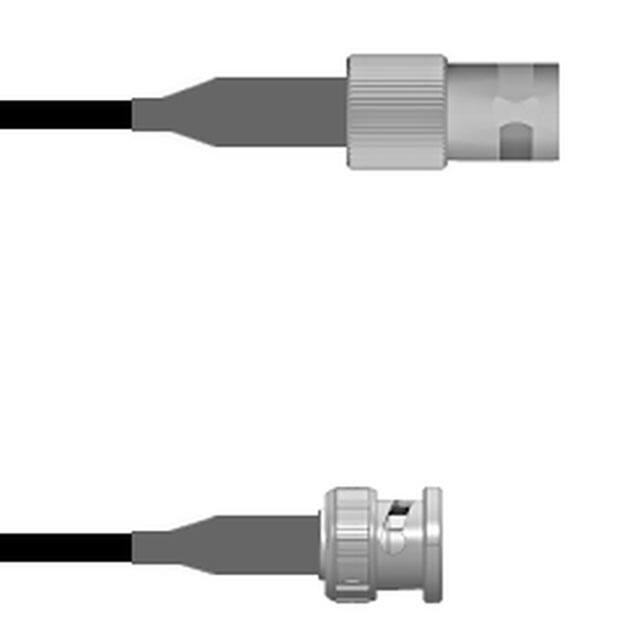

Q-0900L0008007FCOAX CBL BNC TO BNC |
3,549 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 84.0" (2.1m) 7.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
