Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCCA31309-FT6COAX CBL SMA TO SMA |
4,021 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA30800/BK-FT25COAX CBL HD-BNC TO HD-BNC |
1,700 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Black | - | -20°C ~ 75°C | - | - |
|
|
LCCA31031-FT1COAX CBL 4.3/10 TO 7/16 DIN |
3,439 |
|
- |
- | Bag | Active | 4.3/10 to 7/16 DIN | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
CA-085FNMNF006COAX CBL N-TYPE TO N-TYPE |
3,095 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .085 | 50 Ohms | - | 50 Ohms | 18 GHz | Silver | - | - | - | - |
|
|
CA-085SCNMNF006COAX CBL N-TYPE TO N-TYPE |
4,158 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.085" Semi-Rigid Cable | 50 Ohms | - | 50 Ohms | 18 GHz | Silver | - | - | - | - |
|
|
LCCA31058-FT3COAX CBL N-TYPE TO N-TYPE |
2,507 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | SPP-375LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -40°C ~ 125°C | - | - |
|
|
LCCA31067-M2COAX CBL 2.2/5 TO QMA |
3,063 |
|
- |
- | Bag | Active | 2.2/5 to QMA | 2.2/5 Plug | Male | Free Hanging (In-Line) | - | QMA Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Blue | - | -40°C ~ 85°C | - | - |
|
|
LCCA31001-FT5COAX CBL 7/16 DIN TO N-TYPE |
2,791 |
|
- |
- | Bag | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 60.0" (1.5m) 5.0' | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA31170-FT2COAX CBL BNC TO SMC |
3,768 |
|
Datasheet |
LCCA | Bulk | Active | BNC to SMC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31234-FT2COAX CBL RP-SMA TO FAKRA |
1,468 |
|
Datasheet |
LCCA | Bulk | Active | RP-SMA to Fakra | RP-SMA Jack | Male | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31182-FT2COAX CBL BNC TO BNC |
3,036 |
|
Datasheet |
LCCA | Bulk | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31239-FT2COAX CBL MCX TO MCX |
1,777 |
|
Datasheet |
LCCA | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
CBL-400-50FT-N1CL-XX50 FT 0 IN PFP 400, N MALE CLAMP |
2,778 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

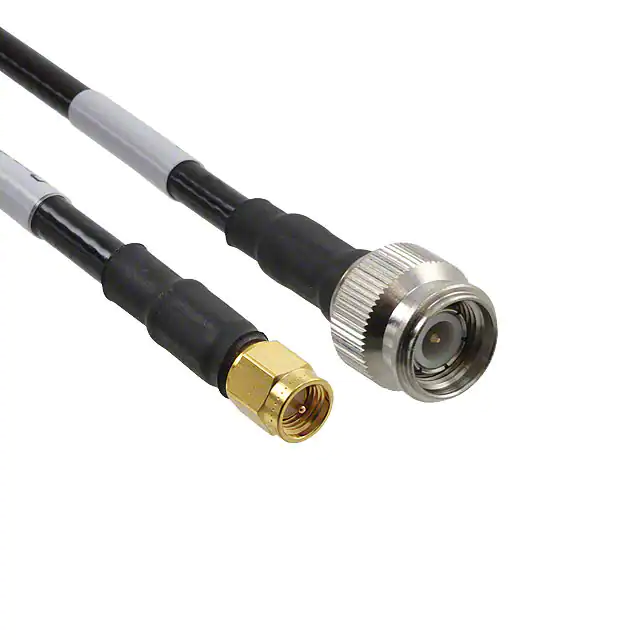

20932040102COAX CBL SMA TO TNC |
3,557 |
|
Datasheet |
Ha-VIS | Bulk | Obsolete | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | - | - | - | 50 Ohms | 870 GHz | Black | - | -40°C ~ 80°C | - | - |
|
|
LCCA31376-FT1.5COAX CBL SMB TO SMB |
4,455 |
|
Datasheet |
LCCA | Bulk | Active | SMB to SMB | SMB Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31406-FT1.5COAX CBL SMC TO SMC |
2,602 |
|
Datasheet |
LCCA | Bulk | Active | SMC to SMC | SMC Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31447-FT1.5COAX CBL SMA TO SMA |
2,648 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31113-FT2COAX CBL RP-SMA TO RP-SMA |
4,431 |
|
Datasheet |
- | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
R285417000COAX CBL BNC TO BNC |
1,214 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | - | - | -40°C ~ 85°C | - | - |
|
Q-0103A00010.5FCOAX CBL BNC TO SMA |
3,777 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
