Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-157M10LCOAX CBL 1.0/2.3 TO HD-BNC |
4,445 |
|
Datasheet |
- | Bulk | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 393.7" (10.0m) 32.8' | Belden 1694A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
LCCA31214-FT3COAX CBL SMB TO SMB |
1,802 |
|
Datasheet |
LCCA | Bulk | Active | SMB to SMB | SMB Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31175-FT3COAX CBL SMC TO SMC |
2,676 |
|
Datasheet |
LCCA | Bulk | Active | SMC to SMC | SMC Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31090-FT3COAX CBL SMA TO FAKRA |
2,974 |
|
Datasheet |
- | Bulk | Active | SMA to Fakra | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31097-FT3COAX CBL SMA TO FAKRA |
1,844 |
|
Datasheet |
- | Bulk | Active | SMA to Fakra | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31105-FT3COAX CBL SMA TO SMA |
3,297 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31106-FT3COAX CBL SMA TO SMA |
1,954 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|

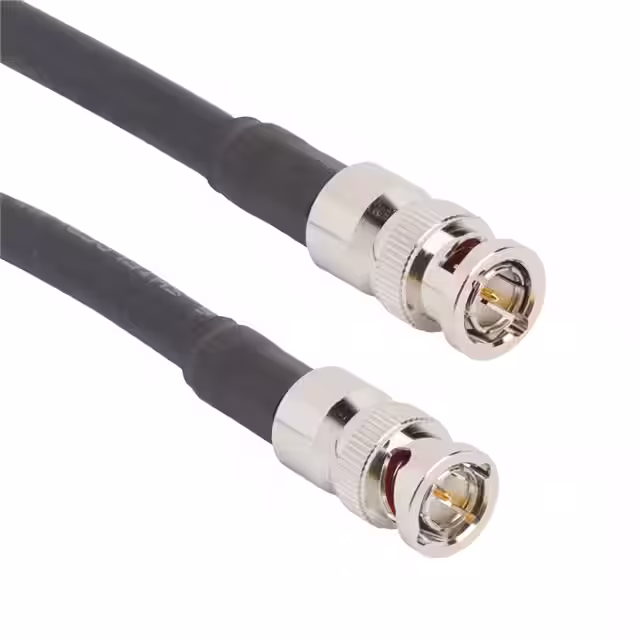

095-850-186-120COAX CBL BNC TO BNC |
2,880 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
095-909-175M075COAX CBL N-TYPE TO N-TYPE |
3,537 |
|
Datasheet |
ARC | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
LCCA31147-FT2COAX CBL SMA TO SMA |
4,047 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31125-FT2COAX CBL BNC TO SMA |
4,624 |
|
Datasheet |
- | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31303-FT2COAX CBL RP-SMA TO BNC |
1,978 |
|
Datasheet |
LCCA | Bulk | Active | RP-SMA to BNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31304-FT2COAX CBL RP-SMA TO BNC |
3,021 |
|
Datasheet |
LCCA | Bulk | Active | RP-SMA to BNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31319-FT2COAX CBL SMA TO SMB |
4,170 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMB | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31285-FT2COAX CBL BNC TO SMB |
2,788 |
|
Datasheet |
LCCA | Bulk | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31259-FT2COAX CBL MCX TO MCX |
4,431 |
|
Datasheet |
LCCA | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31348-FT2COAX CBL BNC TO FAKRA |
4,791 |
|
Datasheet |
LCCA | Bulk | Active | BNC to Fakra | BNC Plug | Male | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31175-FT4COAX CBL SMC TO SMC |
1,662 |
|
Datasheet |
LCCA | Bulk | Active | SMC to SMC | SMC Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31214-FT4COAX CBL SMB TO SMB |
4,937 |
|
Datasheet |
LCCA | Bulk | Active | SMB to SMB | SMB Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
Q-0D0030005006FCOAX CBL BNC TO BNC |
2,698 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
