Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-902-506M400COAX CBL SMA TO SMA |
3,888 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 157.5" (4.0m) 13.1' | LMR 200 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | - | - | - |
|
|
LCCA31120-FT2COAX CBL SMA TO SMA |
4,448 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
175106-25-24.00COAX CBL N-TYPE TO N-TYPE |
1,576 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-400 | 50 Ohms | - | 50 Ohms | - | - | Shielded | - | - | - |
|
|
095-725-114M100COAX CBL SMPM TO SMPM |
1,535 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug, Right Angle | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 0.085" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
|
LCCA31236-FT3COAX CBL MCX TO MCX |
1,949 |
|
Datasheet |
LCCA | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31237-FT3COAX CBL MCX TO MCX |
4,142 |
|
Datasheet |
LCCA | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31178-FT3COAX CBL BNC TO SMC |
1,864 |
|
Datasheet |
LCCA | Bulk | Active | BNC to SMC | BNC Plug | Male | Free Hanging (In-Line) | - | SMC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31201-FT3COAX CBL BNC TO SMB |
3,892 |
|
Datasheet |
LCCA | Bulk | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31231-FT3COAX CBL FAKRA TO FAKRA |
4,871 |
|
Datasheet |
LCCA | Bulk | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31375-FT2COAX CBL SMB TO SMB |
3,681 |
|
Datasheet |
LCCA | Bulk | Active | SMB to SMB | SMB Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31432-FT2COAX CBL SMA TO SMA |
2,789 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|

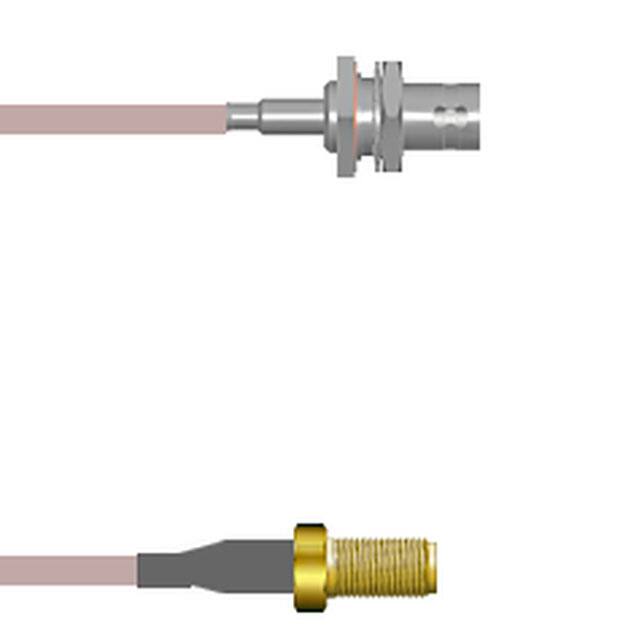

Q-0402V0005002FCOAX CBL BNC TO SMA |
1,902 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
LIS-C9-11716-16716-02500-52CBL ASSY |
4,146 |
|
- |
LISCA | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LCCA30712-3INCOAX CBL SMA TO CABLE |
2,024 |
|
- |
- | Bag | Active | SMA to Cable | SMA Jack | Female | Panel Mount | Flange | Cable (Round) | - | - | - | 3.000" (76.20mm) | LC047TB | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | - | - | - |
|
|
LCCA30800/WH-FT25COAX CBL HD-BNC TO HD-BNC |
4,682 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 4.5 GHz | White | - | -30°C ~ 75°C | - | - |
|
|
LCCA30800/OR-FT25COAX CBL HD-BNC TO HD-BNC |
4,337 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Orange | - | -20°C ~ 75°C | - | - |
|
|
LCCA30081-FT1COAX CBL N-TYPE TO N-TYPE |
2,639 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | LC141TB | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
LCCA30088-FT3COAX CBL TNC TO TNC |
3,184 |
|
- |
- | Bag | Active | TNC to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 36.00" (914.40mm) | LC141TB | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
LCCA30098-FT2COAX CBL N-TYPE TO N-TYPE |
3,007 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 24.00" (609.60mm) | LC141TBJ | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | - | -65°C ~ 150°C | - | - |
|
|
FMCA2565-60COAX CBL 7/16 DIN TO 7/16 DIN |
4,481 |
|
- |
- | Bag | Active | 7/16 DIN to 7/16 DIN | 7/16 Jack | Female | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
