Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCCA31206-FT3COAX CBL BNC TO SMB |
2,170 |
|
Datasheet |
LCCA | Bulk | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31405-FT2COAX CBL SMC TO SMC |
1,915 |
|
Datasheet |
LCCA | Bulk | Active | SMC to SMC | SMC Plug | Male | Free Hanging (In-Line) | - | SMC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31396-FT2COAX CBL BNC TO SMA |
2,068 |
|
Datasheet |
LCCA | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
RF058-06SP3-06SP3-3810COAX CBL N TYPE TO N TYPE |
3,595 |
|
Datasheet |
RF058 | Bulk | Active | N Type to N Type | N Type Plug | Male | Free Hanging (In-Line) | - | N Type Plug | Male | Free Hanging (In-Line) | - | - | RG-58 | - | - | 50 Ohms | 1 GHz | Violet | - | -50°C ~ 90°C | - | - |
|
|
BU-P2249-TW-240COAX CBL BNC TO BNC |
2,769 |
|
Datasheet |
BU | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug (2) | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA31077-FT3COAX CBL RP-SMA TO BNC |
2,062 |
|
Datasheet |
- | Bulk | Active | RP-SMA to BNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31092-FT3COAX CBL SMA TO FAKRA |
1,004 |
|
Datasheet |
- | Bulk | Active | SMA to Fakra | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31496-FT2COAX CBL SMA TO SMB |
1,835 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMB | SMA Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31497-FT2COAX CBL SMA TO SMB |
1,162 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMB | SMA Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
0897619010COAX CBL N-TYPE TO N-TYPE |
3,304 |
|
- |
89761 | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | LMR 195 | 50 Ohms | - | 50 Ohms | 3 GHz | - | - | - | - | - |
|
095-850-269L075COAX CBL BNC TO BNC |
4,036 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 900.0" (22.9m) 75.0' | RG-58 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | -40°C ~ 80°C | - | - |
|
|
LCCA31030-M1COAX CBL SMA TO SMA |
1,270 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
LCCA31064-FT1COAX CBL 4.3/10 TO 4.3/10 |
1,244 |
|
- |
- | Bag | Active | 4.3/10 to 4.3/10 | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 85°C | - | - |
|
|
LCCA31069-FT5COAX CBL 4.3/10 TO N-TYPE |
1,407 |
|
- |
- | Bag | Active | 4.3/10 to N-Type | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -40°C ~ 85°C | - | - |
|
|
LCCA31025-M2COAX CBL N-TYPE TO N-TYPE |
2,303 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 78.7" (2.0m) 6.6' | SPO-500 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30727/BK-FT10COAX CBL 1.0/2.3 TO BNC |
2,296 |
|
- |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Black | - | -30°C ~ 75°C | - | - |
|
|
LCCA31056-FT1COAX CBL 4.1/9.5 TO N-TYPE |
3,573 |
|
- |
- | Bag | Active | 4.1/9.5 to N-Type | 4.1/9.5 Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 12.00" (304.80mm) | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Blue | - | -40°C ~ 125°C | - | - |
|
|
LCCA31045-FT2COAX CBL N-TYPE TO N-TYPE |
1,977 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 24.00" (609.60mm) | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | - |
|
|
LCCA31206-FT4COAX CBL BNC TO SMB |
2,164 |
|
Datasheet |
LCCA | Bulk | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|

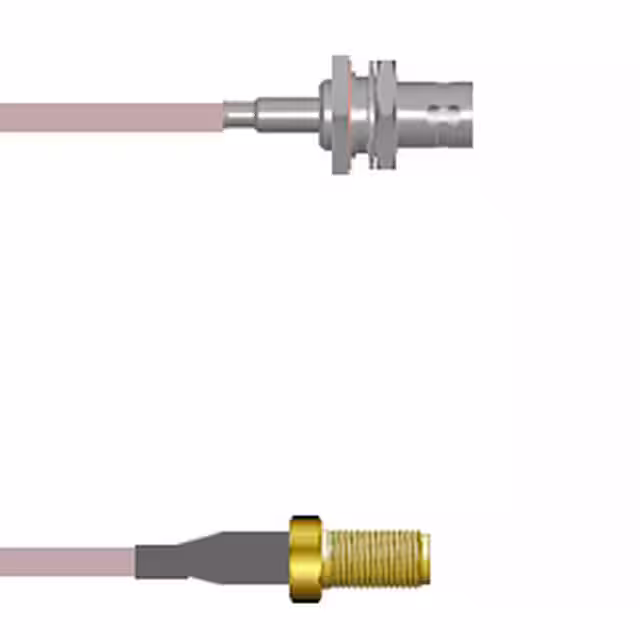

Q-0402V00050.5MCOAX CBL BNC TO SMA |
3,891 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
