Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-192M025COAX CBL BNC TO HD-BNC |
2,619 |
|
Datasheet |
- | Bulk | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
FMCA3260-6COAX CBL SMP TO TNC |
3,873 |
|
- |
- | Bag | Active | SMP to TNC | SMP Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000" (152.40mm) | Hand Formable .047 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
LCCA31253-FT5COAX CBL MCX TO FAKRA |
2,512 |
|
Datasheet |
LCCA | Bulk | Active | MCX to Fakra | MCX Plug | Male | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31119-FT1COAX CBL SMA TO SMA |
3,938 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
095-725-115-240COAX CBL SMPM TO SMPM |
3,158 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug, Right Angle | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
|
LCCA31488-FT3COAX CBL BNC TO SMA |
2,973 |
|
Datasheet |
LCCA | Bulk | Active | BNC to SMA | BNC Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31213-FT6COAX CBL SMB TO SMB |
4,392 |
|
Datasheet |
LCCA | Bulk | Active | SMB to SMB | SMB Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31176-FT6COAX CBL SMC TO SMC |
4,043 |
|
Datasheet |
LCCA | Bulk | Active | SMC to SMC | SMC Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
0732306512CAFAKRA R/A DOWN SEALED JACK Z B |
2,038 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LCCA31405-FT0.5COAX CBL SMC TO SMC |
1,062 |
|
Datasheet |
LCCA | Bulk | Active | SMC to SMC | SMC Plug | Male | Free Hanging (In-Line) | - | SMC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000" (152.40mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31129-FT3COAX CBL SMA TO FAKRA |
2,196 |
|
Datasheet |
- | Bulk | Active | SMA to Fakra | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31128-FT3COAX CBL SMA TO FAKRA |
2,797 |
|
Datasheet |
- | Bulk | Active | SMA to Fakra | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31127-FT3COAX CBL SMA TO FAKRA |
2,395 |
|
Datasheet |
- | Bulk | Active | SMA to Fakra | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31396-FT0.5COAX CBL BNC TO SMA |
2,584 |
|
Datasheet |
LCCA | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000" (152.40mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|

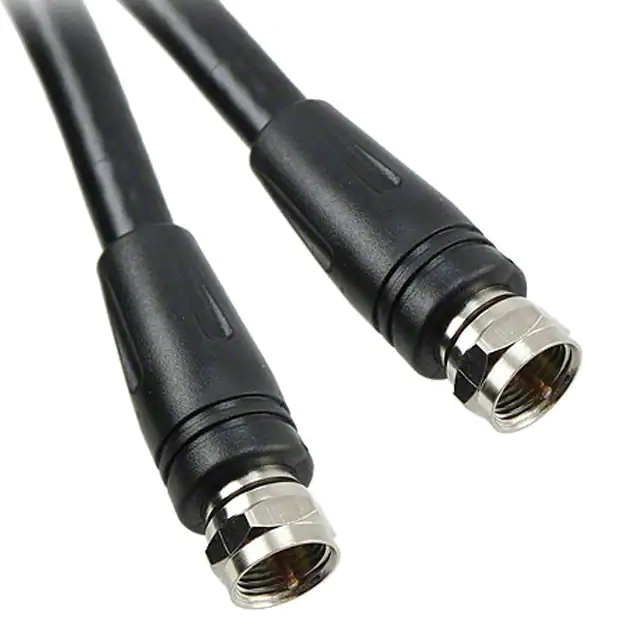

F6-100BCOAX CBL F-TYPE TO F-TYPE |
4,738 |
|
Datasheet |
F | Bulk | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 1200.0" (30.5m) 100.0' | RG-6 | 75 Ohms | - | 73 Ohms | - | Black | Shielded | - | - | - |
|
|
CBL-401-35FT-N1-S2COAX CBL RP-SMA TO N-TYPE |
2,939 |
|
Datasheet |
CBL | Bulk | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 420.0" (10.7m) 35.0' | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-401-35FT-N1-N1COAX CBL N-TYPE TO N-TYPE |
3,482 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 420.0" (10.7m) 35.0' | PFP 400 | - | - | - | - | Black | - | - | - | - |
|
|
LCCA30178-FT3COAX CBL TNC TO TNC |
3,592 |
|
- |
- | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 36.00" (914.40mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 2 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30371-FT3COAX CBL SMA TO SMA |
2,516 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | CA-100 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -20°C ~ 70°C | - | - |
|
|
LCCA30291-FT10COAX CBL SMA TO N-TYPE |
4,805 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
