Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMC00141-50CMCOAX CBL N-TYPE TO N-TYPE |
1,681 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | 5 GHz | Black | - | -40°C ~ 80°C | - | - |
|
|
FMC0108240-12COAX CBL BNC TO N-TYPE |
3,288 |
|
- |
- | Bag | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 2.5 GHz | Black | - | -65°C ~ 85°C | - | - |
|
|
FMCA2716-60COAX CBL BNC TO SMA |
2,400 |
|
- |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 60.0" (1.5m) 5.0' | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | -40°C ~ 80°C | - | - |
|
|
FMCA2573-48COAX CBL 7/16 DIN TO N-TYPE |
1,136 |
|
- |
- | Bag | Active | 7/16 DIN to N-Type | 7/16 Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | SPP-375LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -40°C ~ 125°C | - | - |
|
|
FMC0209174LF-24COAX CBL SMA TO MMCX |
1,481 |
|
- |
- | Bag | Active | SMA to MMCX | SMA Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -65°C ~ 165°C | - | - |
|
|
FMCA2776-48COAX CBL N-TYPE TO N-TYPE |
2,997 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -40°C ~ 80°C | - | - |
|
|
FMC1319315-06COAX CBL SMA TO MMCX |
1,544 |
|
- |
- | Bag | Active | SMA to MMCX | SMA Jack | Female | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | -65°C ~ 165°C | - | - |
|
|
FMCA1213LF-24COAX CBL SMA TO SMA |
1,728 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMC0303100LF-24COAX CBL TNC TO TNC |
3,008 |
|
- |
- | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMC0408174-24COAX CBL BNC TO SMA |
4,858 |
|
- |
- | Bag | Active | BNC to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
FMC0202988-09COAX CBL SMA TO SMA |
2,267 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-405 | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Copper | - | - | - | - |
|
|
FMC0416316-12COAX CBL SMA TO SMB |
3,759 |
|
- |
- | Bag | Active | SMA to SMB | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
FMCA2726-48COAX CBL SMA TO SMA |
2,995 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | - | - | - | - |
|
|
FMCA2691-200CMCOAX CBL BNC TO SMA |
2,699 |
|
- |
- | Bag | Active | BNC to SMA | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | - | - | - |
|
Q-0D0040005001FCOAX CBL BNC TO BNC |
3,510 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
LCCA31189-FT3COAX CBL BNC TO MCX |
4,453 |
|
Datasheet |
LCCA | Bulk | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31185-FT3COAX CBL BNC TO SMC |
2,738 |
|
Datasheet |
LCCA | Bulk | Active | BNC to SMC | BNC Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
ASMN2000A058L13COAX CBL SMA TO N-TYPE |
3,329 |
|
Datasheet |
- | Bulk | Active | SMA to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 787.4" (20.0m) 65.6' | LLC200A | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|

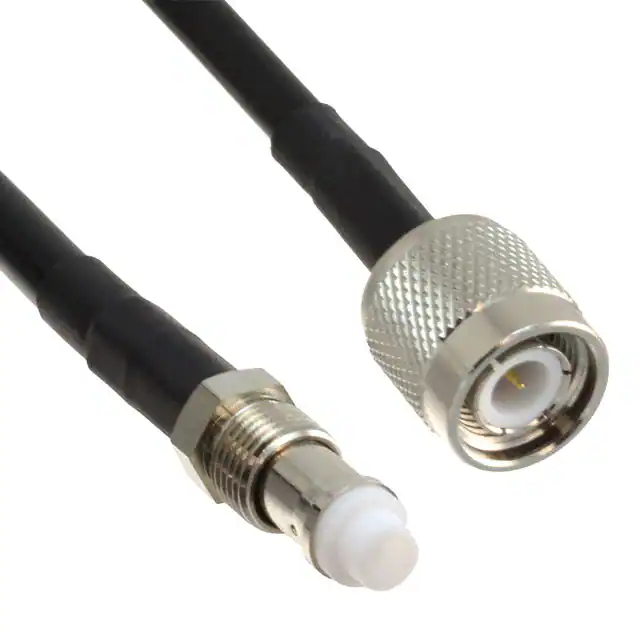

ASMZG2000F058L13COAX CBL FME TO TNC |
3,431 |
|
Datasheet |
- | Bulk | Active | FME to TNC | FME Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 787.4" (20.0m) 65.6' | LLC200A | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
LCCA31407-FT2COAX CBL SMC TO SMC |
2,171 |
|
Datasheet |
LCCA | Bulk | Active | SMC to SMC | SMC Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
