Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCCA31225-FT1COAX CBL FAKRA TO FAKRA |
3,761 |
|
Datasheet |
LCCA | Bulk | Active | Fakra to Fakra | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31357-FT1COAX CBL BNC TO MCX |
4,289 |
|
Datasheet |
LCCA | Bulk | Active | BNC to MCX | BNC Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|

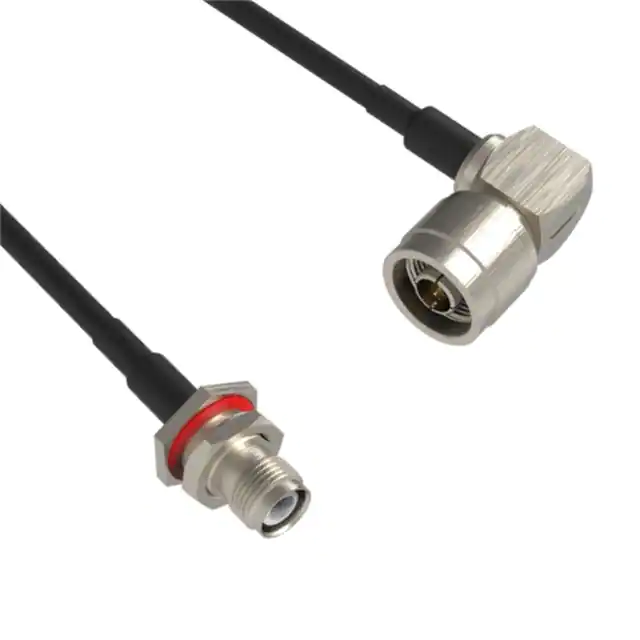

095-909-189-048COAX CBL RP-TNC TO N-TYPE |
1,162 |
|
Datasheet |
- | Bag | Active | RP-TNC to N-Type | RP-TNC Plug | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
|
|
LCCA30709-6INCOAX CBL SMA TO CABLE |
3,946 |
|
- |
- | Bag | Active | SMA to Cable | SMA Jack | Female | Panel Mount | Flange | Cable (Round) | - | - | - | 6.000" (152.40mm) | LC047TB | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | - | - | - |
|
|
LCCA30710-1FTCOAX CBL SMA TO CABLE |
3,244 |
|
- |
- | Bag | Active | SMA to Cable | SMA Jack | Female | Panel Mount | Flange | Cable (Round) | - | - | - | 12.00" (304.80mm) | LC047TB | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | - | - | - |
|
|
LCCA30097-FT1.5COAX CBL N-TYPE TO N-TYPE |
3,382 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LC141TBJ | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | - | -65°C ~ 150°C | - | - |
|
|
FMCA2567-100CMCOAX CBL 7/16 DIN TO N-TYPE |
2,178 |
|
- |
- | Bag | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | SPO-375 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMCA2556-50CMCOAX CBL 7/16 DIN TO N-TYPE |
3,744 |
|
- |
- | Bag | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMCA2565-12COAX CBL 7/16 DIN TO 7/16 DIN |
3,188 |
|
- |
- | Bag | Active | 7/16 DIN to 7/16 DIN | 7/16 Jack | Female | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMCA2546-24COAX CBL N-TYPE TO N-TYPE |
3,707 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMCA1090-12COAX CBL BNC TO BNC |
3,974 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 200 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMCA2552-100CMCOAX CBL 7/16 DIN TO N-TYPE |
3,747 |
|
- |
- | Bag | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | SPF-375 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMCA2540-12COAX CBL 7/16 DIN TO N-TYPE |
1,812 |
|
- |
- | Bag | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|

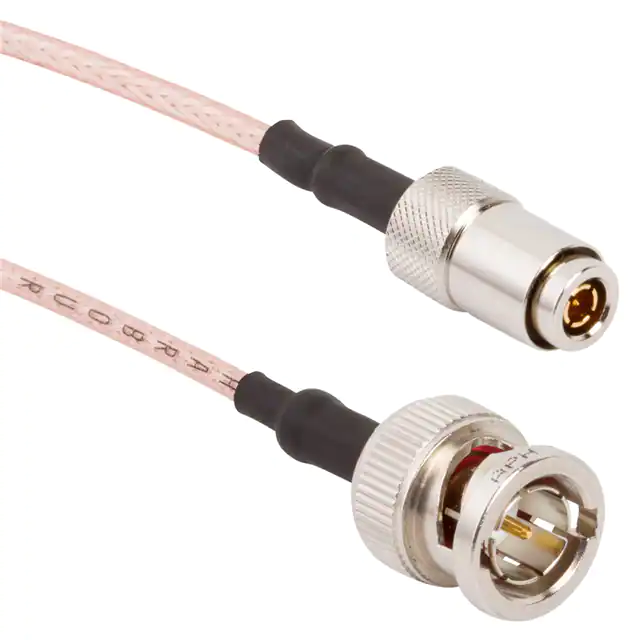

095-850-201-240COAX CBL 1.0/2.3 TO BNC |
4,823 |
|
Datasheet |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | RG-179 | 75 Ohms | - | 75 Ohms | 4 GHz | Copper | - | - | - | - |
|
095-902-507-048COAX CBL SMA TO SMA |
1,677 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 200 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | - | - | - |
|
|
IJ5C-06-0400-S-S-2COAX CBL IJ5C TO CABLE |
4,919 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to Cable | IJ5C Jack | Female | Free Hanging (In-Line) | - | Cable (Round), Stripped & Tinned | - | - | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
|
FMCA2734/YW-36COAX CBL 1.0/2.3 TO HD-BNC |
2,564 |
|
- |
- | Bag | Active | 1.0/2.3 to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Yellow | - | -30°C ~ 75°C | - | - |
|
|
FMCA2734/BK-36COAX CBL 1.0/2.3 TO HD-BNC |
1,064 |
|
- |
- | Bag | Active | 1.0/2.3 to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Black | - | -30°C ~ 75°C | - | - |
|
|
FMCA2734/GR-36COAX CBL 1.0/2.3 TO HD-BNC |
4,629 |
|
- |
- | Bag | Active | 1.0/2.3 to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1855A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Green | - | -30°C ~ 75°C | - | - |
|
|
PT40035NNCOAX CBL N-TYPE TO N-TYPE |
2,953 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 420.0" (10.7m) 35.0' | ATX 400 | - | - | - | - | Black | - | - | - | - |
