Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCCA31345-FT5COAX CBL BNC TO BNC |
4,134 |
|
Datasheet |
LCCA | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31318-FT5COAX CBL SMA TO SMB |
4,421 |
|
Datasheet |
LCCA | Bulk | Active | SMA to SMB | SMA Plug | Male | Free Hanging (In-Line) | - | SMB Jack | Female | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
095-725-112-180COAX CBL SMPM TO SMPM |
4,705 |
|
Datasheet |
- | Bulk | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
095-850-193-144COAX CBL BNC TO HD-BNC |
1,260 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - | - | - |
|
|
095-902-506M200COAX CBL SMA TO SMA |
3,186 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | LMR 200 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | - | - | - |
|
|
CBL-400-44FT-N9-N9COAX CBL N-TYPE TO N-TYPE |
3,150 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 528.0" (13.4m) 44.0' | PFP 400 | - | - | - | - | Black | - | - | - | - |
|

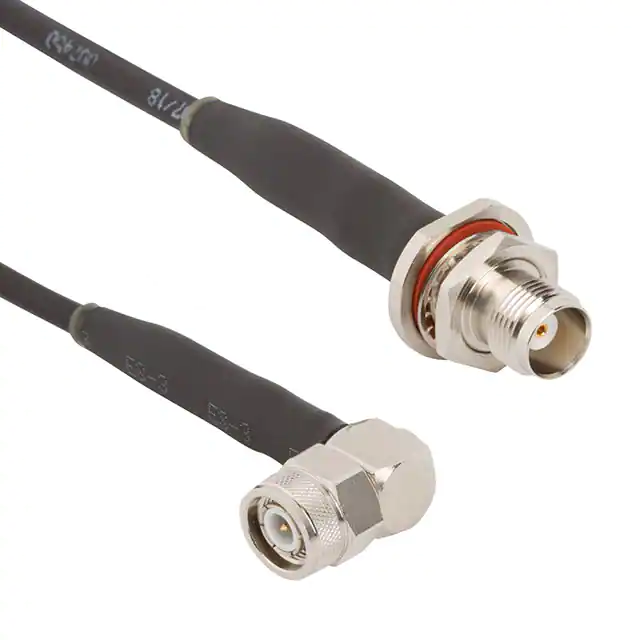

095-850-222M400COAX CBL TNC TO TNC |
1,194 |
|
Datasheet |
ARC | Bag | Active | TNC to TNC | TNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Panel Mount | Bulkhead - Front Side Nut | 157.5" (4.0m) 13.1' | LMR 200 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
LCCA30236-FT4COAX CBL SMA TO TNC |
3,520 |
|
- |
- | Bag | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 200 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30719-3INCOAX CBL SMA TO CABLE |
1,017 |
|
- |
- | Bag | Active | SMA to Cable | SMA Jack | Female | Panel Mount | Flange | Cable (Round) | - | - | - | 3.000" (76.20mm) | LC085TB | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | - | - | - |
|
|
LCCA30280-FT2COAX CBL N-TYPE TO TNC |
1,527 |
|
- |
- | Bag | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 24.00" (609.60mm) | LMR 240 DB | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30219-FT3COAX CBL N-TYPE TO N-TYPE |
3,584 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 600 DB | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30167-FT5COAX CBL TNC TO TNC |
4,338 |
|
- |
- | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 200 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CA4NMRTF020COAX CBL RP-TNC TO N-TYPE |
1,939 |
|
- |
- | Bag | Active | RP-TNC to N-Type | RP-TNC Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | LMR 400 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
LCCA30352-FT1COAX CBL 4.3/10 TO N-TYPE |
3,682 |
|
- |
- | Bag | Active | 4.3/10 to N-Type | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 600 DB | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA31069-FT1COAX CBL 4.3/10 TO N-TYPE |
3,595 |
|
- |
- | Bag | Active | 4.3/10 to N-Type | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFT-402LF | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -40°C ~ 85°C | - | - |
|
|
LCCA30189-FT5COAX CBL 4.3/10 TO 4.3/10 |
1,927 |
|
- |
- | Bag | Active | 4.3/10 to 4.3/10 | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CTL3B-10COAX CBL BNC TO BNC |
1,853 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug (3) | Male | Free Hanging (In-Line) | - | BNC Plug (3) | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | - | 75 Ohms | 75 Ohms | 75 Ohms | - | Gray | - | - | - | - |
|
|
LCCA30269-FT6COAX CBL 4.3/10 TO N-TYPE |
2,485 |
|
- |
- | Bag | Active | 4.3/10 to N-Type | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 72.0" (1.8m) 6.0' | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30211-FT1COAX CBL 4.3/10 TO 4.3/10 |
1,864 |
|
- |
- | Bag | Active | 4.3/10 to 4.3/10 | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 600 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30096-FT2COAX CBL SMA TO SMA |
4,865 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | LC141TBJ | 50 Ohms | 50 Ohms | 50 Ohms | 10 GHz | Black | - | -65°C ~ 150°C | - | - |
