Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-160M500COAX CBL HD-BNC TO HD-BNC |
1,251 |
|
Datasheet |
- | Bulk | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | Belden 1694A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
095-902-507M050COAX CBL SMA TO SMA |
2,639 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | LMR 200 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | - | - | - |
|
095-909-176-048COAX CBL N-TYPE TO N-TYPE |
4,445 |
|
Datasheet |
ARC | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | LMR 240 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
LCCA31257-FT3COAX CBL MCX TO FAKRA |
1,307 |
|
Datasheet |
LCCA | Bulk | Active | MCX to Fakra | MCX Plug | Male | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31037-FT1COAX CBL SMA TO SMA |
4,200 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 12.00" (304.80mm) | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -40°C ~ 125°C | - | - |
|
|
LIS-C9-11431X-11431X-02000-52CBL ASSY |
4,080 |
|
- |
LISCA | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

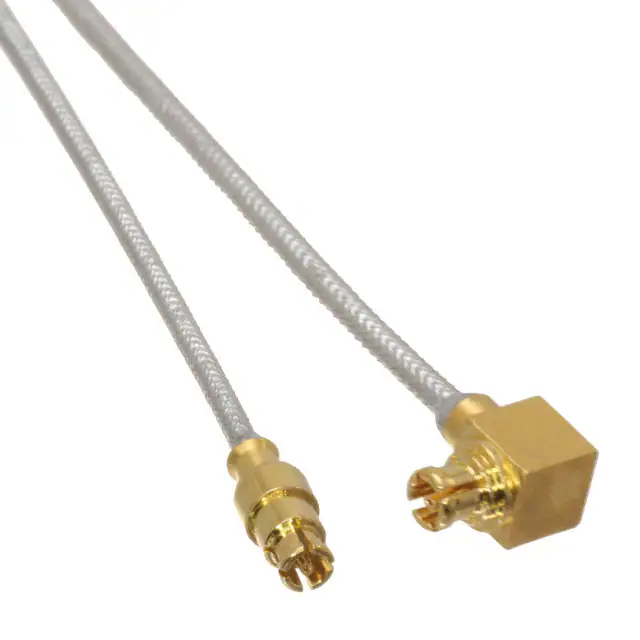

095-725-115M025COAX CBL SMPM TO SMPM |
2,800 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
|
6720005270COAX CBL SMA TO N-TYPE |
4,759 |
|
- |
- | Bulk | Active | SMA to N-Type | SMA Plug | Male | - | - | N-Type Plug | Male | - | - | 12.00" (304.80mm) | PFP 195 | 50 Ohms | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA31215-FT2COAX CBL SMB TO SMB |
2,398 |
|
Datasheet |
LCCA | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA30436-FT1.5COAX CBL SMA TO TNC |
4,714 |
|
- |
- | Bag | Active | SMA to TNC | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LC141TB | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
LCCA30368-FT3COAX CBL SMA TO TNC |
3,374 |
|
- |
- | Bag | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | TNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
LCCA30564-FT1.5COAX CBL SMA TO TNC |
1,730 |
|
- |
- | Bag | Active | SMA to TNC | SMA Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LC085TB | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
LCCA30500-FT1.5COAX CBL SMA TO TNC |
1,529 |
|
- |
- | Bag | Active | SMA to TNC | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LC141TBJ | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -65°C ~ 150°C | - | - |
|
|
LCCA30566-FT1COAX CBL SMA TO TNC |
1,453 |
|
- |
- | Bag | Active | SMA to TNC | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LC085TB | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
LCCA30492-FT1.5COAX CBL SMA TO TNC |
1,679 |
|
- |
- | Bag | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | TNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LC141TBJ | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -65°C ~ 150°C | - | - |
|
|
LCCA30426-FT1.5COAX CBL SMA TO TNC |
3,038 |
|
- |
- | Bag | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | TNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LC141TB | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
LCCA30066-FT6COAX CBL MMCX TO MMCX |
1,155 |
|
Datasheet |
- | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 72.0" (1.8m) 6.0' | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | -55°C ~ 200°C | - | - |
|
|
LCCA30434-FT1.5COAX CBL SMA TO TNC |
3,658 |
|
- |
- | Bag | Active | SMA to TNC | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LC141TB | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
LCCA30356-FT2COAX CBL SMA TO N-TYPE |
1,829 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Black | - | - | - | - |
|
|
LCCA30064-FT10COAX CBL MCX TO MCX |
1,169 |
|
Datasheet |
- | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 120.0" (3.0m) 10.0' | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | -55°C ~ 200°C | - | - |
