Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IJ5C-04-0600-S-S-2COAX CBL IJ5C TO CABLE |
3,916 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to Cable | IJ5C Jack | Female | Free Hanging (In-Line) | - | Cable (Round), Stripped & Tinned | - | - | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
|
LCCA31183-FT3COAX CBL BNC TO BNC |
2,570 |
|
Datasheet |
LCCA | Bulk | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31203-FT3COAX CBL BNC TO SMB |
4,104 |
|
Datasheet |
LCCA | Bulk | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|

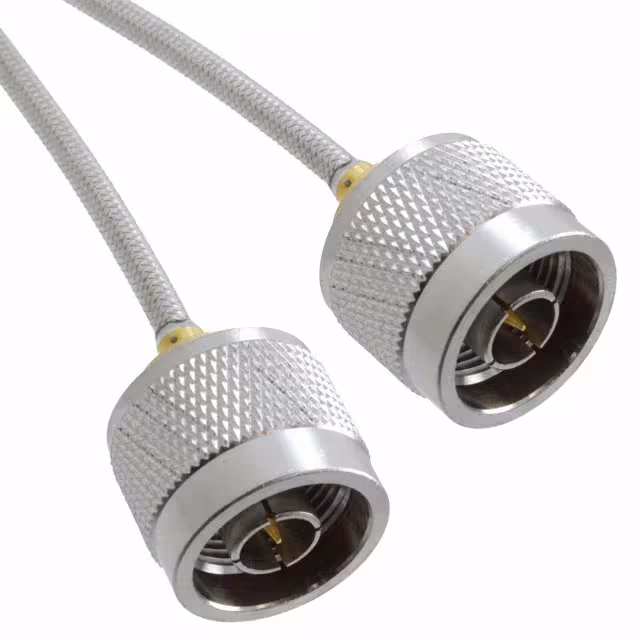

175101-R2-24.00COAX CBL N-TYPE TO N-TYPE |
3,811 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | Hand Formable .141 | - | - | 50 Ohms | - | Gray | - | - | - | - |
|
|
786196-0R610RF CABLE, MMPX (M) TO BNC (M), 0 |
1,742 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
095-850-201M500COAX CBL 1.0/2.3 TO BNC |
4,279 |
|
Datasheet |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | RG-179 | 75 Ohms | - | 75 Ohms | 4 GHz | Copper | - | - | - | - |
|
|
095-902-506M075COAX CBL SMA TO SMA |
3,168 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | LMR 200 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | - | - | - |
|
|
LCCA31343-FT5COAX CBL BNC TO BNC |
2,006 |
|
Datasheet |
LCCA | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31344-FT5COAX CBL BNC TO BNC |
3,526 |
|
Datasheet |
LCCA | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
095-725-112-080COAX CBL SMPM TO SMPM |
2,612 |
|
Datasheet |
- | Bulk | Active | SMPM to SMPM | SMPM Plug | Female | Free Hanging (In-Line) | - | SMPM Plug | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 18 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
|
LCCA30367-FT4COAX CBL SMA TO N-TYPE |
1,482 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
LCCA30365-FT4COAX CBL SMA TO N-TYPE |
2,573 |
|
- |
- | Bag | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Black | - | - | - | - |
|
|
LCCA30628-FT1.5COAX CBL SMA TO TNC |
3,421 |
|
- |
- | Bag | Active | SMA to TNC | SMA Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | LC085TBJ | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
LCCA30568-FT1COAX CBL SMA TO TNC |
4,387 |
|
- |
- | Bag | Active | SMA to TNC | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LC085TB | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
LCCA30622-FT1COAX CBL SMA TO TNC |
2,672 |
|
- |
- | Bag | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LC085TBJ | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
LCCA30378-FT5COAX CBL SMA TO TNC |
3,200 |
|
- |
- | Bag | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | CA-100 | 50 Ohms | 50 Ohms | 50 Ohms | 500 MHz | Black | - | -20°C ~ 70°C | - | - |
|
|
LCCA30372-FT4COAX CBL SMA TO SMA |
2,983 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | CA-100 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | -20°C ~ 70°C | - | - |
|
|
LCCA30554-FT1COAX CBL SMA TO TNC |
4,318 |
|
- |
- | Bag | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LC085TB | - | - | - | 6 GHz | Silver | - | - | - | - |
|
|
LCCA30143-FT2COAX CBL TNC TO TNC |
3,638 |
|
- |
- | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LC085TBJ | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
CCSR188A-1.5COAX CBL SMA TO SMA |
4,240 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-188A | 50 Ohms | - | 50 Ohms | - | White | - | - | - | - |
