Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBL-195-30M-N1-N1COAX CBL N-TYPE TO N-TYPE |
2,197 |
|
Datasheet |
CBL | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1181.1" (30.0m) 98.4' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-195-30M-N1-S1COAX CBL SMA TO N-TYPE |
2,801 |
|
Datasheet |
CBL | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1181.1" (30.0m) 98.4' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
LCCA30229-FT3COAX CBL N-TYPE TO TNC |
2,414 |
|
- |
- | Bag | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | TNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 195 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30193-FT1COAX CBL N-TYPE TO N-TYPE |
2,669 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CA-QPRQPA010COAX CBL QMA TO QMA |
1,101 |
|
- |
- | Bag | Active | QMA to QMA | QMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | QMA Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | LMR 195 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
IJ5C-04-0200-S-D-NUS-1COAX CBL IJ5C TO IJ5C |
4,499 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to IJ5C | IJ5C Jack | Female | Free Hanging (In-Line) | - | IJ5C Jack | Female | Free Hanging (In-Line) | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
|
LCCA30801/OR-FT3COAX CBL 1.0/2.3 TO HD-BNC |
2,192 |
|
- |
- | Bag | Active | 1.0/2.3 to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Orange | - | -20°C ~ 75°C | - | - |
|
|
LCCA30801/VL-FT3COAX CBL 1.0/2.3 TO HD-BNC |
4,462 |
|
- |
- | Bag | Active | 1.0/2.3 to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 60 GHz | Violet | - | -30°C ~ 75°C | - | - |
|
|
LCCA30801/RD-FT3COAX CBL 1.0/2.3 TO HD-BNC |
2,736 |
|
- |
- | Bag | Active | 1.0/2.3 to HD-BNC | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Red | - | -20°C ~ 75°C | - | - |
|
|
LCCA30801/WH-FT3COAX CBL 1.0/2.3 TO HD-BNC |
3,295 |
|
- |
- | Bag | Active | 1.0/2.3 to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 4.5 GHz | White | - | -30°C ~ 75°C | - | - |
|
|
LCCA30801/YW-FT3COAX CBL 1.0/2.3 TO HD-BNC |
3,268 |
|
- |
- | Bag | Active | 1.0/2.3 to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Yellow | - | -20°C ~ 75°C | - | - |
|
095-850-201-168COAX CBL 1.0/2.3 TO BNC |
1,454 |
|
Datasheet |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 168.0" (4.3m) 14.0' | RG-179 | 75 Ohms | - | 75 Ohms | 4 GHz | Copper | - | - | - | - |
|
|
LCCA30680-FT1.5COAX CBL N-TYPE TO TNC |
4,468 |
|
- |
- | Bag | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 18.00" (457.20mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
|
CC174S-1.5HRCOAX CBL SMA TO SMA |
4,980 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | - | - | 50 Ohms | - | Black | - | - | - | - |
|
|
FMC0308058-24COAX CBL BNC TO TNC |
2,495 |
|
- |
- | Bag | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -65°C ~ 165°C | - | - |
|
|
LCCA31387-FT2COAX CBL BNC TO BNC |
4,534 |
|
Datasheet |
LCCA | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|

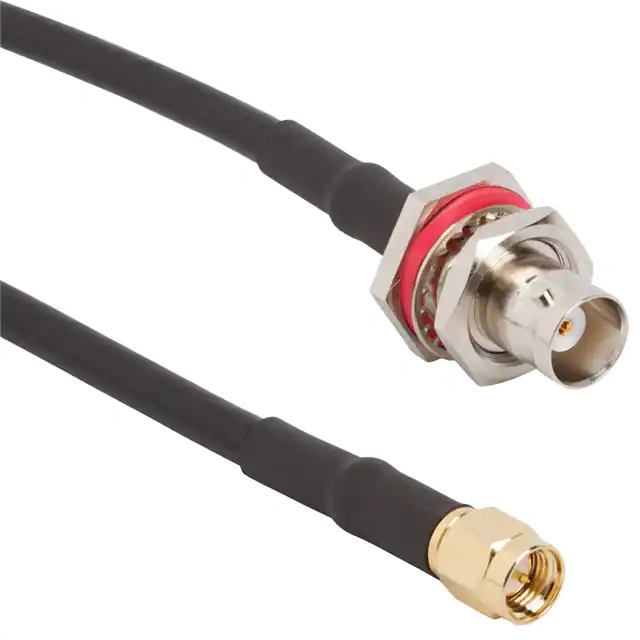

095-850-246M300COAX CBL BNC TO SMA |
2,187 |
|
Datasheet |
- | Bulk | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
LCCA31245-FT1COAX CBL FAKRA TO FAKRA |
4,334 |
|
Datasheet |
LCCA | Bulk | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31249-FT1COAX CBL FAKRA TO FAKRA |
2,109 |
|
Datasheet |
LCCA | Bulk | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
|
LCCA31221-FT1COAX CBL FAKRA TO FAKRA |
4,544 |
|
Datasheet |
LCCA | Bulk | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
