Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

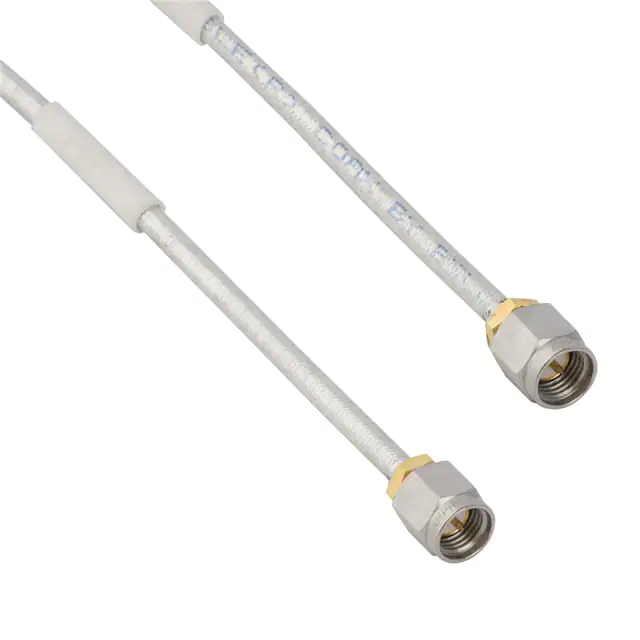

095-902-450-036COAX CBL SMA TO SMA |
1,299 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | - | - | - | - |
|
095-725-127-005COAX CBL SMPM TO SMPM |
1,628 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Plug | Male | Free Hanging (In-Line) | - | SMPM Plug | Male | Free Hanging (In-Line) | - | 5.000" (127.00mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
|
095-725-128M010COAX CBL SMPM TO SMPM |
3,240 |
|
Datasheet |
- | Bag | Active | SMPM to SMPM | SMPM Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMPM Plug | Male | Free Hanging (In-Line) | - | 3.940" (100.08mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | - | -65°C ~ 165°C | - | - |
|
|
RF058-06SP2-06SP2-0500COAX CBL N TYPE TO N TYPE |
2,319 |
|
Datasheet |
RF058 | Bulk | Active | N Type to N Type | N Type Plug | Male | Free Hanging (In-Line) | - | N Type Plug | Male | Free Hanging (In-Line) | - | - | RG-58 | - | - | 50 Ohms | 1 GHz | Violet | - | -50°C ~ 90°C | - | - |
|
|
LCCA30799/GR-FT3COAX CBL 1.0/2.3 TO BNC |
4,876 |
|
- |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Green | - | -20°C ~ 75°C | - | - |
|
|
LCCA30799/GY-FT3COAX CBL 1.0/2.3 TO BNC |
4,423 |
|
- |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Gray | - | -20°C ~ 75°C | - | - |
|
|
LCCA30799/BR-FT3COAX CBL 1.0/2.3 TO BNC |
2,489 |
|
- |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Brown | - | -20°C ~ 75°C | - | - |
|
|
LCCA30799/RD-FT3COAX CBL 1.0/2.3 TO BNC |
2,175 |
|
- |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Red | - | -20°C ~ 75°C | - | - |
|
|
LCCA30799/VL-FT3COAX CBL 1.0/2.3 TO BNC |
2,410 |
|
- |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 60 GHz | Violet | - | -30°C ~ 75°C | - | - |
|
|
LCCA30799/WH-FT3COAX CBL 1.0/2.3 TO BNC |
4,523 |
|
- |
- | Bag | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 4.5 GHz | White | - | -30°C ~ 75°C | - | - |
|
|
LCCA30728/BL-FT6COAX CBL HD-BNC TO HD-BNC |
2,388 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Blue | - | -30°C ~ 75°C | - | - |
|
|
LCCA30728/OR-FT6COAX CBL HD-BNC TO HD-BNC |
1,372 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Orange | - | -30°C ~ 75°C | - | - |
|
|
LCCA30728/YW-FT6COAX CBL HD-BNC TO HD-BNC |
2,695 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Yellow | - | -30°C ~ 75°C | - | - |
|
|
LCCA30728/WH-FT6COAX CBL HD-BNC TO HD-BNC |
4,360 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | White | - | -30°C ~ 75°C | - | - |
|
|
FMCA2604/RD-72COAX CBL HD-BNC TO HD-BNC |
4,717 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Red | - | -30°C ~ 75°C | - | - |
|
|
FMCA2604/YW-72COAX CBL HD-BNC TO HD-BNC |
1,506 |
|
- |
- | Bag | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Yellow | - | -30°C ~ 75°C | - | - |
|
175101-07-12.00COAX CBL N-TYPE TO N-TYPE |
4,379 |
|
Datasheet |
- | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-142 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
095-909-190-036COAX CBL RP-TNC TO N-TYPE |
4,378 |
|
Datasheet |
- | Bag | Active | RP-TNC to N-Type | RP-TNC Plug | Female | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
|
|
RF058-06SP2-06SP2-0508COAX CBL N TYPE TO N TYPE |
3,753 |
|
Datasheet |
RF058 | Bulk | Active | N Type to N Type | N Type Plug | Male | Free Hanging (In-Line) | - | N Type Plug | Male | Free Hanging (In-Line) | - | - | RG-58 | - | - | 50 Ohms | 1 GHz | Violet | - | -50°C ~ 90°C | - | - |
|
|
LCCA30726/BK-FT6COAX CBL BNC TO HD-BNC |
4,631 |
|
- |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Black | - | -30°C ~ 75°C | - | - |
