Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCSC316-2COAX CBL SMC TO SMC |
1,735 |
|
- |
- | Bag | Active | SMC to SMC | SMC Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Tan | - | 165°C | - | - |
|
|
LCCA30264-FT3COAX CBL BNC TO N-TYPE |
4,939 |
|
- |
- | Bag | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 240 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30201-FT5COAX CBL BNC TO BNC |
2,493 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | LMR 400 DB | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30204-FT3COAX CBL N-TYPE TO N-TYPE |
4,649 |
|
- |
- | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 400 DB | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|

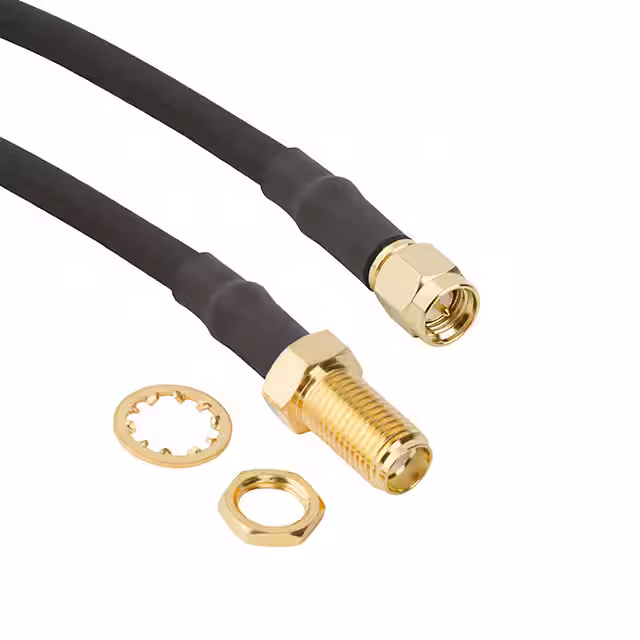

095-902-477-036COAX CBL SMA TO SMA |
4,634 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
RF058-06SP2-01SP1-1500COAX CBL SMA TO N-TYPE |
2,766 |
|
Datasheet |
RF058 | Bulk | Active | SMA to N Type | SMA Plug | Male | Free Hanging (In-Line) | - | N Type Plug | Male | Free Hanging (In-Line) | - | - | RG-58 | - | - | 50 Ohms | 1 GHz | Violet | - | -50°C ~ 90°C | - | - |
|
|
LCCA30708-9INCOAX CBL SMA TO CABLE |
2,884 |
|
- |
- | Bag | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 9.000" (228.60mm) | LC047TB | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | - | - | - |
|
|
LCCA30707-3INCOAX CBL SMA TO CABLE |
1,120 |
|
- |
- | Bag | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.000" (76.20mm) | LC047TB | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | - | - | - |
|
|
LCCA30713-1FTCOAX CBL SMA TO CABLE |
3,950 |
|
- |
- | Bag | Active | SMA to Cable | SMA Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 12.00" (304.80mm) | LC047TB | 50 Ohms | 50 Ohms | 50 Ohms | 20 GHz | - | - | - | - | - |
|
|
LCCA30714-6INCOAX CBL SMA TO CABLE |
3,390 |
|
- |
- | Bag | Active | SMA to Cable | SMA Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 6.000" (152.40mm) | LC047TB | 50 Ohms | 50 Ohms | 50 Ohms | 20 GHz | - | - | - | - | - |
|
|
LCCA30189-FT1COAX CBL 4.3/10 TO 4.3/10 |
4,100 |
|
- |
- | Bag | Active | 4.3/10 to 4.3/10 | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LCCA30714-1FTCOAX CBL SMA TO CABLE |
1,330 |
|
- |
- | Bag | Active | SMA to Cable | SMA Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 12.00" (304.80mm) | LC047TB | 50 Ohms | 50 Ohms | 50 Ohms | 20 GHz | - | - | - | - | - |
|
|
LCCA30714-9INCOAX CBL SMA TO CABLE |
1,350 |
|
- |
- | Bag | Active | SMA to Cable | SMA Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 9.000" (228.60mm) | LC047TB | 50 Ohms | 50 Ohms | 50 Ohms | 20 GHz | - | - | - | - | - |
|
|
LCCA30798/BK-FT6COAX CBL BNC TO HD-BNC |
1,759 |
|
- |
- | Bag | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Black | - | -20°C ~ 75°C | - | - |
|
|
LCCA30713-9INCOAX CBL SMA TO CABLE |
3,748 |
|
- |
- | Bag | Active | SMA to Cable | SMA Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 9.000" (228.60mm) | LC047TB | 50 Ohms | 50 Ohms | 50 Ohms | 20 GHz | - | - | - | - | - |
|
|
LCCA30713-3INCOAX CBL SMA TO CABLE |
4,463 |
|
- |
- | Bag | Active | SMA to Cable | SMA Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.000" (76.20mm) | LC047TB | 50 Ohms | 50 Ohms | 50 Ohms | 20 GHz | - | - | - | - | - |
|
|
CA-FMEJBMA010COAX CBL BNC TO FME |
2,073 |
|
- |
- | Bag | Active | BNC to FME | BNC Plug | Male | Free Hanging (In-Line) | - | FME Jack | Female | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | LMR 195 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
LCCA30314-FT3COAX CBL SMA TO TNC |
3,977 |
|
- |
- | Bag | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 36.00" (914.40mm) | LMR 400 DB | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
CCTN58P-2.5BCOAX CBL BNC TO BNC |
4,664 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 30.00" (762.00mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | - | White | - | - | - | - |
|
|
LCCA30732/BL-FT6COAX CBL 1.0/2.3 TO HD-BNC |
2,389 |
|
- |
- | Bag | Active | 1.0/2.3 to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Blue | - | -30°C ~ 75°C | - | - |
